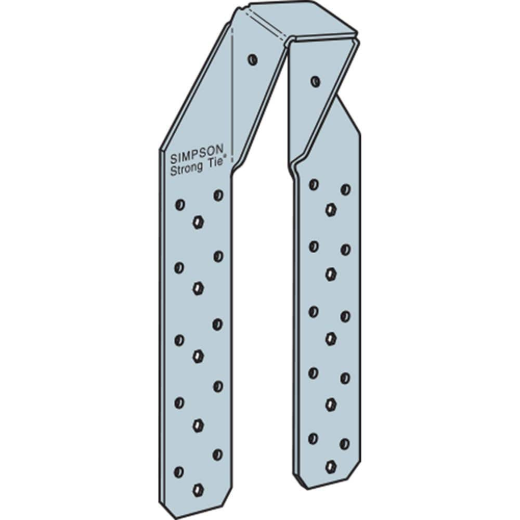

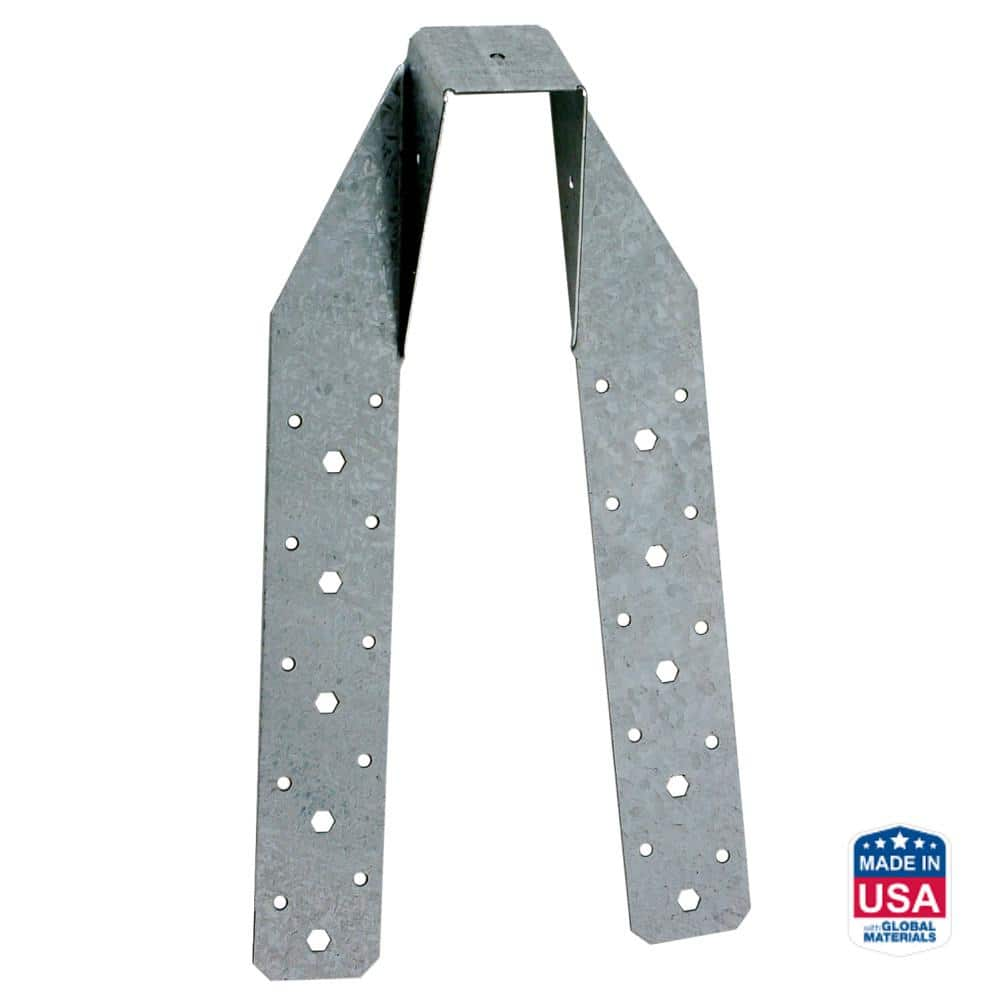

Simpson Strong-Tie H16 Hurricane Tie

Mfr.: Simpson Strong-Tie
Item #: I093029
Mfr. #: H16
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $8.52
i h h

Description

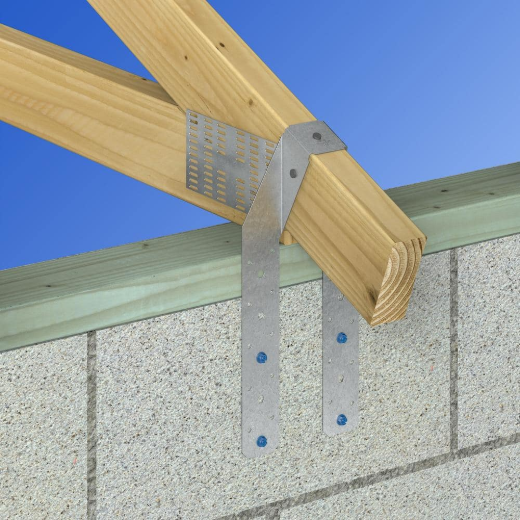

The Simpson Strong-Tie H16 Hurricane Tie is engineered as a high-capacity connector designed to provide a secure link between trusses or rafters and the top of wall plates in wood framing. Its presloped seat simplifies installation and enhances performance by minimizing deflection during high-wind events. The extended straps offer increased versatility, accommodating a truss heel height up to 13 1/2 inches, making it suitable for various construction scenarios requiring robust wind and seismic resistance. This tie is crucial for ensuring the structural integrity of buildings in areas prone to extreme weather.
  • High-capacity wind resistance
  • Presloped seat for optimal fit

Features

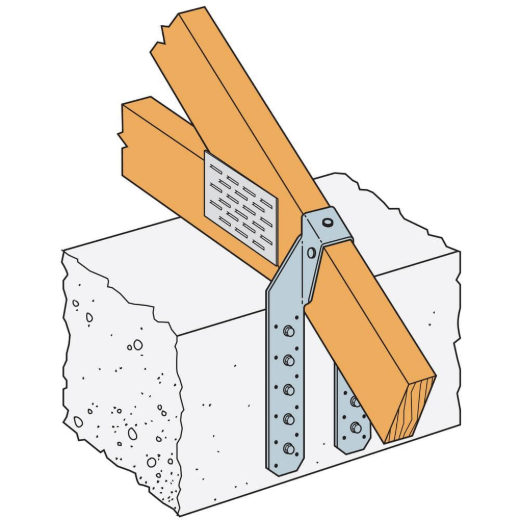

  • Connects trusses to top of wall plates in wood framing walls.
  • Long straps increase versatility for various truss heel heights.
  • Presloped at 5/12, acceptable for truss/rafter pitch of 3/12 to 7/12.
  • Minimum heel height of 4 inch.

Includes

  • 1 H16 Hurricane Tie
Products specifications
Gauge 18ga
Finish G90 Galvanized
Dimensions 11-11/16 inch x 1-5/8 inch
Pitch 5:12 preslope
*
*
*
