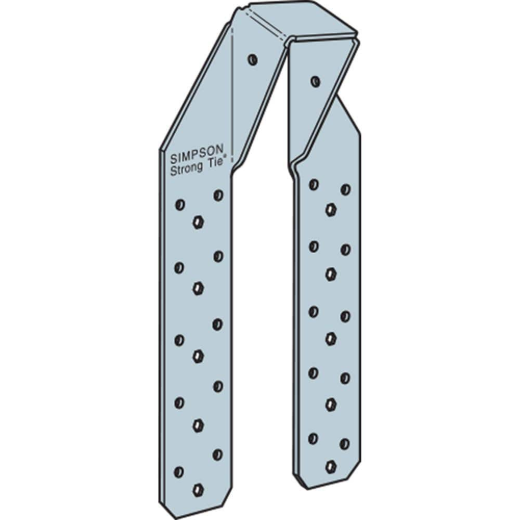

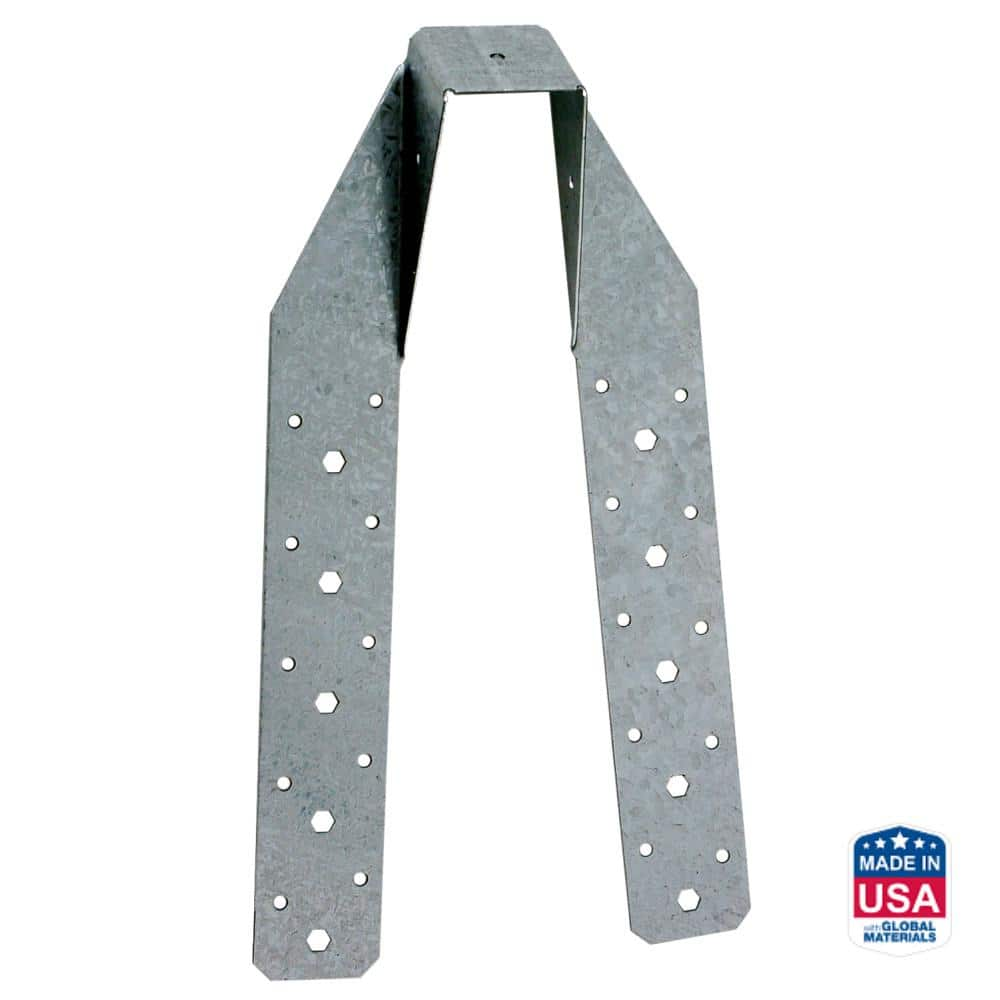

Simpson Strong-Tie H16S Hurricane Tie

Mfr.: Simpson Strong-Tie
Item #: I093032
Mfr. #: H16S
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $7.17
i h h

Description

The Simpson Strong-Tie H16S Hurricane Tie is engineered for high-capacity wind resistance, providing a crucial connection between trusses or rafters and wall plates. Its design ensures a secure and robust attachment, essential for resisting uplift and lateral forces during hurricanes and seismic events. Featuring a presloped seat, the H16S simplifies installation and enhances performance by minimizing deflection. This tie is an ideal solution for wood truss to masonry wall connections, especially in retrofit applications, offering reliable protection for structures in high-wind regions.
  • High-capacity wind resistance
  • Presloped seat for easier installation and performance

Features

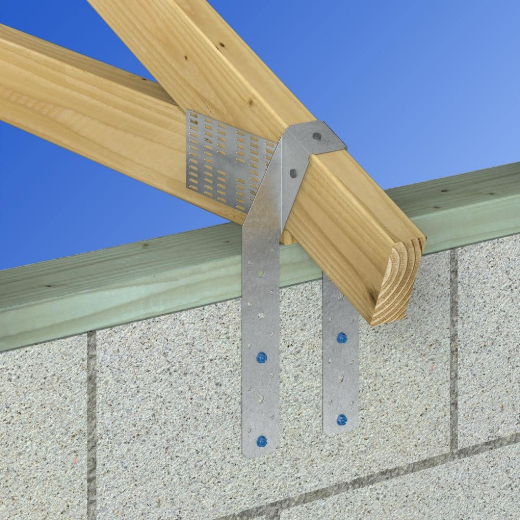

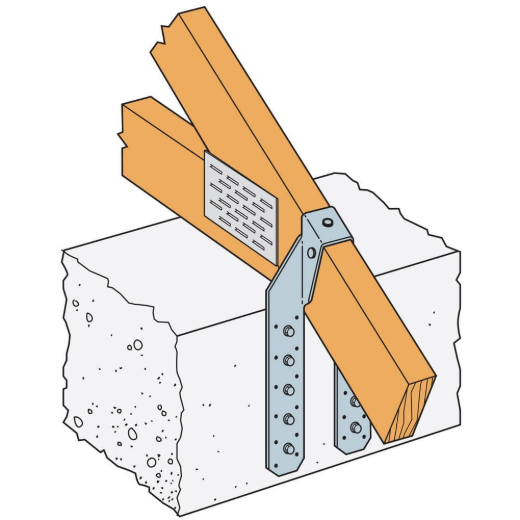

  • Connects trusses to the top of wall plates in wood framing or masonry walls.
  • Longer straps increase versatility and are suitable for truss heel heights up to 13 1/2 inch.
  • Presloped seat is angled at 5:12 for a tight fit and minimal deflection.
  • Constructed from 18-gauge galvanized steel for enhanced corrosion resistance.
  • Offers strong protection against uplift and lateral forces.
  • Compatible with trusses or rafters at a pitch from 3/12 to 7/12.
  • Designed for a minimum heel height of 4 inch.

Includes

  • Sold as 50 per carton.
Products specifications
model H16S
material 18-gauge galvanized steel
finish G90 Galvanized
dimensions 11-11/16 inch x 1-5/8 inch x 18ga
seat_width 1-5/8 inch
truss_pitch 3/12 to 7/12
min_heel_height 4 inch
preslope 5:12
resistance Uplift and lateral forces
application Wood truss to masonry walls
*
*
*
