Simpson Strong-Tie H3 Hurricane Tie

Mfr.: Simpson Strong-Tie
Item #: I093040
Mfr. #: H3
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $0.85
i h h

Description

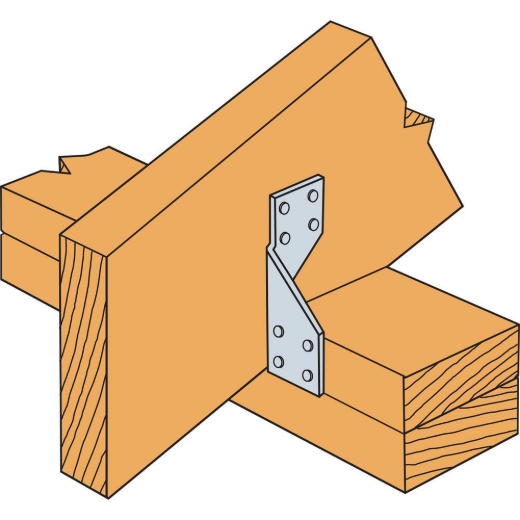

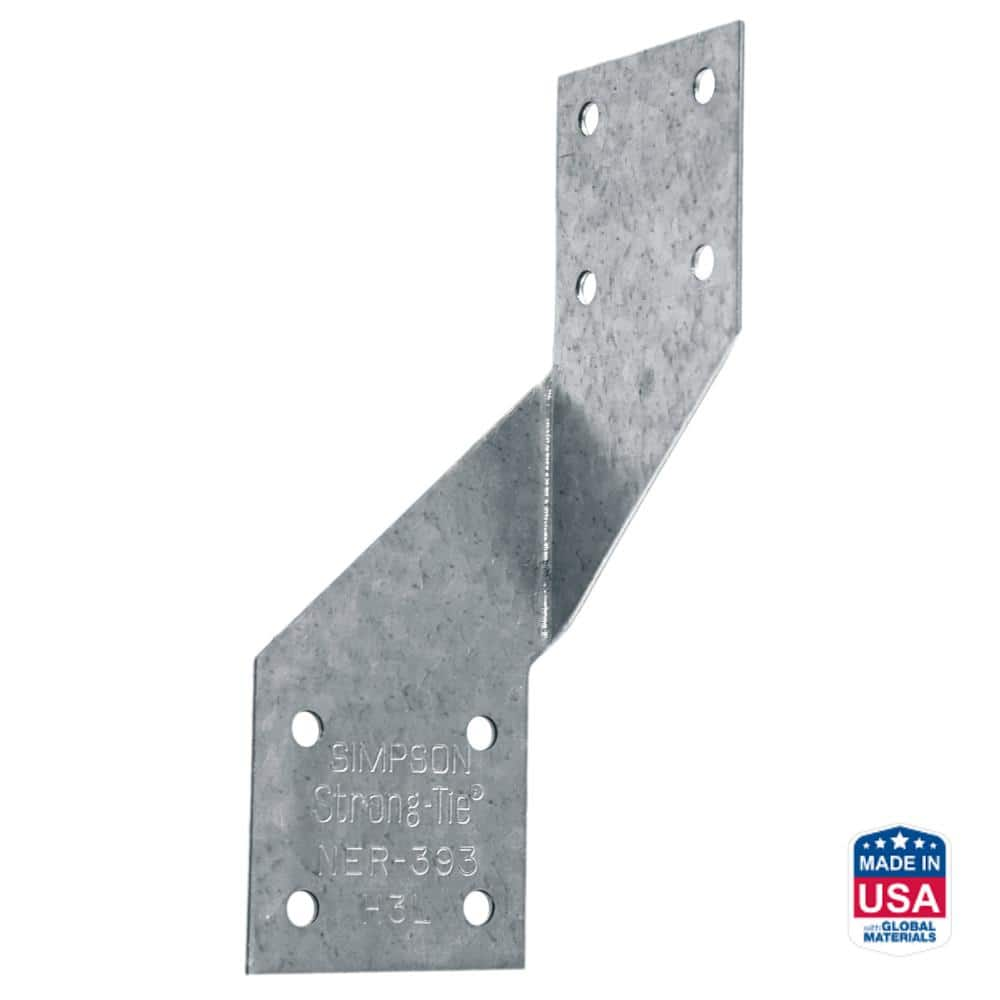

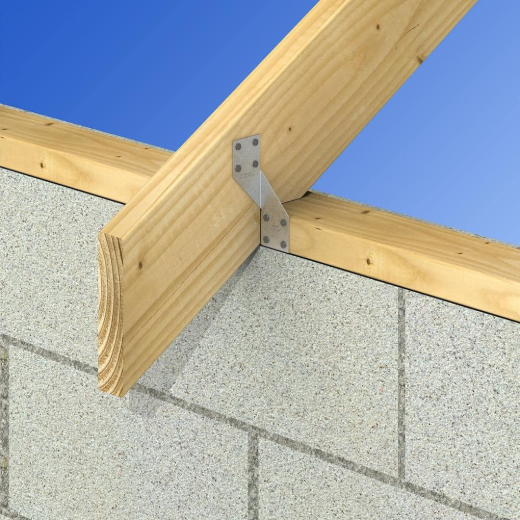

The Simpson Strong-Tie H3 Hurricane Tie is engineered to provide a robust connection between rafters or trusses and the top plate of a wall, specifically designed to resist moderate uplift and lateral loads. This single-sided tie forms a crucial part of a continuous load path, enhancing structural stability against wind and seismic forces. Available in both left and right-hand configurations, the H3 tie can be installed in pairs for increased versatility, making it suitable for various framing connections where members intersect. Its G90 galvanized steel construction ensures durability and corrosion resistance for long-lasting performance.
  • Resists moderate uplift and lateral loads
  • G90 Galvanized steel construction

Features

  • Enhances structural stability in wind and seismic conditions as part of a continuous load path.
  • Can be installed with load-rated Strong-Drive SD Connector screws for improved load-bearing capabilities.

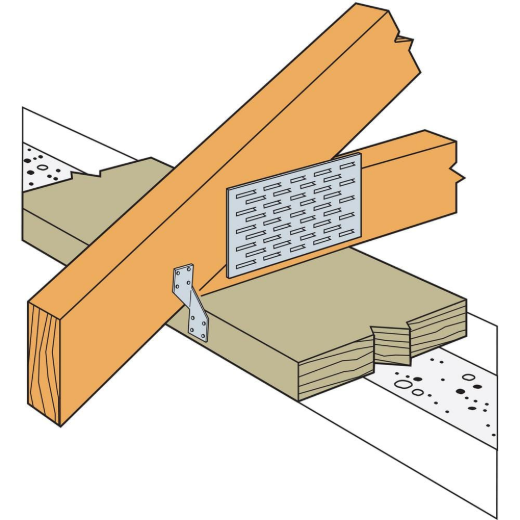

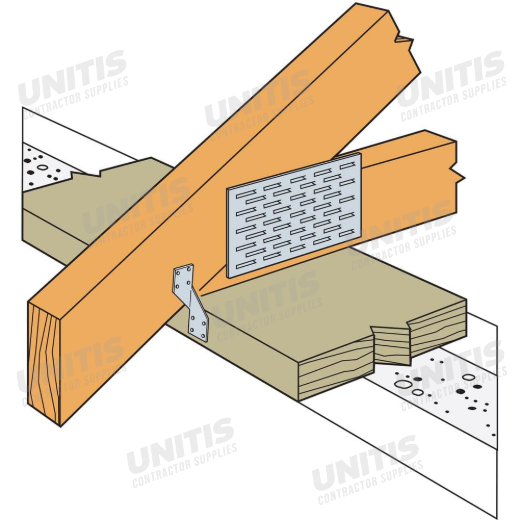

  • Useful for various connections where framing members cross each other.
  • Does not replace solid blocking.

Includes

  • Sold in pairs (1 LH and 1 RH piece per pair).
  • Available in cartons of 100.
Products specifications

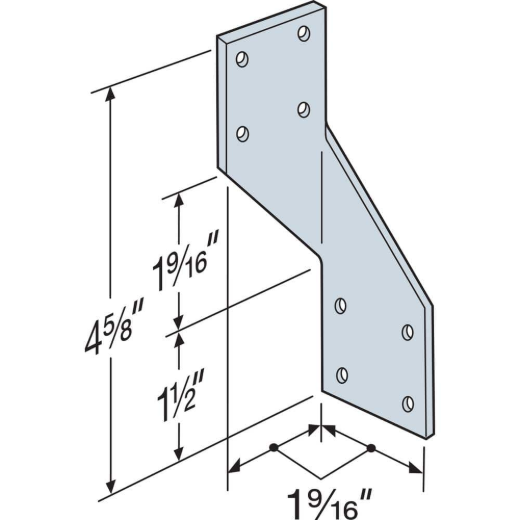

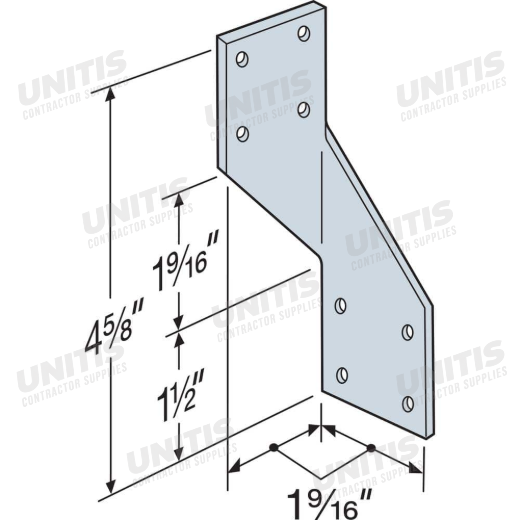

Length 4-5/8 inch
Width 1-9/16 inch
Gauge 18ga (43mils)
Material G90 Galvanized Steel
Fastener Type Nail or SD Connector Screws
*
*
*
