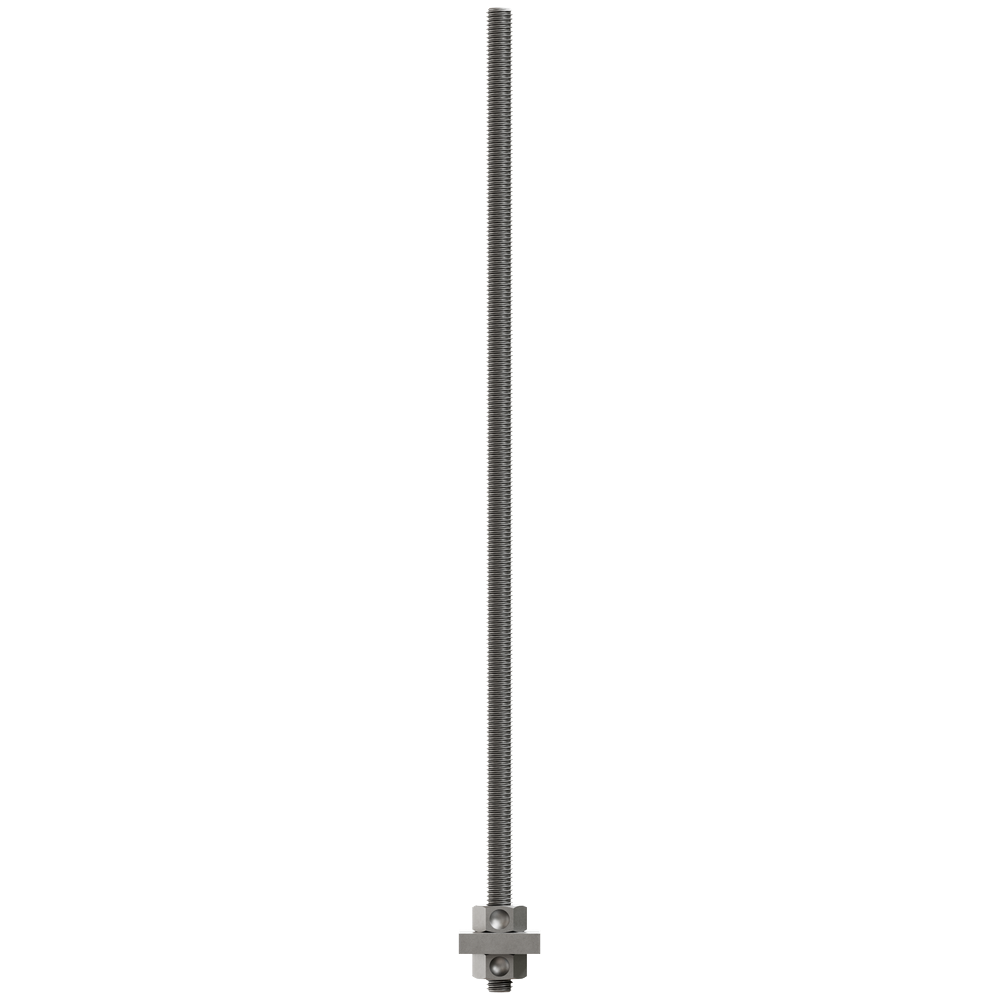

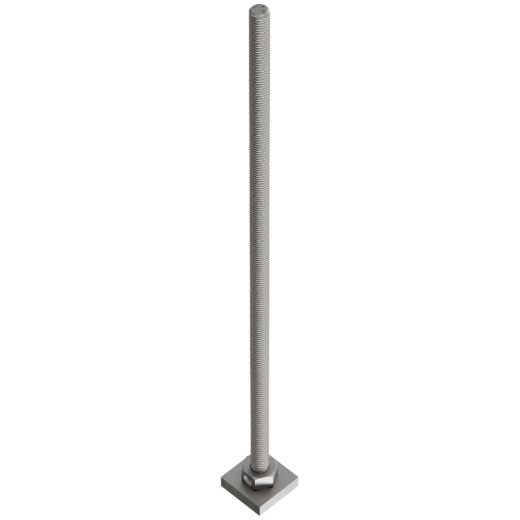

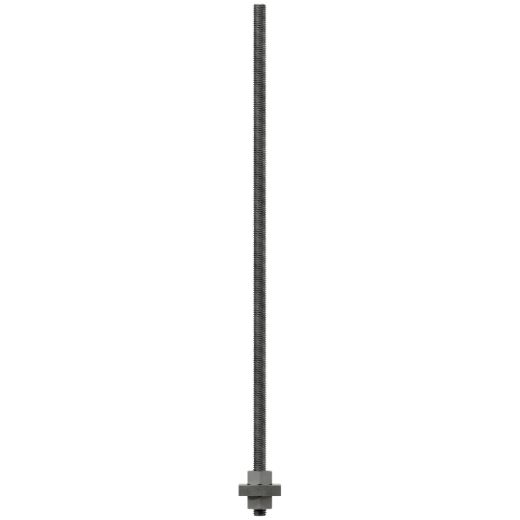

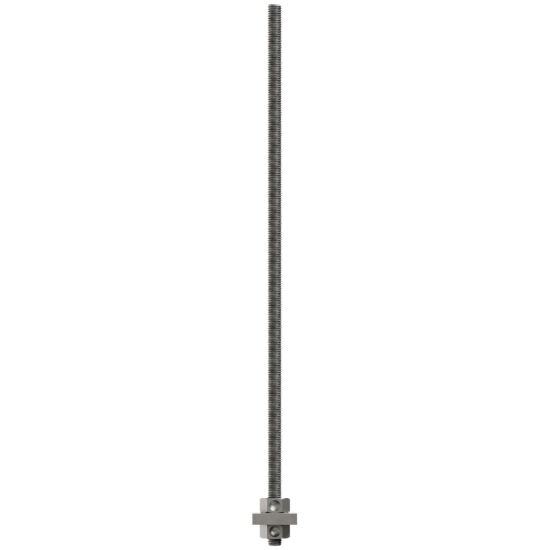

Simpson PAB 1/2" x 18" Pre-Assembled Anchor Bolt w/ Washer

Mfr.: Simpson Strong-Tie
Item #: I093338
Mfr. #: PAB4-18
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $33.02
i h h

Description

1/2 inch x 18 inch pre-assembled anchor bolt with washer for wood construction connectors. Designed for anchorage in concrete with cracked concrete conditions per ACI 318.
  • Pre-assembled with washer
  • 1/2 inch diameter, 18 inch length
  • For wood-to-concrete connections
  • Meets ACI 318 strength design provisions

Features

  • Pre-assembled anchor bolt with plate washer
  • Plate washer designed to develop bolt capacity
  • Suitable for cracked concrete with no supplementary reinforcement
  • Available in various lengths up to 36 inch (special order for longer)

Includes

  • 1 pre-assembled anchor bolt with washer

Specifications


Model NumberPAB4-18Diameter1/2 inch
Length18 inchMaterialSteel
Washer TypePlate washerApplicationWood-to-concrete anchorage
StandardACI 318-19
*
*
*
