  • Simpson S/HJCT-KT S/HJCT 97-mil Heavy Steel-Joist Hanger w/ Screws - 5/box

Simpson S/HJCT-KT S/HJCT 97-mil Heavy Steel-Joist Hanger w/ Screws - 5/box

Mfr.: Simpson Strong-Tie
Item #: I091924
Mfr. #: S/HJCT-KT
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $53.60
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

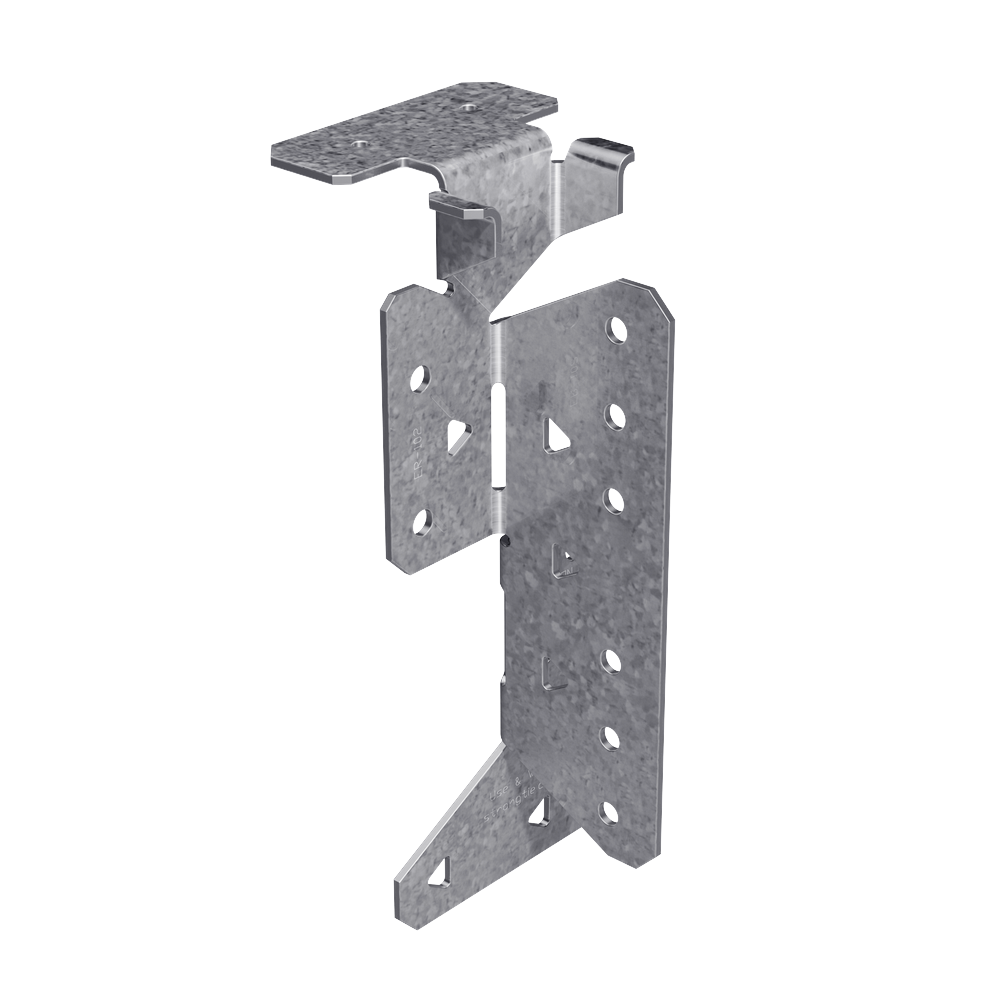

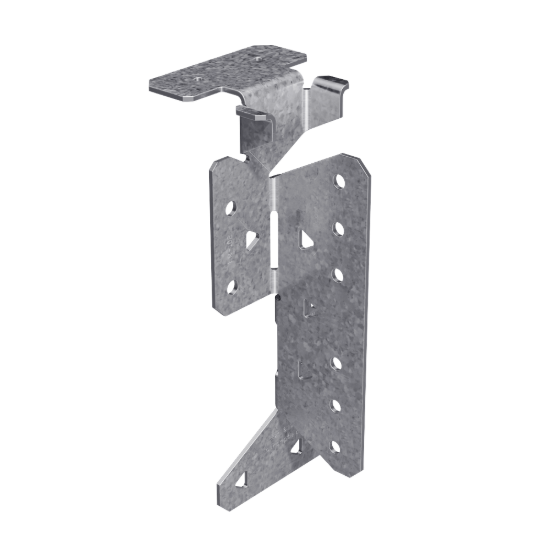

The Simpson Strong-Tie S/HJCT is a heavy-duty skewable steel-joist framing connector that combines strength, versatility and reduced installed cost. The hanger can be used with CFS headers, wood headers, steel I-beams (with welds or PAT fasteners) and masonry walls. Installed cost is minimized since these products are designed for shear loads rather than bearing, eliminating the need for web stiffeners. Framing is unidirectional and the joist can be attached from either the left or the right side.
  • Min./max. fill hole options for load capacity options
  • Field skewable up to 45 left or right
  • Horizontal tabs facilitate top-flange alignment and joist support during screw installation
  • One size fits joists 8-in. through 14-in. deep
  • Made from 97-mil (12-gauge) steel
  • Galvanized (G90) for corrosion resistance

Features

  • Min./max. fill hole options for load capacity options
  • Field skewable up to 45 left or right
  • Horizontal tabs facilitate top-flange alignment and joist support during screw installation
  • One size fits joists 8-in. through 14-in. deep
  • Made from 97-mil (12-gauge) steel
  • Galvanized (G90) for corrosion resistance

Specifications


Material97-mil (12-gauge) steelFinishGalvanized (G90)
Skew AngleUp to 45 deg left or rightJoist Depth Range8-in. through 14-in.
*
*
*
