Simpson Strong-Tie HGUS210-4 Quadruple 2X10 Face Mount Hanger

Mfr.: Simpson Strong-Tie
Item #: I091282
Mfr. #: HGUS210-4
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $133.26
i h h

Description

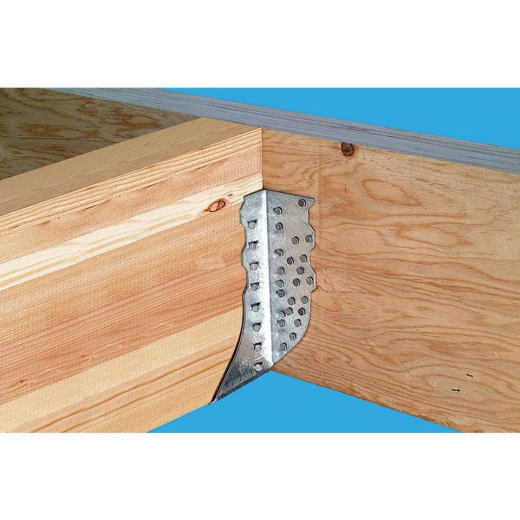

The Simpson Strong-Tie HGUS210-4 is a heavy-duty girder hanger designed to support quadruple 2x10 nominal lumber members. This extra-heavy-capacity connector utilizes innovative double-shear nailing to distribute loads through two points on each joist nail, significantly enhancing overall strength and stability. Engineered for high-load applications, it provides a reliable and economical solution for demanding structural framing and commercial projects.
  • Heavy-Duty 12-Gauge Steel
  • G90 Galvanized Finish

Features

  • Double-shear nailing technology distributes the load through two points on each joist nail for greater strength.
  • Value-engineered design allows for high load carrying capacity at an economical price point.
  • Can be installed after the beam is secured in place, offering significant flexibility during construction.
  • Tested and code-compliant for structural sawn lumber and engineered wood applications.

Includes

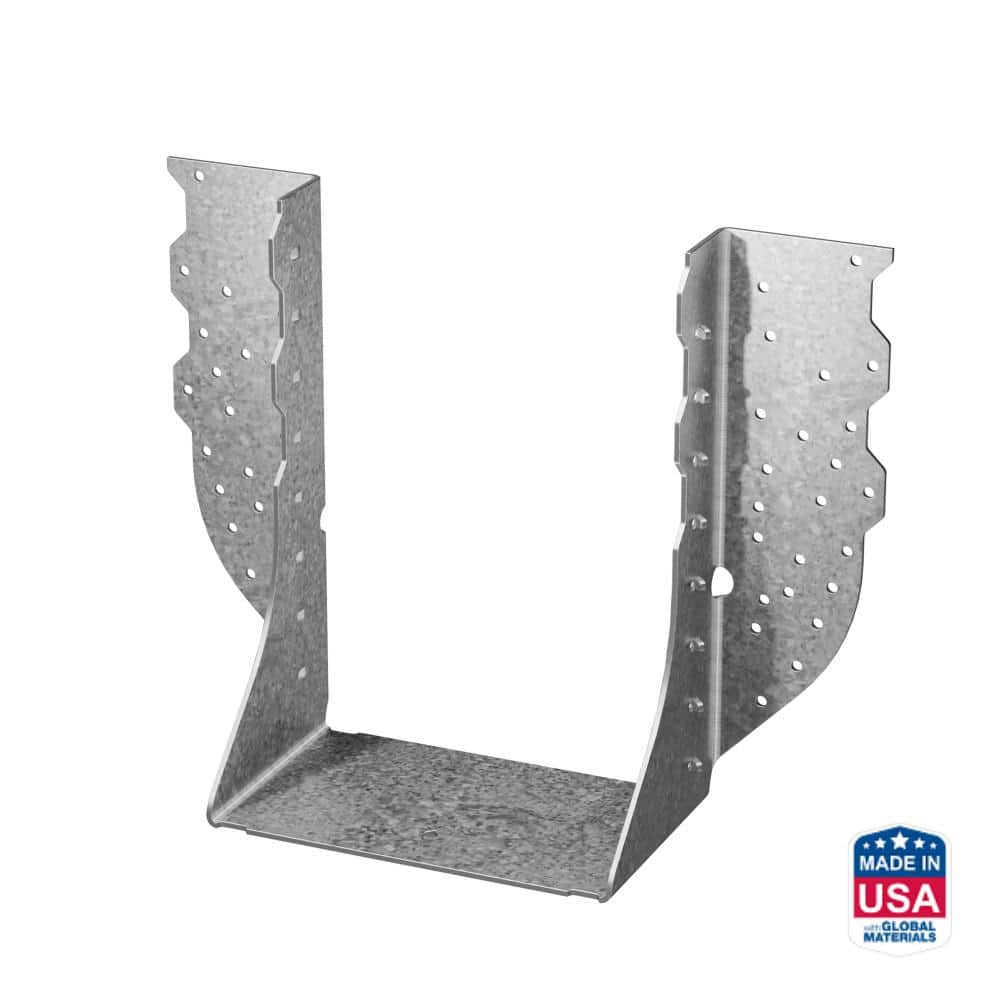

  • (1) HGUS210-4 Face Mount Hanger
Products specifications
Material 12-Gauge Steel
Finish G90 Galvanized
Joist Size Quadruple 2x10
Hanger Width 6-9/16 inch
Hanger Height 9-1/8 inch
Fastener Type 16d Common Nails
Installation Type Face Mount
Series HGUS Heavy Girder
*
*
*
