Simpson Strong-Tie HS24 Hurricane Tie

Mfr.: Simpson Strong-Tie
Item #: I093144
Mfr. #: HS24
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $6.24
i h h

Description

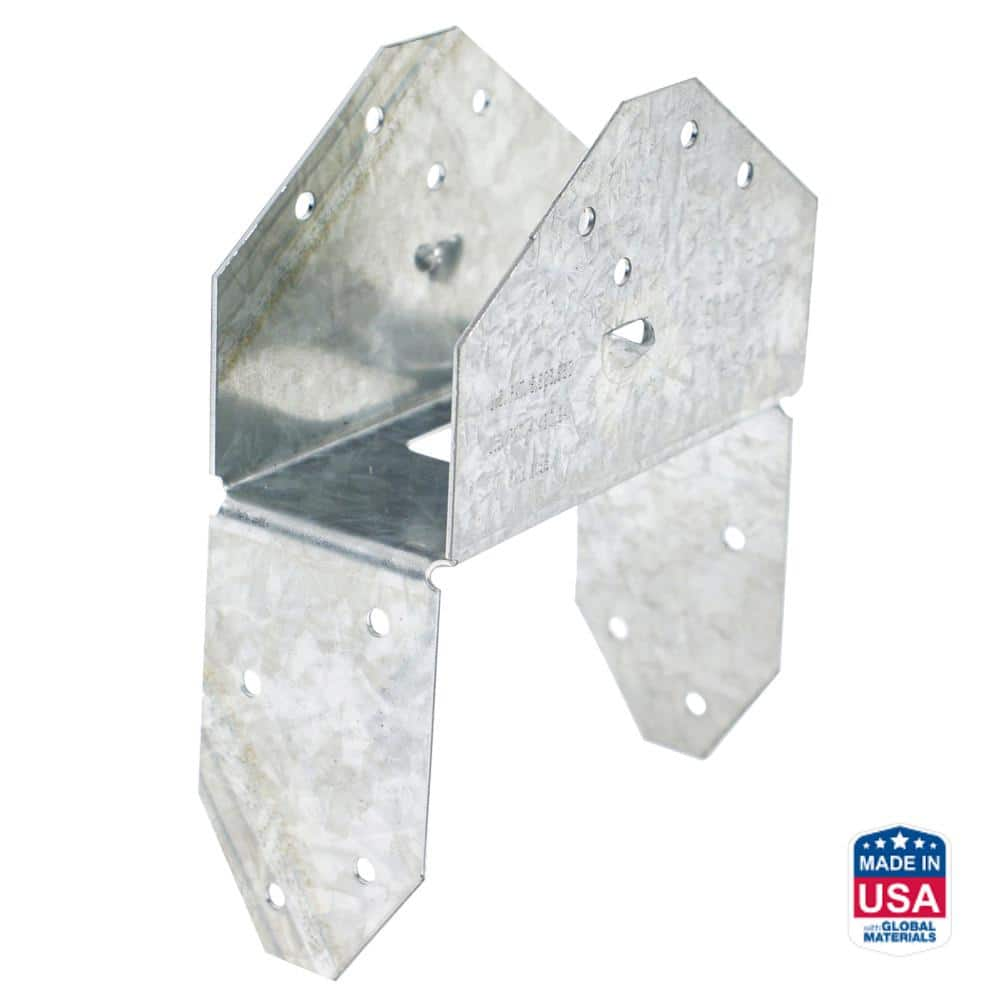

The Simpson Strong-Tie HS24 Hurricane Tie is engineered to provide robust structural support by connecting the bottom chord of a truss or rafter to double 2x4 top plates. It is designed for roof pitches ranging from 0/12 to 4/12 and features double-shear nailing for enhanced lateral resistance, particularly in applications where the bottom chord has no slope. This versatile tie is ideal for reinforcing structures against wind uplift and seismic forces, ensuring greater stability and safety.

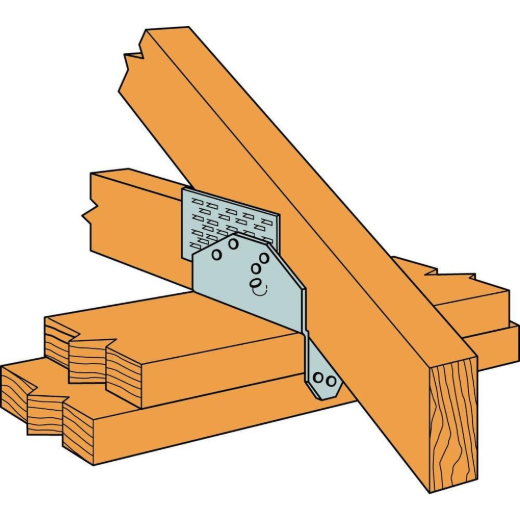

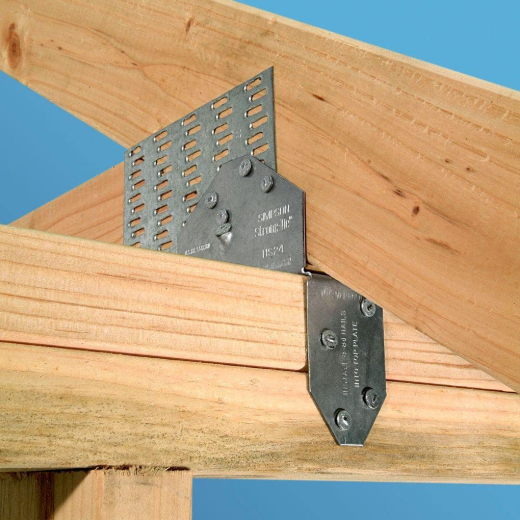

  • Attaches bottom chord of truss/rafter to double 2x4 top plates
  • Suitable for roof pitches 0/12 to 4/12

Features

  • Designed to resist wind uplift and seismic forces
  • Double-shear nailing for higher lateral resistance
  • Galvanized (G90) finish for corrosion resistance
  • Versatile for various connections where one member crosses another
Products specifications
material Steel
finish Galvanized (G90)
fastening method Nail, Screw

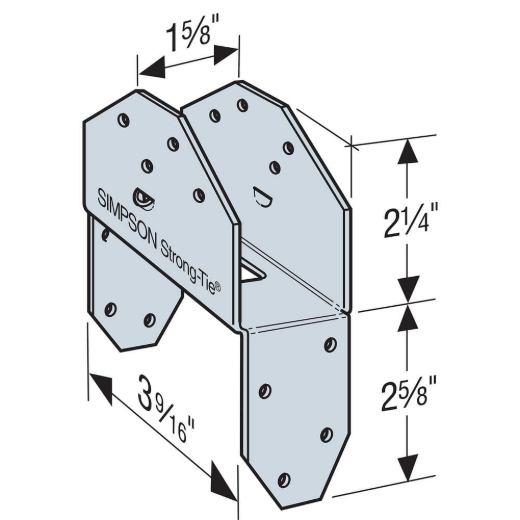

length 4-7/8 in
width 3-9/16 in
material gauge 18 ga
*
*
*
