Simpson Strong-Tie HTT4 Heavy Tension Tie 12-3/8In

Mfr.: Simpson Strong-Tie
Item #: I093168
Mfr. #: HTT4
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $35.12
i h h

Description

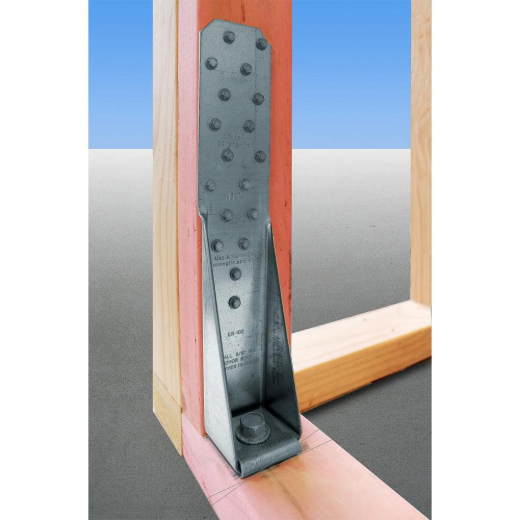

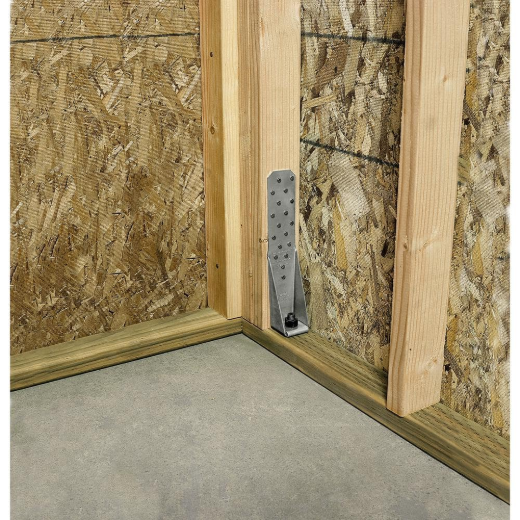

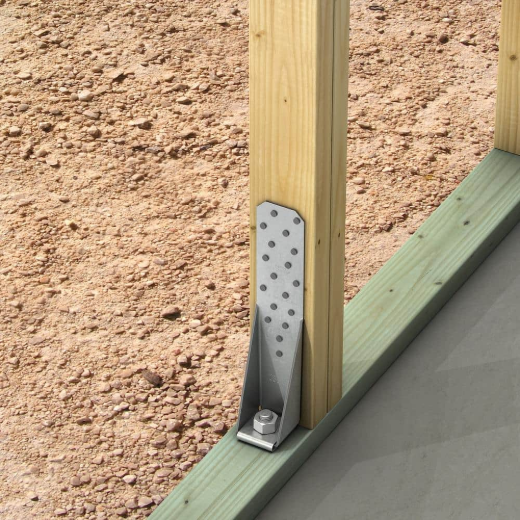

Simpson Strong-Tie's HTT4 Heavy Tension Tie is engineered to provide a high-strength solution for resisting tension loads in wood-to-concrete connections. This single-piece formed tie is ideal for both new construction and retrofit projects, offering reliable structural reinforcement for applications exposed to wind and seismic forces. Its design ensures a secure attachment of framing members to concrete foundations, preventing uplift and enhancing overall structural stability.
  • High-strength tension load resistance
  • Wood-to-concrete connection
  • Designed for seismic and wind loads

Features

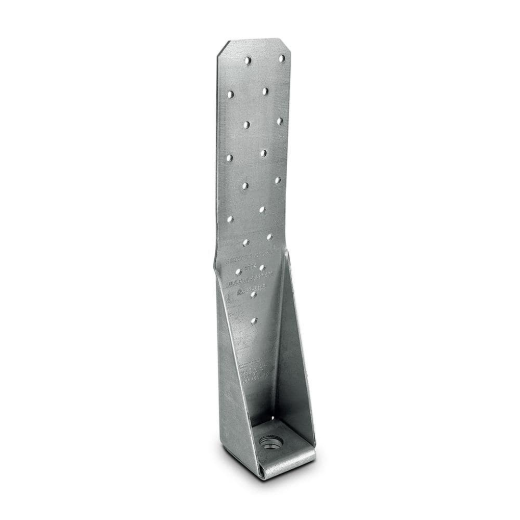

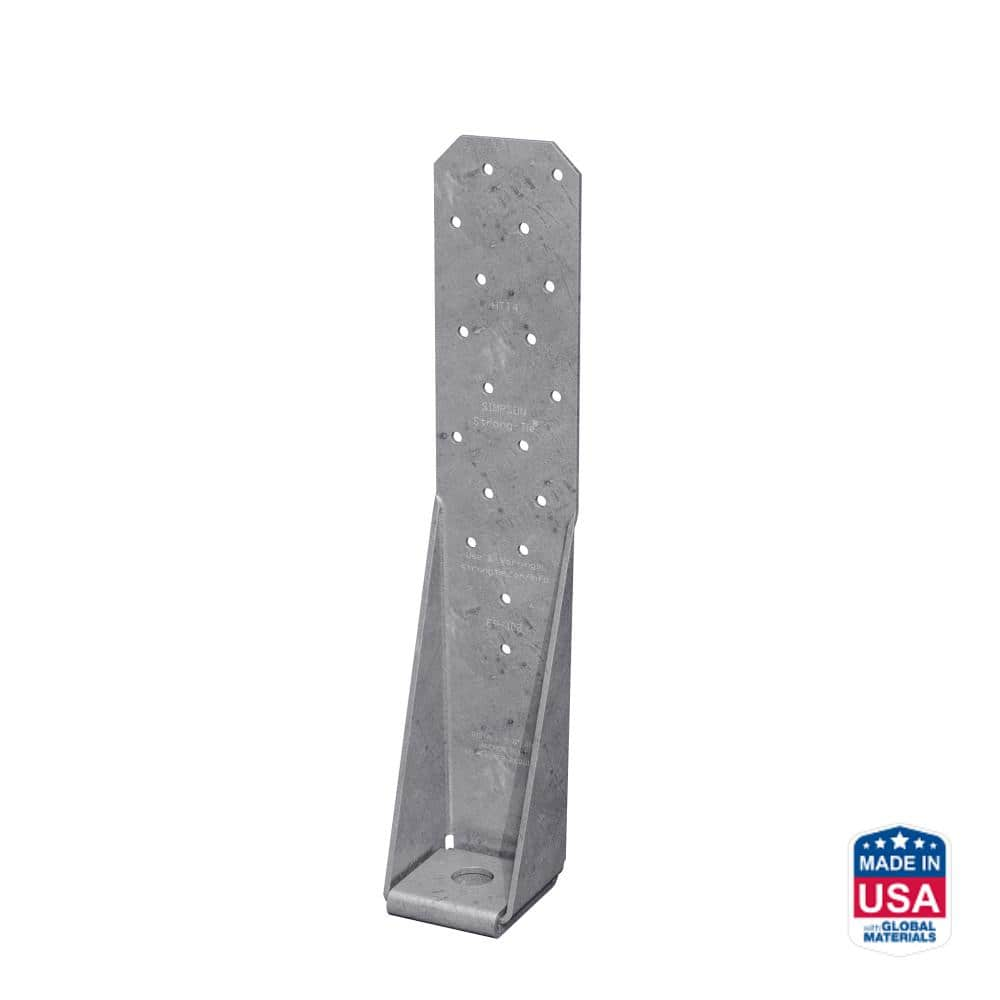

  • Single-piece formed heavy tension tie with a four-ply formed seat, no rivets required.

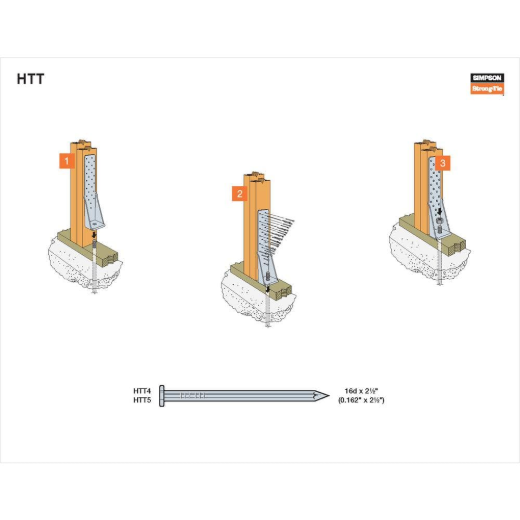

  • Installs with #10 x 1-1/2 inch Strong-Drive SD screws or specified nails, and a 5/8 inch anchor bolt.
  • Constructed from 11-gauge galvanized steel for high strength and corrosion resistance.
  • Optimized nailing pattern for better performance and less deflection.

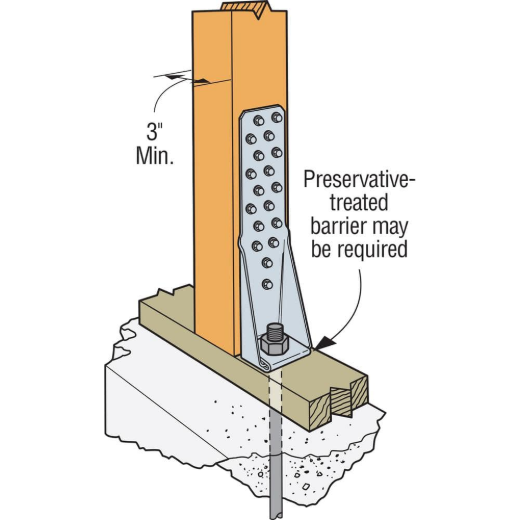

  • Can be installed with cast-in-place or post-installed anchor bolts.
  • Anchor bolt washers not required.

Includes

  • 1 x Simpson Strong-Tie HTT4 12-3/8 inch Tension Tie
Products specifications
length 12-3/8 inch
width 2-1/2 inch
material 11-gauge steel
finish G90 Galvanized
anchor bolt size 5/8 inch
fasteners (screws) #10 x 1-1/2 inch SD screws
fasteners (nails) 0.148 inch x 1-1/2 inch or 0.162 inch x 2-1/2 inc
*
*
*
