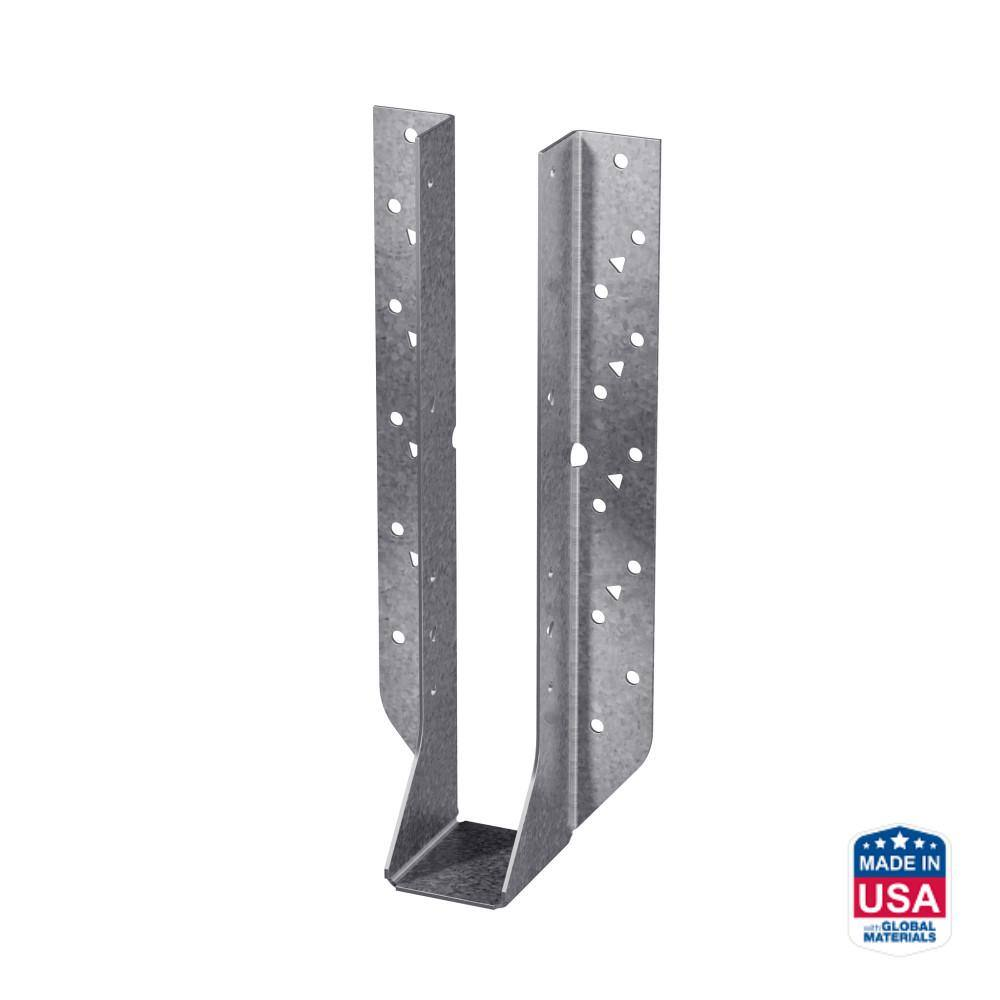

Simpson Strong-Tie HU11 Face Mount Hanger

Mfr.: Simpson Strong-Tie
Item #: I091440
Mfr. #: HU11
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $24.87
i h h

Description

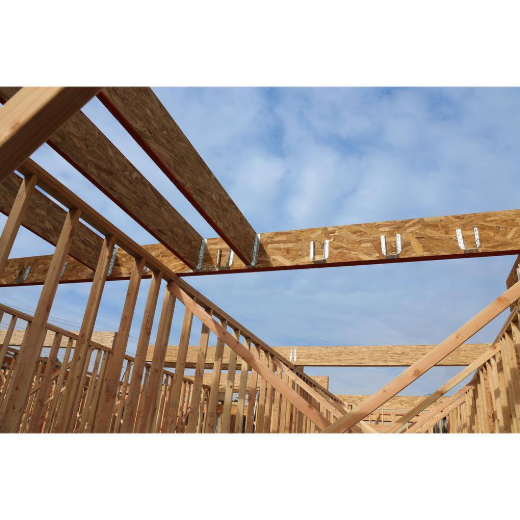

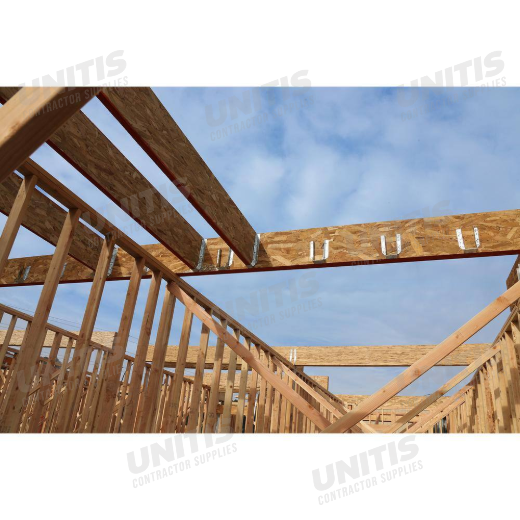

The Simpson Strong-Tie HU11 is a heavy-duty face-mount joist hanger designed for structural applications requiring extra strength and high safety factors. Built from robust 14-gauge steel, this connector provides a high-capacity solution for 1-3/4-inch wide engineered wood or solid sawn lumber members. Its G90 galvanized finish ensures long-lasting corrosion resistance, making it an ideal choice for both residential and commercial framing projects including schools and multi-family structures.
  • Heavy-Duty 14-Gauge Steel
  • G90 Galvanized Finish

Features

  • Features integrated triangular holes that allow for maximum load values when fully fastened.
  • Tested and code-compliant for reliability in demanding structural environments.
  • Versatile design allows for installation on wood, masonry, or concrete headers with appropriate fasteners.
  • Model belongs to the high-capacity HU series of heavy-duty connectors.

Includes

  • HU11 Face Mount Hanger (Fasteners sold separately)
Products specifications
Model No HU11
Material 14 Gauge Steel
Finish G90 Galvanized
Joist Width 1-3/4 inch
Joist Height 11-1/4 inch to 11-7/8 inch
Hole Types Round and Triangular
Connector Series HU Heavy Face-Mount
*
*
*
