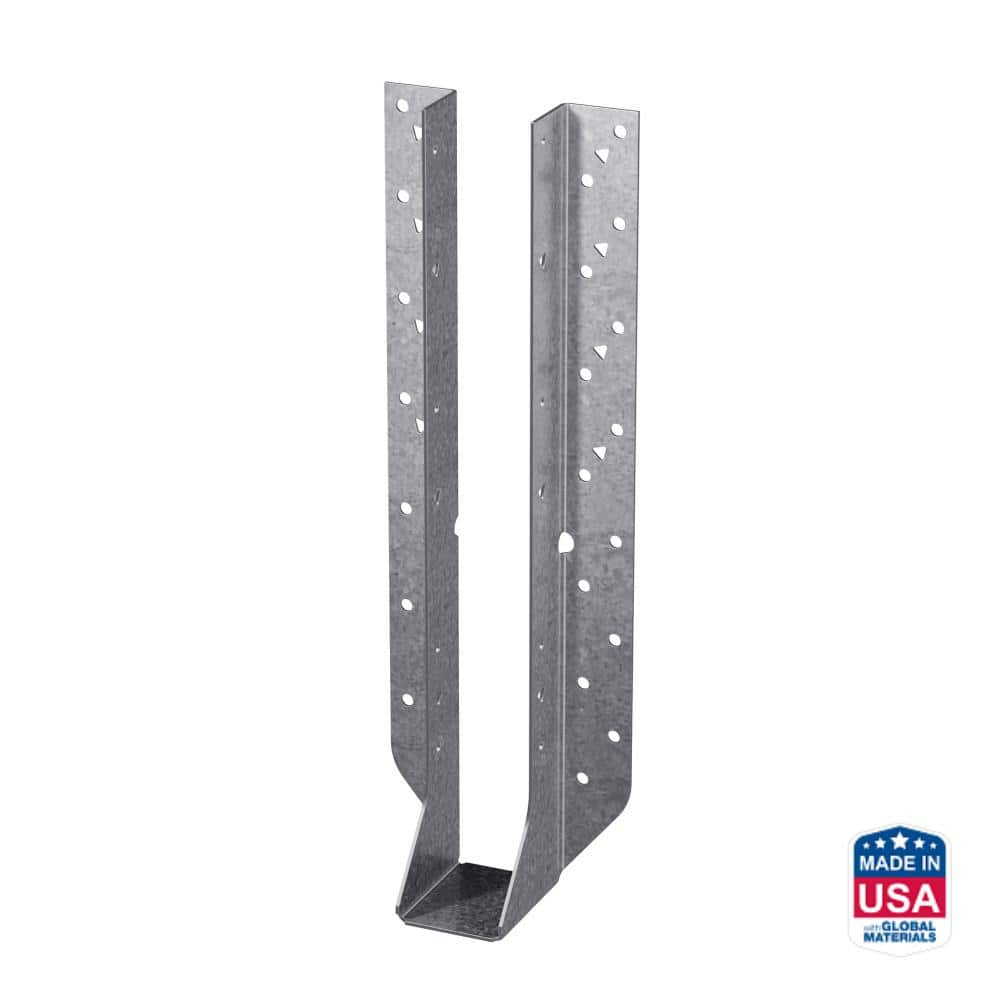

Simpson Strong-Tie HU14 Face Mount Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091441
Mfr. #: HU14
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $39.48
i h h

Description

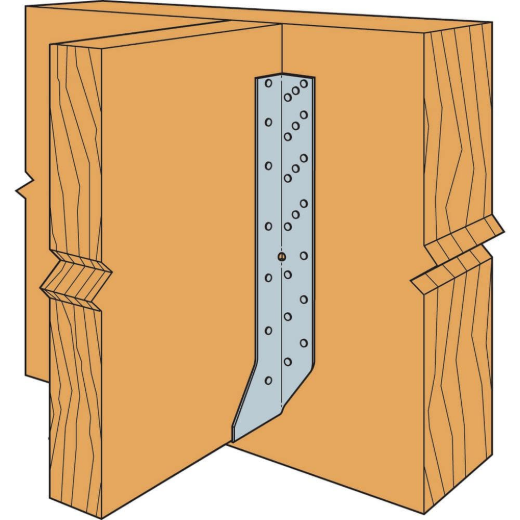

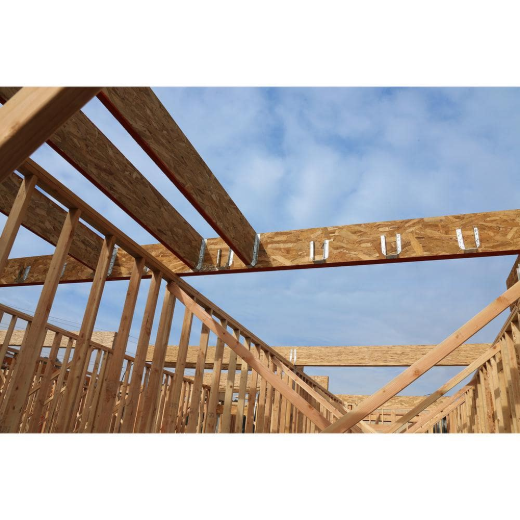

The Simpson Strong-Tie HU14 is a heavy-duty face-mount joist hanger engineered for projects requiring high-strength connections and enhanced safety factors. Manufactured from durable 14-gauge steel, it is specifically designed to support engineered wood products like LVL and I-joists. This hanger is an ideal solution for structural applications such as deck framing, roof systems, and commercial floor joists.
  • G90 Galvanized Finish
  • Heavy-Duty 14-Gauge Steel

Features

  • Includes triangular holes for increased load capacity when required.
  • Tested and code-listed for wood-to-wood and wood-to-masonry use.
  • Compatible with Titen HD screws for concrete or masonry applications.

Includes

  • HU14 Face Mount Hanger
Products specifications
Series HU Series
Material 14-Gauge Carbon Steel
Finish G90 Galvanized
Joist Size 1-3/4 inch x 14 inch
Height 13-11/16 inch
Width 1-13/16 inch
Face Fasteners (36) 0.162 inch x 3-1/2 inch Nails
Joist Fasteners (14) 0.148 inch x 1-1/2 inch Nails
Code Compliance ICC-ES ESR-2552
*
*
*
