Simpson HUC - 2" x 6" Double Concealed Face Mount Joist Hanger ZMAX

Mfr.: Simpson Strong-Tie
Item #: I091598
Mfr. #: HUC26-2Z
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $32.76
i h h

Description

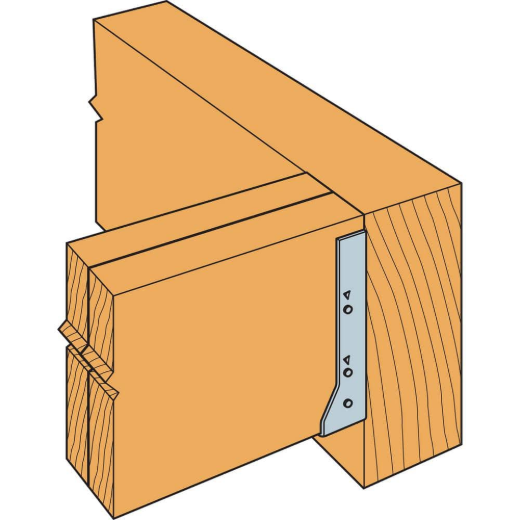

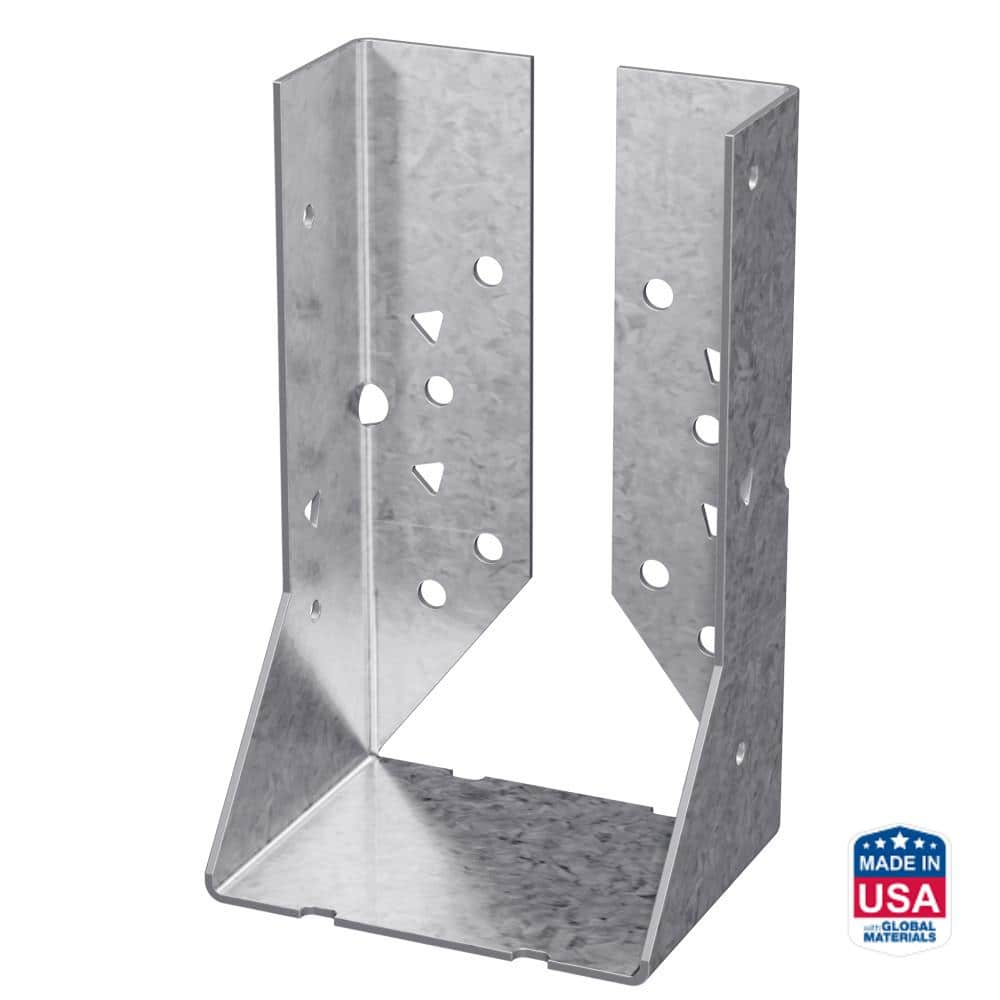

The Simpson Strong-Tie HUC26-2Z is a heavy-duty concealed flange joist hanger designed specifically for double 2x6 wood members. Its concealed flange design allows for a clean, professional aesthetic by hiding the header flanges in exposed conditions. Engineered for structures that require additional strength and safety factors, this hanger is finished with ZMAX galvanization to provide superior corrosion resistance in exterior and treated-wood applications.
  • Concealed flange design for clean visible lines
  • ZMAX galvanized finish for high corrosion resistance

Features

  • Heavy-duty 14-gauge steel construction for maximum structural integrity.
  • Versatile installation options, including the ability to fill optional triangle holes for increased load capacity.

Includes

  • (1) HUC26-2Z Concealed Double Face Mount Joist Hanger
Products specifications
Connector Type Concealed-Flange Joist Hanger
Country of Origin USA (subject to change)
Finish / Coating ZMAX (G185)
Joist / Lumber Size 2 in x 6 in
Manufacturer's Warranty Limited Lifetime
Material Galvanized Steel
Mount Style Concealed-Flange
Series HUC
Steel Gauge 14 ga
*
*
*
