Simpson Strong-Tie HUC410Z 4 x 10 Face Mount Hanger Zmax

Mfr.: Simpson Strong-Tie
Item #: I091638
Mfr. #: HUC410Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $33.61
i h h

Description

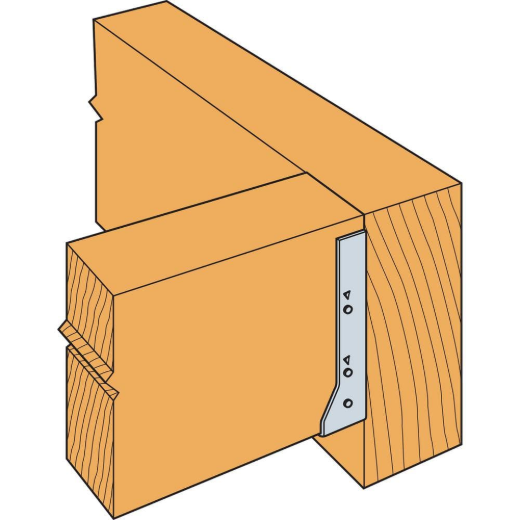

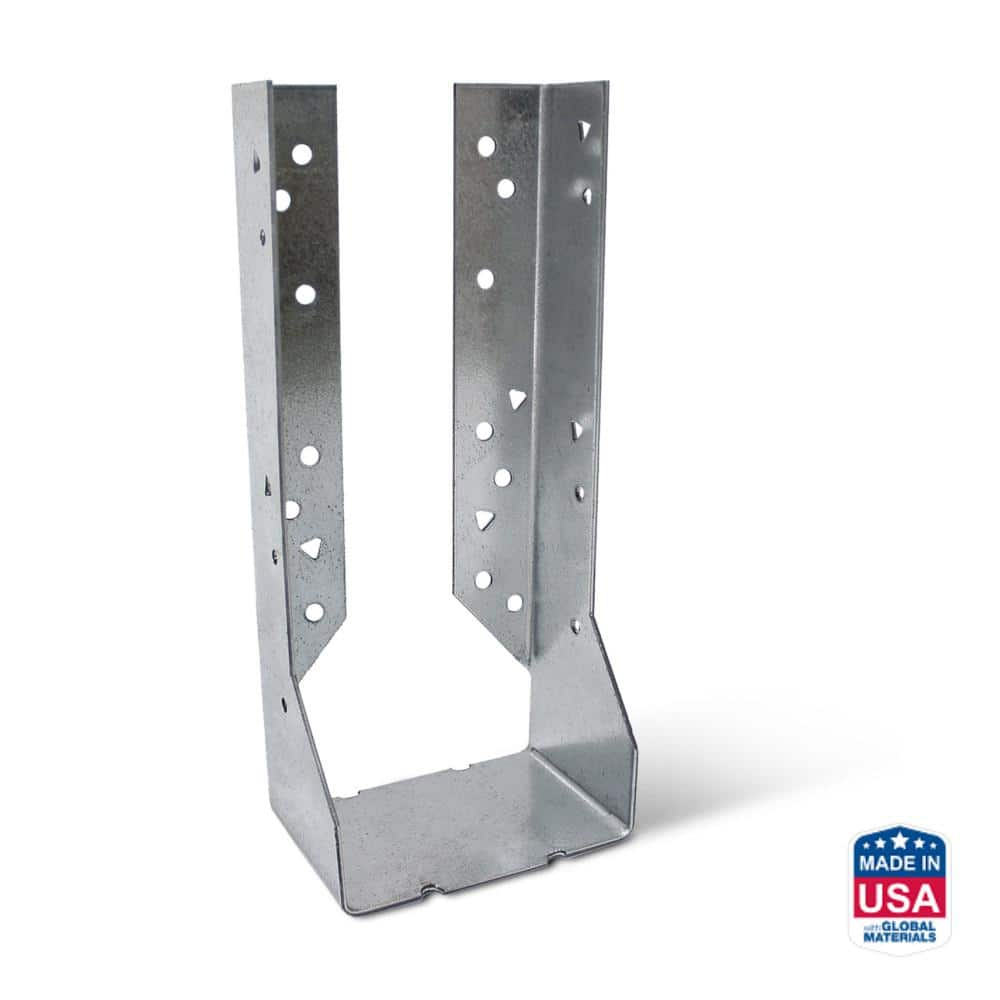

The Simpson Strong-Tie HUC410Z is a heavy-duty, concealed-flange face-mount joist hanger designed specifically for 4x10 joists. Featuring a ZMAX galvanized coating, this hanger provides superior corrosion resistance, making it an excellent choice for both interior and exterior applications, including those using treated lumber. Its concealed-flange design ensures a clean, aesthetic look in exposed conditions while maintaining high structural integrity and load capacity.
  • ZMAX Galvanized Coating for enhanced corrosion resistance
  • Concealed-flange design for a cleaner aesthetic

Features

  • Heavy-duty 14-gauge steel construction
  • Extra optional triangle holes available for increased load capacity
  • Suitable for wood-to-wood, wood-to-masonry, and wood-to-concrete applications
Products specifications
Finish ZMAX
Material Carbon Steel
Joist Size 4 inch x 10 inch
Thickness 14 Gauge
Height 8-3/8 inch
Seat Width 3-9/16 inch
Mount Type Face Mount
For Treated Lumber Yes
*
*
*
