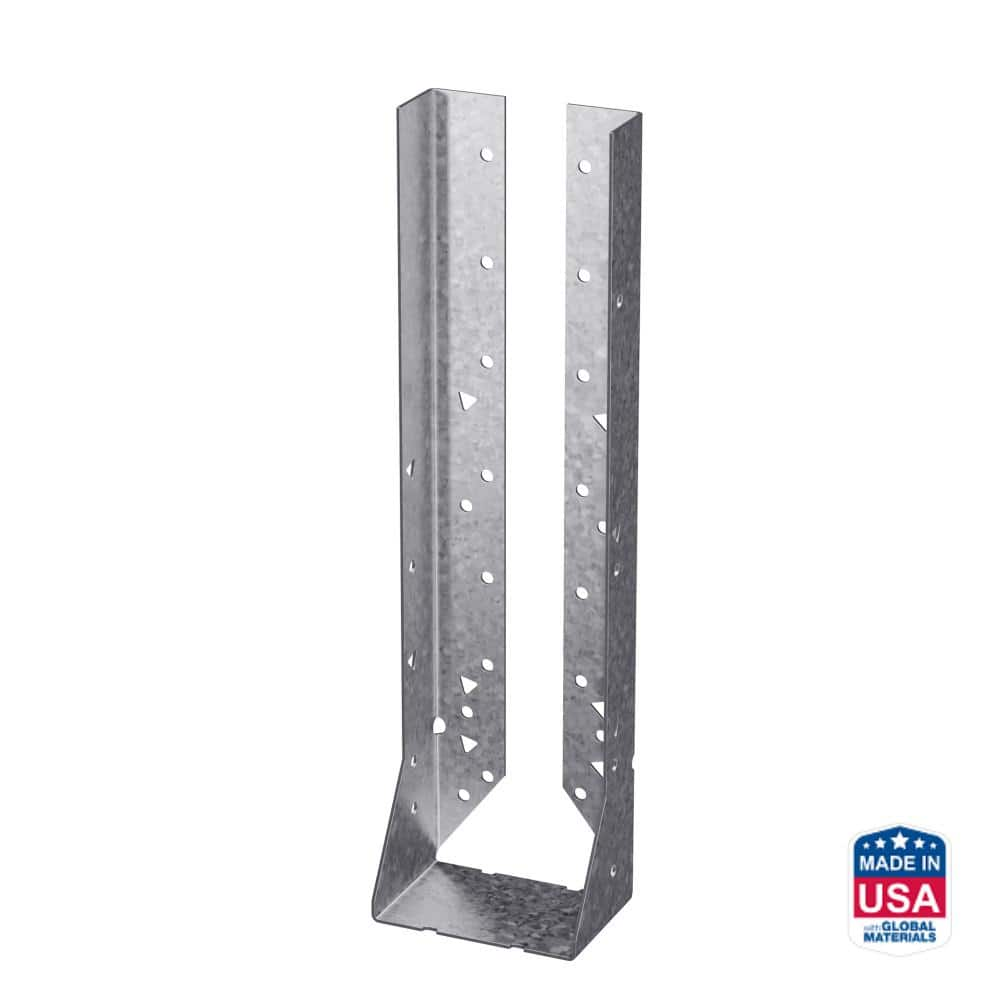

Simpson Strong-Tie HUC416 Concealed Flange Heavy Face Mount Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091646
Mfr. #: HUC416
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $40.57
i h h

Description

The Simpson Strong-Tie HUC416 is a heavy-duty, concealed-flange face-mount joist hanger engineered for robust support in demanding construction applications. Crafted from 14-gauge steel with a G90 galvanized finish, this hanger ensures exceptional durability and resistance to corrosion. Its concealed header flanges provide clean, aesthetically pleasing lines, making it ideal for exposed structural elements. The HUC416 is designed to meet high strength and safety factor requirements for reliable structural integrity.
  • Heavy-duty construction
  • Concealed flange design
  • G90 Galvanized finish

Features

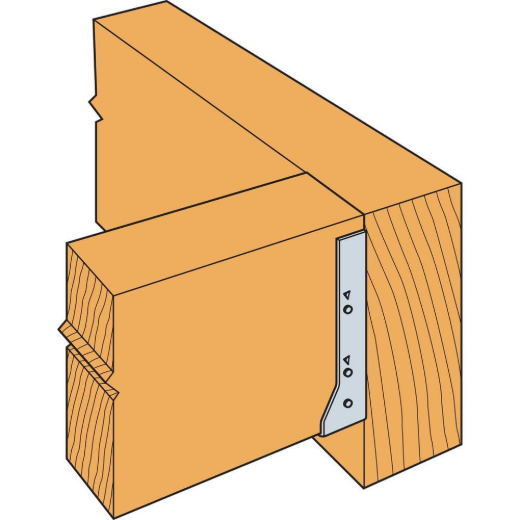

  • Provides strong, concealed connections for deck framing, pergolas, and covered porches.
  • Ensures secure joist connections in residential and commercial construction.
  • Compatible with LVL, PSL, and CFS joists.
  • Extra optional triangle holes for additional load capacity.

Includes

  • 1 x HUC416 Joist Hanger
Products specifications
Gauge 14
Finish G90 Galvanized
Material Carbon Steel
Joist Size 4 inch X 16 inch
Height 13-11/16 inch
Width 3-9/16 inch
Fasteners (26) .162x3.5 inch Nails (Face), (12) .148x3
For Treated Lumber No
Quantity 1
*
*
*
