  • Simpson Strong-Tie HUS210-2TF Heavy-Duty Joist Hanger

Simpson Strong-Tie HUS210-2TF Heavy-Duty Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091709
Mfr. #: HUS210-2TF
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $41.67
i h h

Description

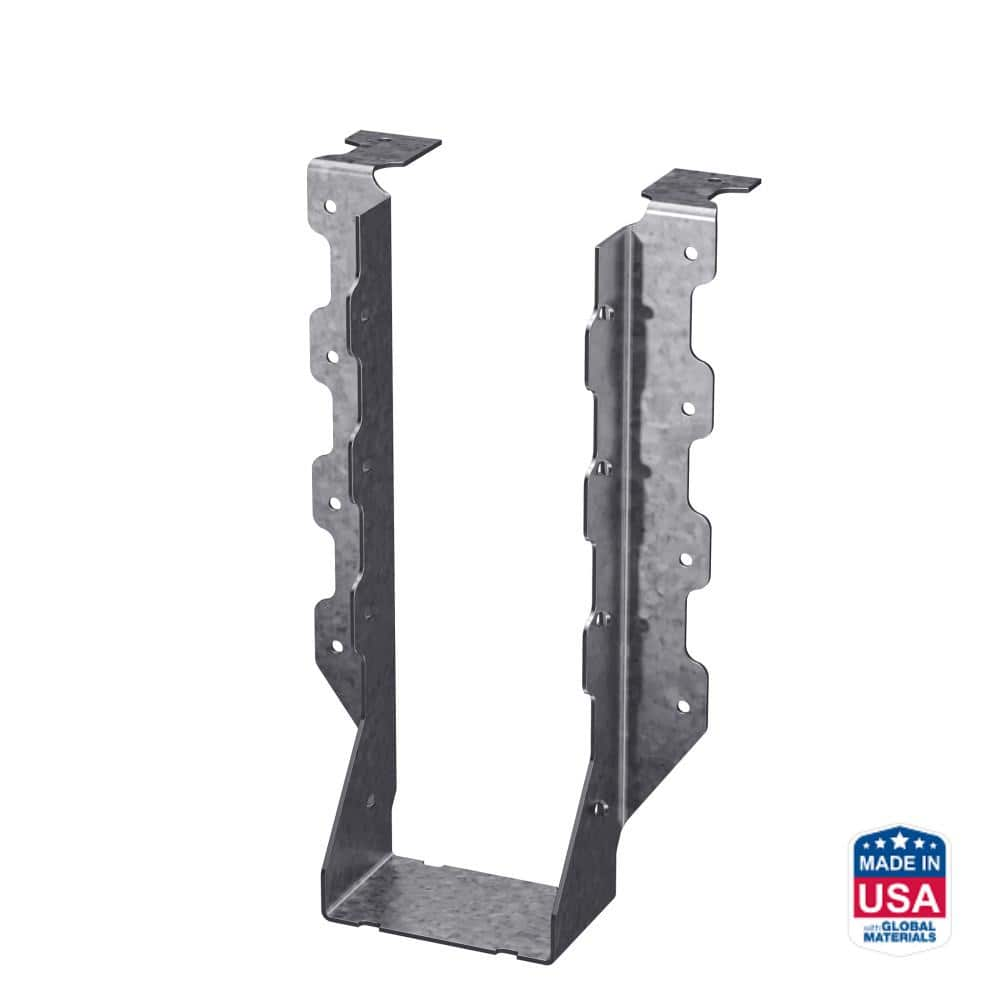

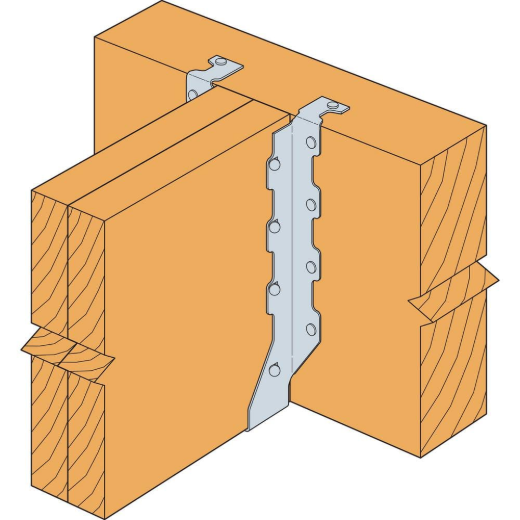

The Simpson Strong-Tie HUS210-2TF is a heavy-duty, hybrid hanger from the HUSTF series designed for supporting double 2x10 lumber beams. It incorporates a top-flange design combined with double-shear nailing technology, which distributes the joist load through two points on each nail for significantly enhanced strength. This hanger is engineered to provide superior stability for demanding wood-to-wood structural applications, including floor and roof framing.
  • Double-shear nailing for increased load capacity
  • G90 galvanized finish for corrosion resistance

Features

  • Heavy-duty 14-gauge construction for high-load structural conditions.
  • Full U-shaped wrap provides optimal load distribution and support.
  • Embossed top flange provides additional connection strength.

Includes

  • (1) HUS210-2TF Joist Hanger
Products specifications
Material Carbon Steel
Finish G90 Galvanized
Gauge 14
Joist Size Double 2 inch x 10 inch
Width 3-1/8 inch
Height 9-1/4 inch
Fasteners - Header (10) 0.162 inch x 3-1/2 inch Nails
Fasteners - Joist (8) 0.162 inch x 3-1/2 inch Nails
For Treated Lumber No
*
*
*
