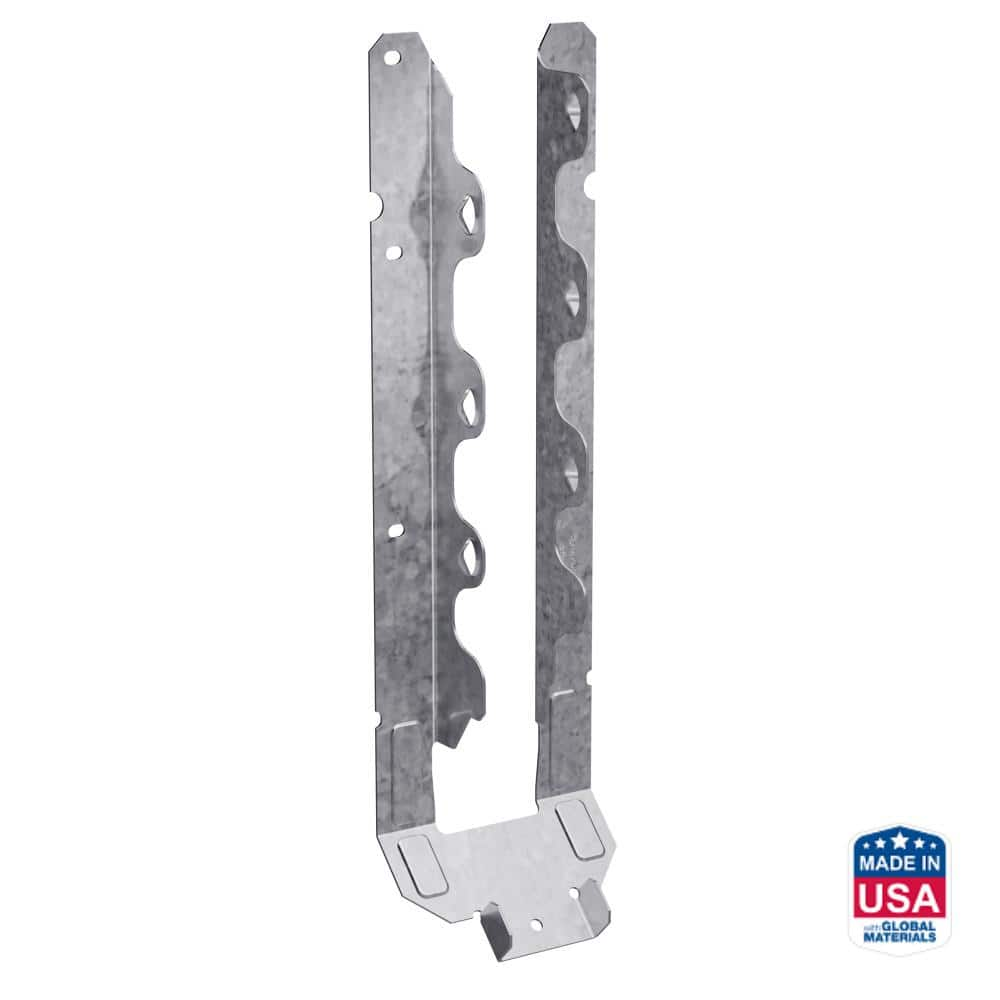

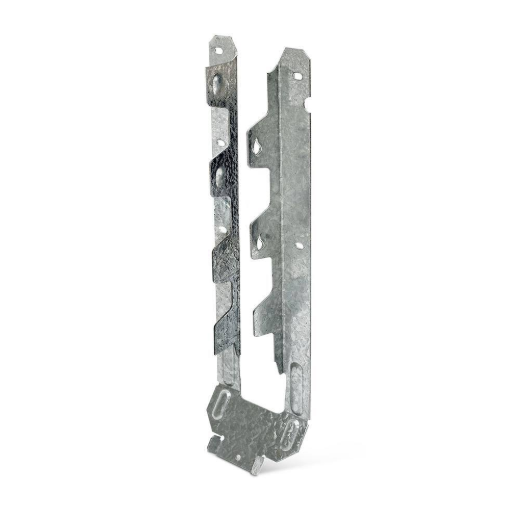

Simpson LRU - 2" x 12" Light Rafter U Joist Hanger ZMAX

Mfr.: Simpson Strong-Tie
Item #: I091783
Mfr. #: LRU212Z
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $18.21
i h h

Description

The Simpson Strong-Tie LRU212Z is a versatile, slopeable light rafter U hanger designed for solid sawn 2x12 lumber. Its unique design allows for field adjustment to accommodate roof pitches from 0:12 to 14:12, making it an ideal, cost-effective solution for both new construction and retrofit rafter-to-ridge connections. The hanger's open design enables installation either before or after the rafter is in place, significantly improving jobsite efficiency.
  • Slopeable from 0:12 to 14:12
  • ZMAX Galvanized coating for corrosion resistance

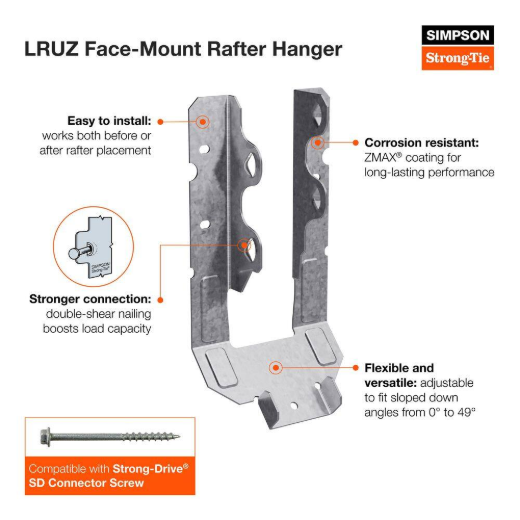

Features

  • Field-adjustable seat eliminates mismatched angles and special order lead times.
  • Versatile design allows for installation before or after the rafter is placed.
  • High-placed face fasteners enable the bottom of the rafter to hang below the ridge beam.

Includes

  • 1 x LRU212Z Rafter Hanger
Products specifications
Connector Type Face-Mount Joist Hanger
Country of Origin USA (subject to change)
Finish / Coating ZMAX (G185)
Joist / Lumber Size 2 in x 12 in
Manufacturer's Warranty Limited Lifetime
Material Galvanized Steel
Mount Style Face-Mount
Series LRU
Steel Gauge 18 ga
*
*
*
