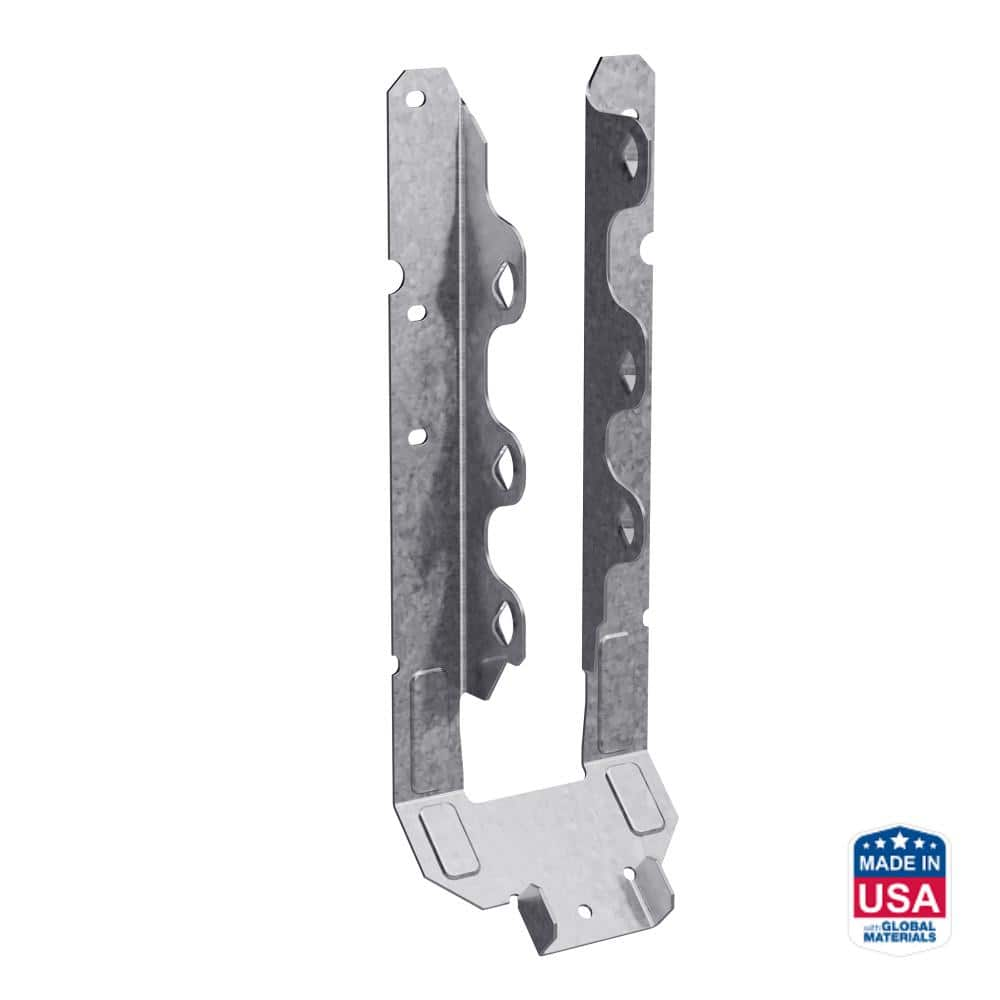

Simpson Strong-Tie Light Rafter U Hanger - Slopeable 2X10

Mfr.: Simpson Strong-Tie
Item #: I091782
Mfr. #: LRU210Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $15.53
i h h

Description

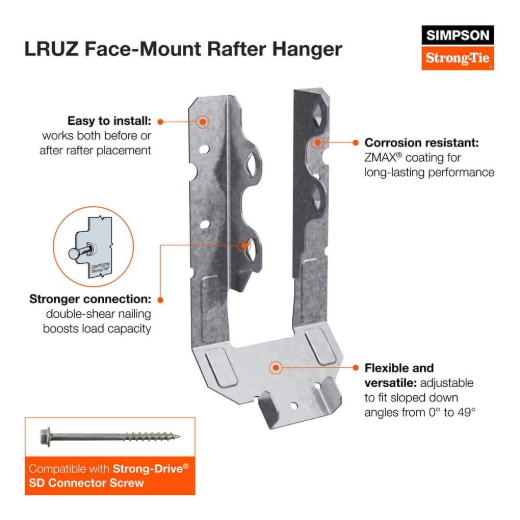

The Simpson Strong-Tie LRU210Z is a slopeable, face-mount rafter hanger from the LRUZ series, designed to provide a secure and economic connection for rafter-to-ridge applications. Its unique design allows for field-adjustable seat angles, which helps eliminate lead times for special orders and improves on-site efficiency. This versatile hanger can be installed either before or after the rafter is in place, making it ideal for both new construction and retrofit projects.
  • Field-adjustable seat for slopes up or down to 45
  • ZMAX coating for superior corrosion resistance

Features

  • Accommodates roof pitches from 0:12 to 14:12
  • High fastener placement allows the rafter to hang below the ridge beam
  • Compatible with solid sawn rafters
  • Install with nails or Strong-Drive SD Connector screws
Products specifications
Model LRU210Z
Series LRUZ
Material 18 Gauge Steel
Finish ZMAX Coating
Nominal Rafter Size 2x10
Slope Range 0 deg to 49 deg (0:12 to 14:12 pitch)
Installation Face-Mount
Compliance US Patent 10,370,842
*
*
*
