Simpson Strong-Tie LRU26Z Light Rafter U Hanger

Mfr.: Simpson Strong-Tie
Item #: I091784
Mfr. #: LRU26Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $9.57
i h h

Description

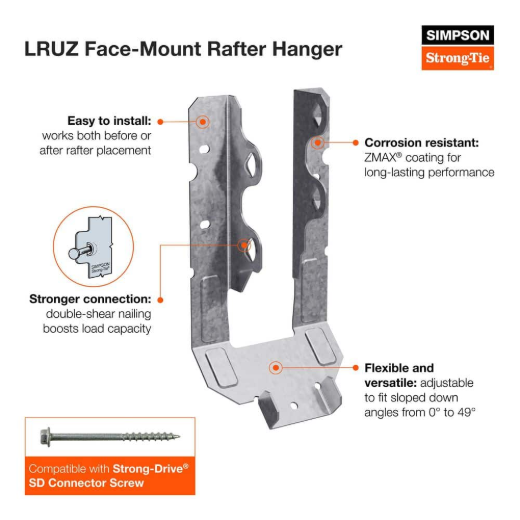

The Simpson Strong-Tie LRU26Z is a slopeable, light rafter U hanger designed to provide an economical and efficient connection for rafter-to-ridge applications. Featuring a unique, field-adjustable seat, this hanger eliminates the need for special orders and helps fix mismatched angles on the job site. Its design allows for installation either before or after the rafter is in place, offering significant versatility for both new construction and retrofit projects.
  • Field-adjustable seat for slope versatility
  • ZMAX coating for superior corrosion resistance
  • Allows installation before or after rafter placement

Features

  • Slopes down from 0 (0:12) to 49 (14:12) and up from 0 to 45
  • Compatible with solid sawn rafters
  • High-placed face fasteners enable rafter to hang below ridge beam
  • Can be installed with nails or Strong-Drive SD Connector screws
Products specifications
model LRU26Z
material Steel
finish ZMAX
gauge 18
rafter_size 2x6
seat_width 1-9/16 in
*
*
*
