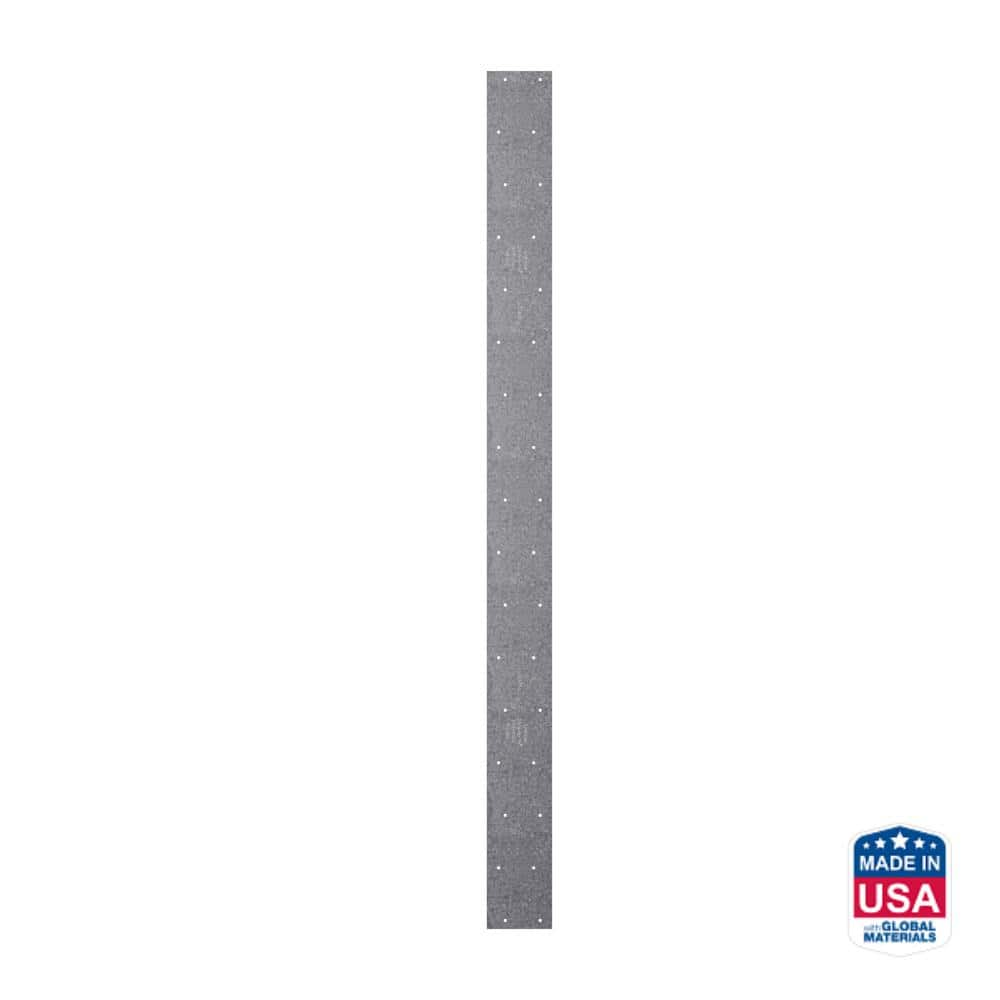

Simpson Strong-Tie LSTI49 Light Strap Tie

Mfr.: Simpson Strong-Tie
Item #: I090777
Mfr. #: LSTI49
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $30.08
i h h

Description

The Simpson Strong-Tie LSTI49 is an 18-gauge light strap tie engineered to resist tension loads in wood framing applications involving I-joists and dimensional lumber. Designed to accommodate the unique geometry of engineered wood products, it provides a reliable load path for truss top chords and floor systems. This load-rated, precut strap features a staggered nail pattern to minimize wood splitting and ensure a secure connection. Its narrow profile and durable galvanized construction make it ideal for reinforcing connections in tight spaces against wind and seismic forces.
  • Galvanized Steel
  • Staggered Nail Pattern

Features

  • 18-gauge steel construction for structural reinforcement
  • Engineered for wood I-joists and open-web trusses
  • Narrow 3-3/4 inch width fits into tight framing spaces
  • Pre-punched holes allow for fast pneumatic nailing

Includes

  • (1) LSTI49 Light Strap Tie
Products specifications
Model No LSTI49
Material 18-Gauge Steel
Finish Galvanized (G90)
Width 3-3/4 inch
Length 49 inch
Fastener Type 10d or 16d Nails
Application Tension Load Resistance
*
*
*
