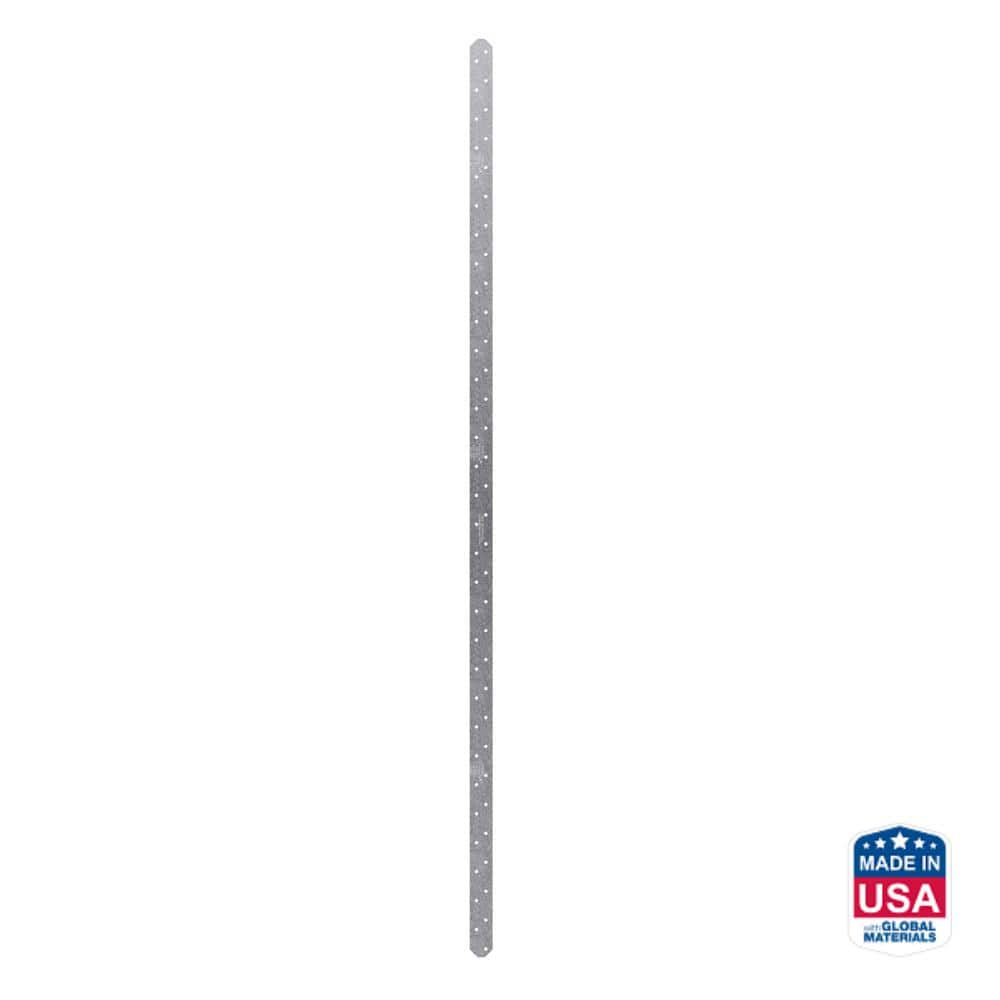

Simpson Strong-Tie MSTA49 49-In. 16-Gauge Galvanized Medium Strap Tie

Mfr.: Simpson Strong-Tie
Item #: I090810
Mfr. #: MSTA49
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $10.04
i h h

Description

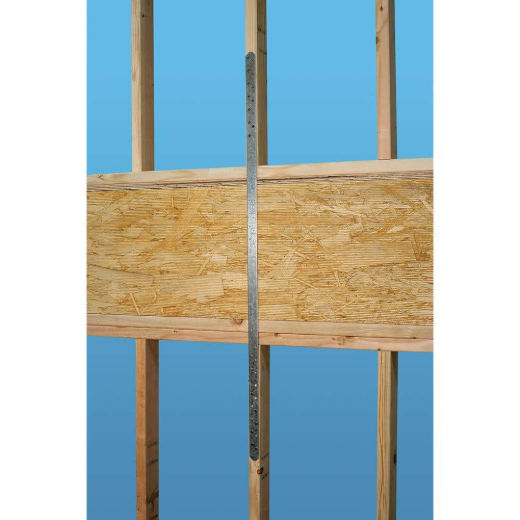

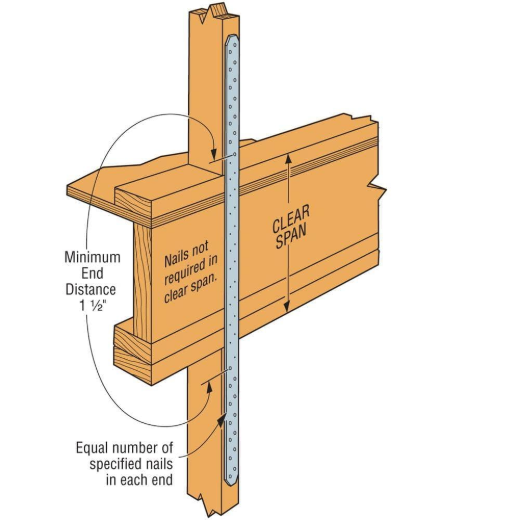

The Simpson Strong-Tie MSTA49 is a high-performance, load-rated strap tie designed to resist tension loads in wood-to-wood uplift applications. This 49-inch medium strap tie is engineered for use on the edge of 2x members, providing essential structural reinforcement for floor-to-floor clear span applications. It is specifically designed to resist wind and seismic forces, ensuring a secure connection in demanding environments.
  • 16-Gauge G90 Galvanized Steel
  • Staggered Nail Pattern
  • Load-Rated for Seismic and Wind Forces

Features

  • Precut design allows for quick and easy installation without the need for field fabrication.
  • Staggered nail pattern helps to minimize wood splitting for a stronger connection.
  • Optimized for edge-of-member installation on standard 2x framing.
  • G90 galvanized finish provides superior corrosion resistance for structural durability.

Includes

  • (1) MSTA49 Medium Strap Tie
Products specifications
Model No. MSTA49
Length 49 inch
Width 1-1/4 inch
Thickness 16 Gauge (54 mil)
Material Steel
Finish G90 Galvanized
Fastener Type 10d common or #9 x 1-1/2 inch SD Screws
Fastener Quantity 26
*
*
*
