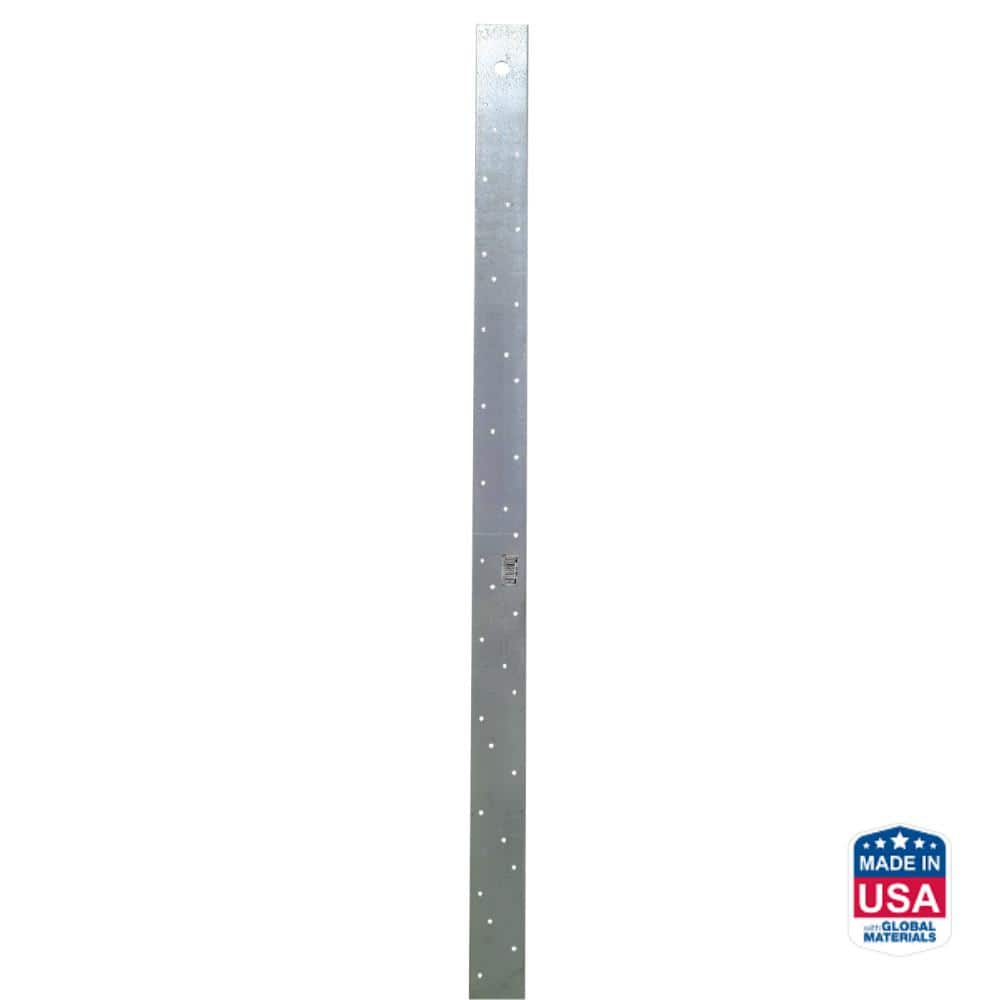

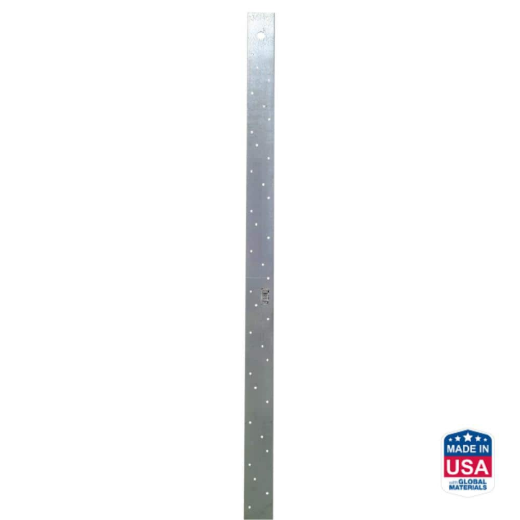

Simpson Strong-Tie MSTI60 Medium Strap Tie

Mfr.: Simpson Strong-Tie
Item #: I090829
Mfr. #: MSTI60
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $47.09
i h h

Description

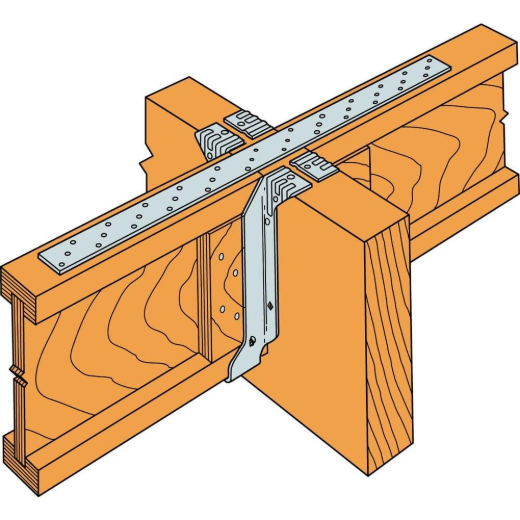

The Simpson Strong-Tie MSTI60 is a high-capacity, load-rated strap tie engineered to resist tension loads in a variety of structural wood applications. Featuring a staggered nail pattern, this medium-duty strap is specifically designed to minimize wood splitting during installation on wood I-joists and composite lumber. Its G90 galvanized finish provides excellent corrosion resistance, ensuring a long-lasting and reliable connection for reinforcing joints and plate intersections.
  • G90 Galvanized Finish
  • Staggered Nail Pattern

Features

  • Load-rated for structural reinforcement and tension resistance.
  • 3-inch nail spacing reduces the likelihood of wood splitting.
  • Suitable for diaphragm decking and wood chord trusses.
Products specifications
Model No MSTI60
Length 60 inch
Width 2-1/16 inch
Material Steel
Gauge 12
Finish G90 Galvanized
Fasteners Required (60) 0.148 x 1.5 Nails
Load Capacity 5,070 lbs (DF/SP)
*
*
*
