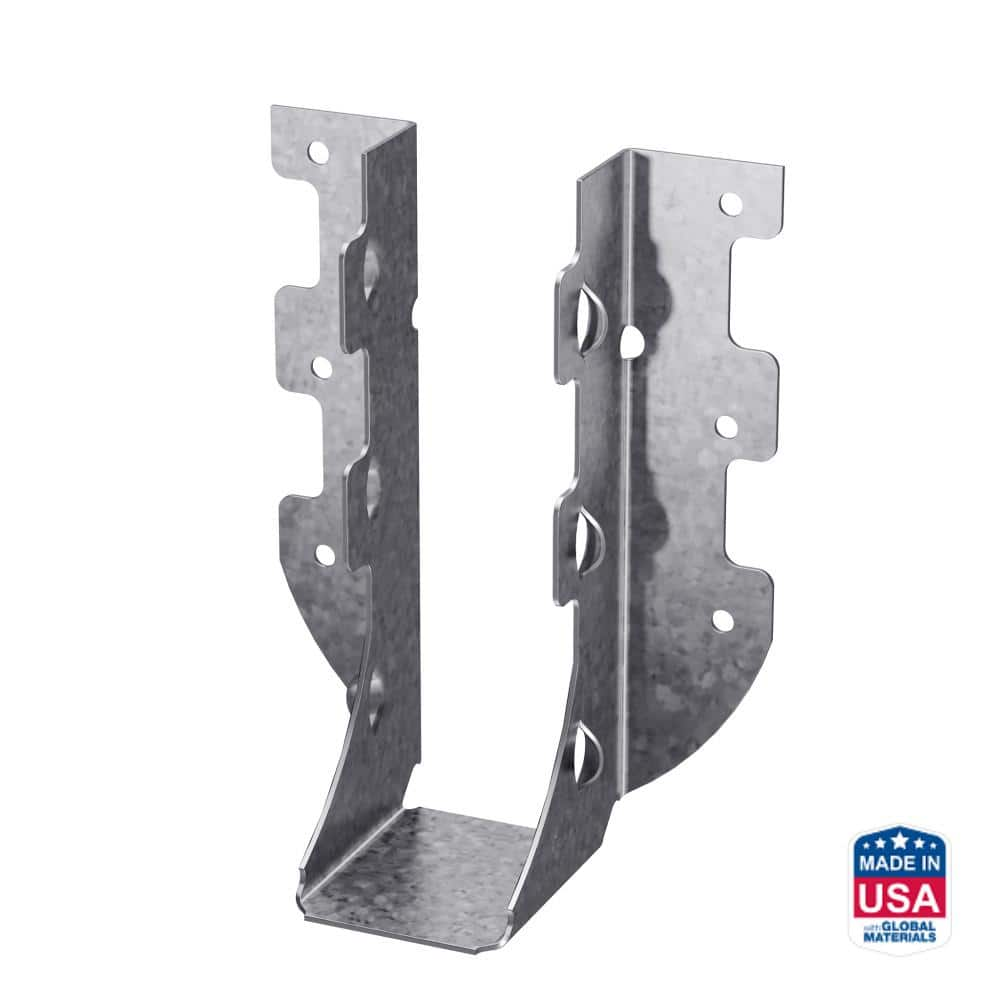

Simpson Strong-Tie MUS26 2x6 Face Mount Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091916
Mfr. #: MUS26
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $4.17
i h h

Description

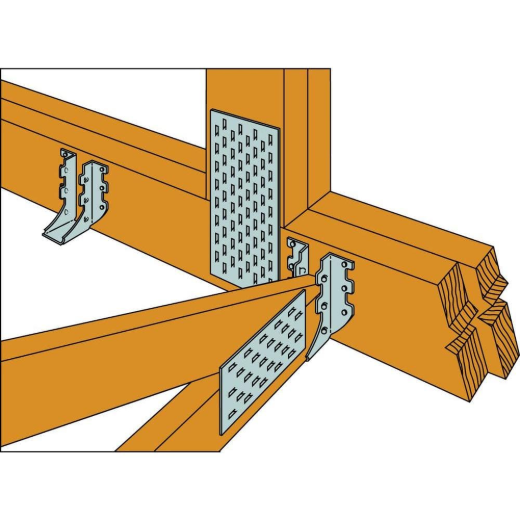

The Simpson Strong-Tie MUS26 is a face-mount joist hanger specifically engineered for medium-load truss applications. It features innovative double-shear nailing, which distributes the load through two points on each joist nail to deliver superior structural strength. This design allows for faster, more efficient installation while maintaining high load and bearing capacity. The hanger is a code-compliant, low-cost solution ideal for various residential and commercial framing projects.
  • Double-Shear Nailing Design
  • G90 Galvanized Finish

Features

  • Designed for medium-load truss applications
  • Allows for the use of fewer nails for efficient installation

Includes

  • 1 x MUS26 Joist Hanger
Products specifications
Model MUS26
Material 18 Gauge Steel
Finish G90 Galvanized
Joist Size 2 in x 6 in
Height 5-3/16 in
Width 1-9/16 in
Min Heel Height 4-11/16 in
Fasteners (Header) (6) 0.148 in x 3 in nails
Fasteners (Joist) (6) 0.148 in x 3 in nails
*
*
*
