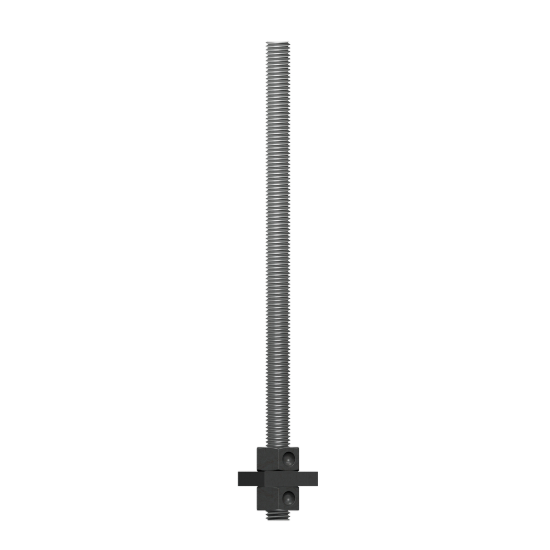

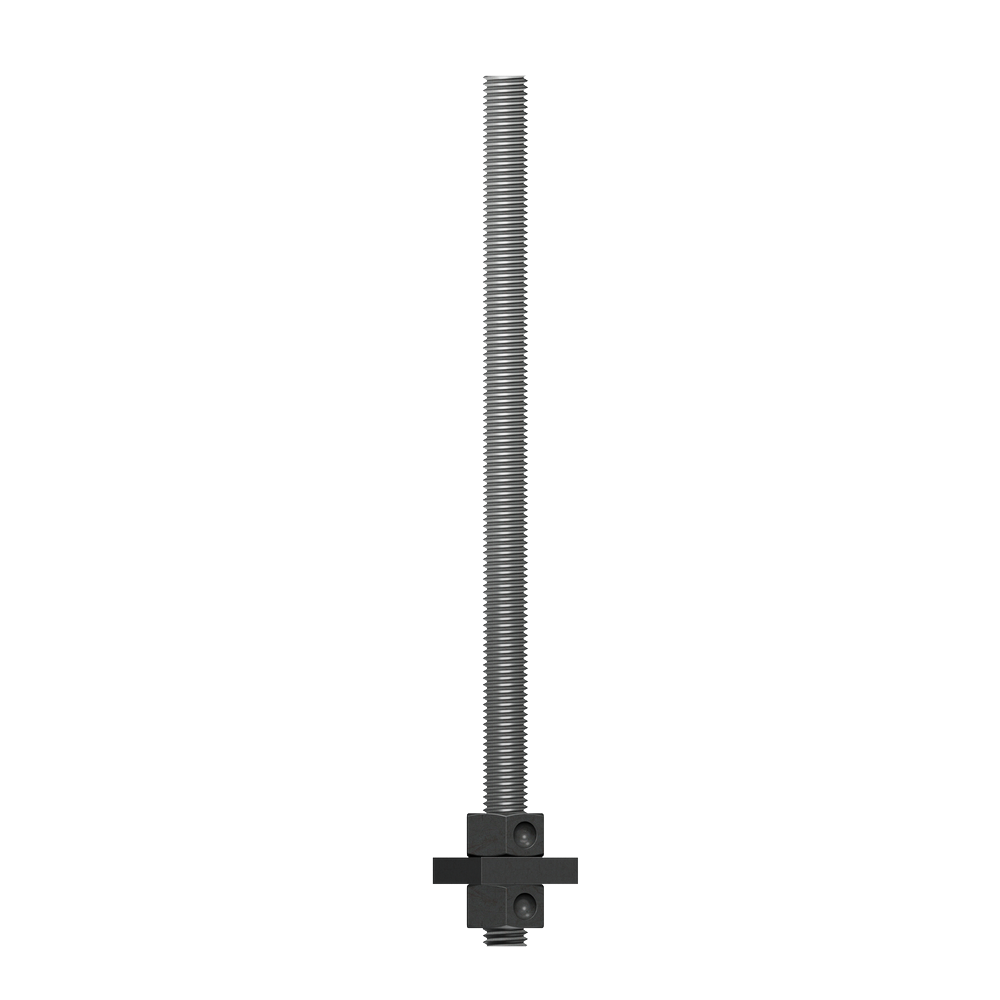

Simpson PAB 5/8" x 12" Pre-Assembled Anchor Bolt w/ Washer

Mfr.: Simpson Strong-Tie
Item #: I093348
Mfr. #: PAB5-12
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $35.40
i h h

Description

The Simpson Strong-Tie PAB anchor bolt is a versatile cast-in-place anchor bolt ideal for high-tension-load applications, such as rod systems and shearwalls. It features a plate washer at the embedded end, sandwiched between two fixed hex nuts. The PAB also has a head stamp for easy identification after the pour.
  • Available in diameters from 1/2 in. to 1-1/4 in. and lengths from 12 in. to 36 in. (in 6 in. increments)
  • Head stamp contains the Simpson Strong-Tie No Equal sign and diameter designation
  • Rod diameter: 5/8 in.
  • Rod length: 12 in.
  • Material: Steel - ASTM F1554 Grade 36, A36 or A307; Fu = 58 ksi

Features

  • Available in diameters from 1/2 in. to 1-1/4 in. and lengths from 12 in. to 36 in. (in 6 in. increments)
  • Head stamp contains the Simpson Strong-Tie No Equal sign and diameter designation
  • Rod diameter: 5/8 in.
  • Rod length: 12 in.
  • Material: Steel - ASTM F1554 Grade 36, A36 or A307; Fu = 58 ksi

Specifications


Rod diameter5/8 inchRod length12 inch
MaterialSteel - ASTM F1554 Grade 36, A36 or A307; Fu = 58
Products specifications
Anchor Diameter 5/8 in
Anchor Type Cast-In-Place
Code Listing ASTM F1554 Grade 36
Country of Origin Varies (subject to change)
Finish / Coating Zinc Plated
Head Style Pre-Assembled with Washer & Nut
Material Carbon Steel
Overall Length 12 in
*
*
*
