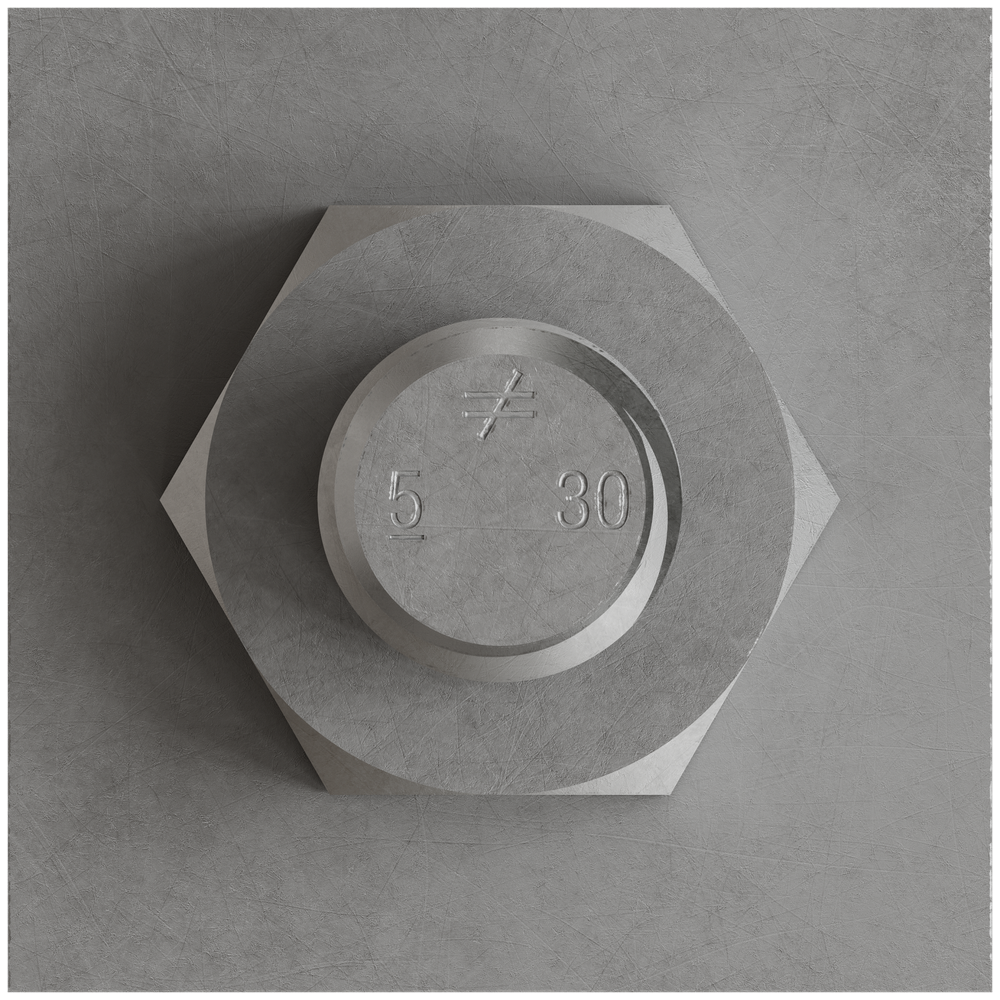

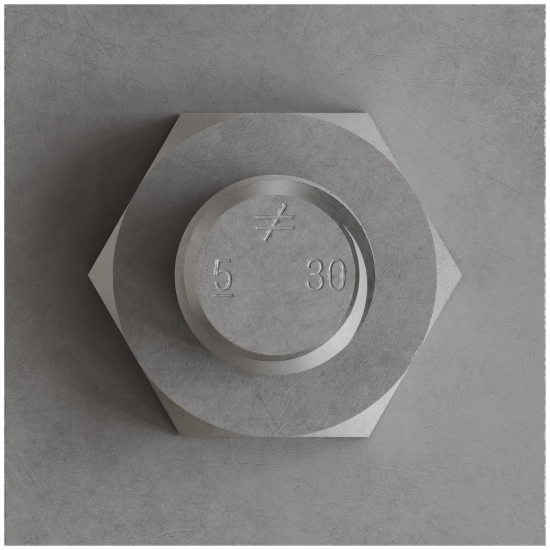

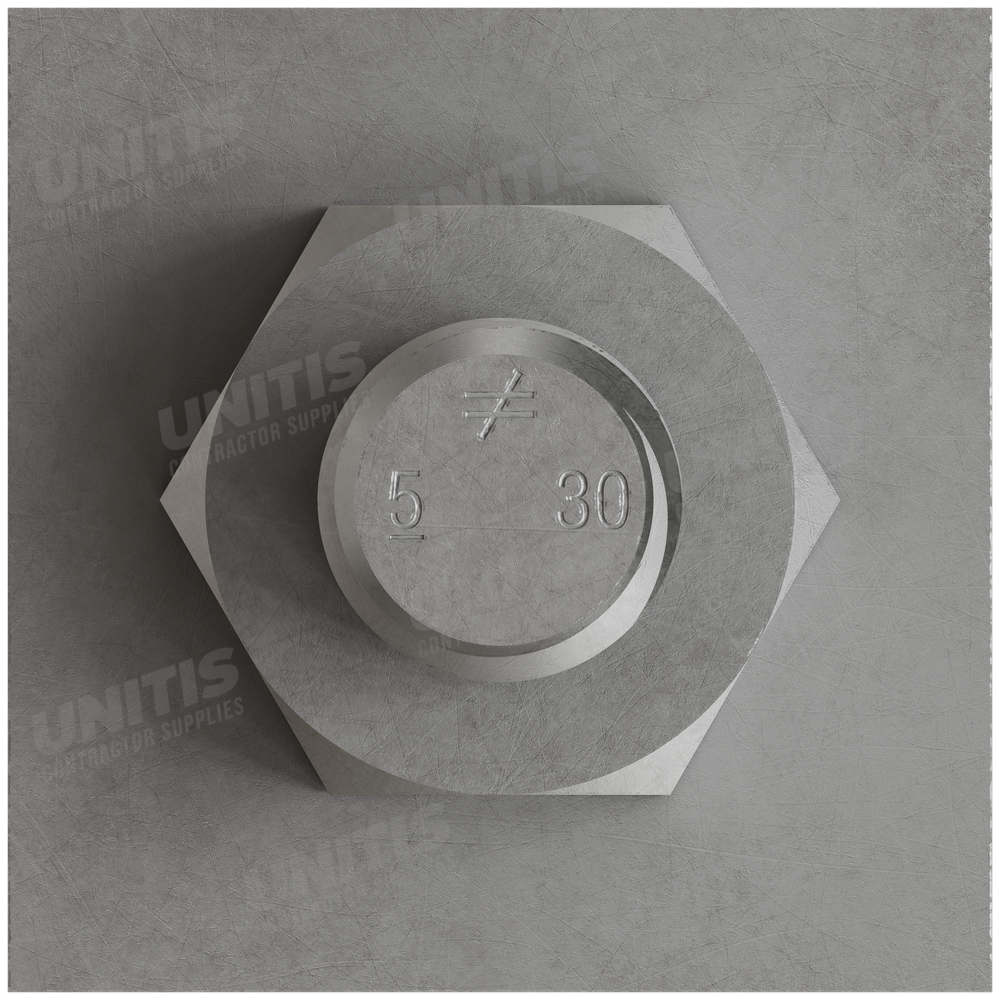

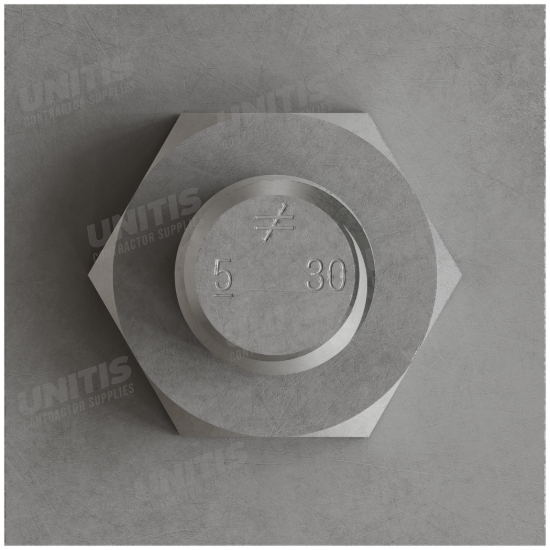

Simpson PAB 5/8" x 30" Pre-Assembled Anchor Bolt w/ Washer

Mfr.: Simpson Strong-Tie
Item #: I093352
Mfr. #: PAB5-30
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $41.44
i h h

Description

5/8 inch diameter x 30 inch length pre-assembled anchor bolt with washer. Designed for anchorage in concrete per ACI 318.
  • Pre-assembled with washer
  • 5/8 inch diameter, 30 inch length
  • For cracked concrete with no supplementary reinforcement
  • Compliant with ACI 318-19

Features

  • Pre-assembled for easy installation
  • Plate washer develops bolt capacity
  • Suitable for seismic and wind loads
  • Available in various lengths up to 36 inch

Includes

  • Anchor bolt with attached washer

Specifications


Model No.PAB5-30Diameter5/8 inch
Length30 inchMaterialSteel
WasherPlate washer includedStandardACI 318-19
ApplicationConcrete anchorage
Products specifications
Anchor Diameter 5/8 in
Anchor Type Cast-In-Place
Code Listing ASTM F1554 Grade 36
Country of Origin Varies (subject to change)
Finish / Coating Zinc Plated
Head Style Pre-Assembled with Washer & Nut
Material Carbon Steel
Overall Length 30 in
*
*
*
