Simpson RCKWS 3-" Kneewall Connector Stiffener - 10/box

Mfr.: Simpson Strong-Tie
Item #: I093595
Mfr. #: RCKW3S-R10
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $92.84
i h h

Description

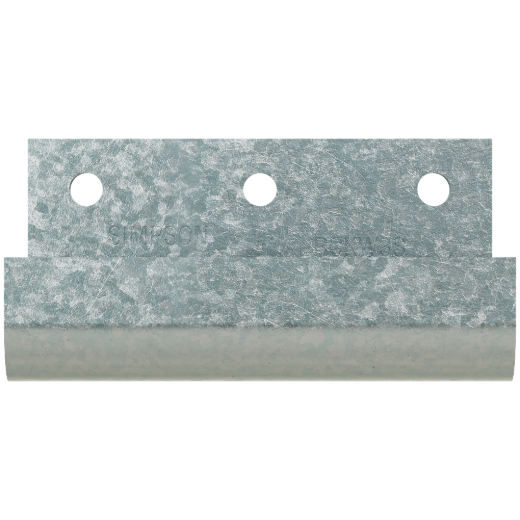

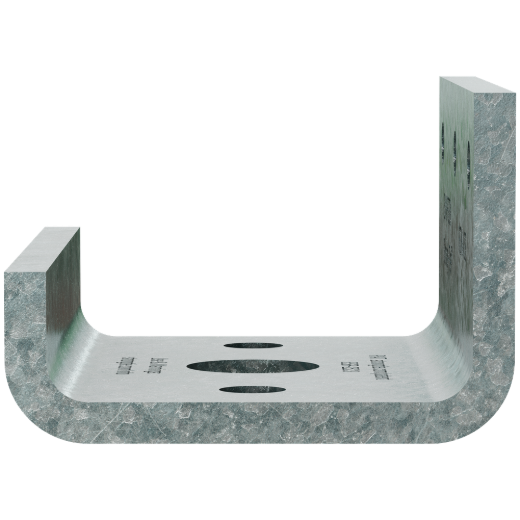

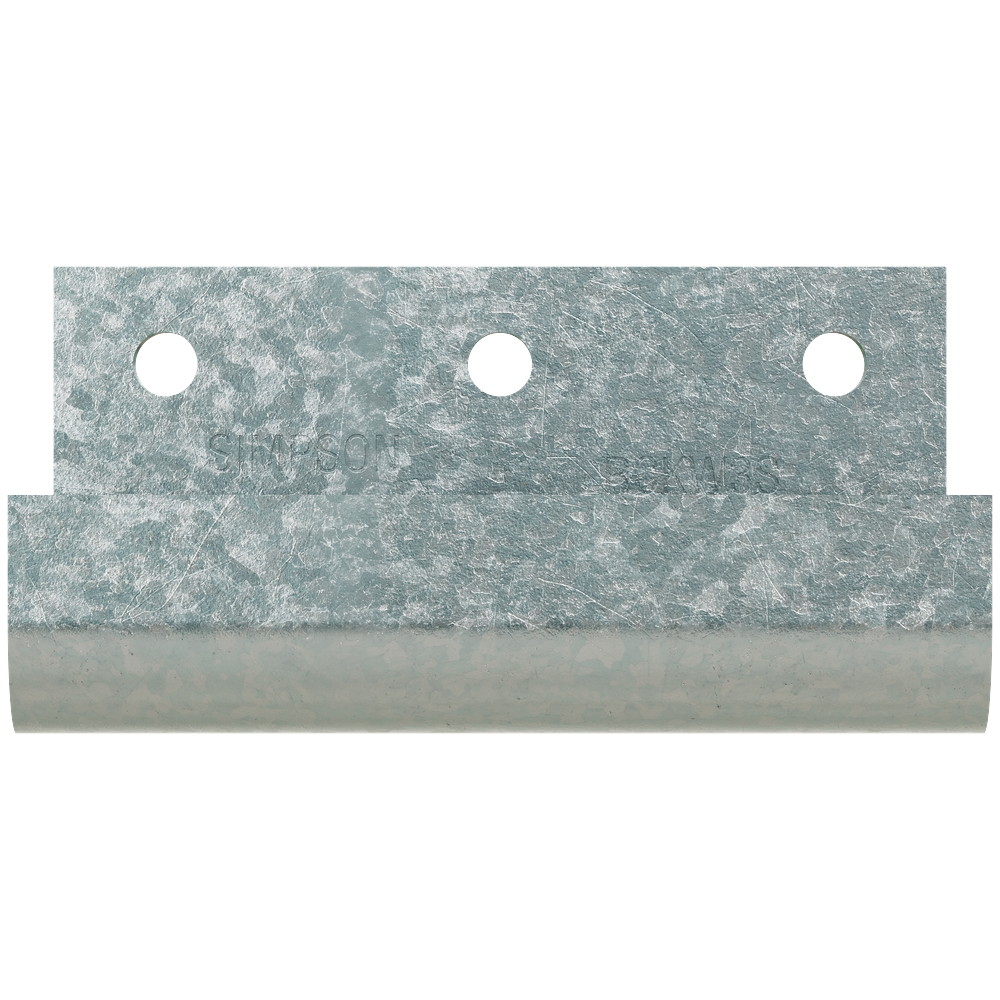

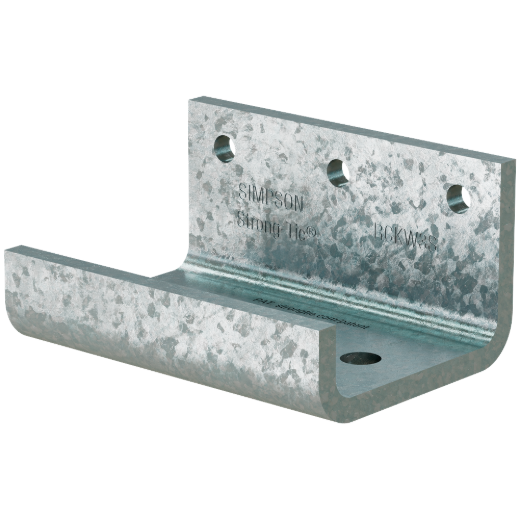

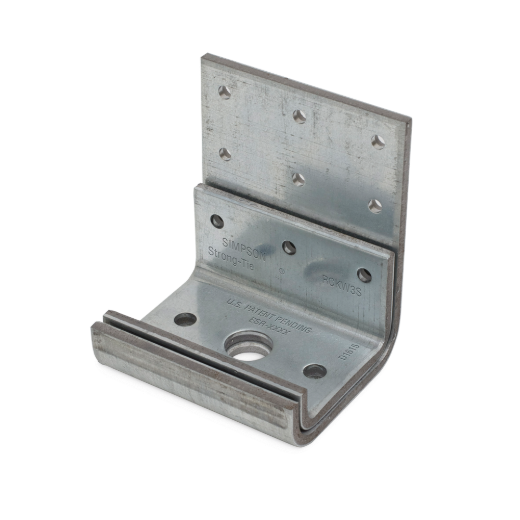

The Simpson Strong-Tie RCKW is a heavy 171 mil (7 ga.) rigid connector that has been developed to resist overturning moment at the base of exterior kneewalls and parapets as well as interior partial-height walls or overhead ribbon window conditions. These connectors offer a unique small and large anchor-hole pattern that permits anchorage to both concrete and structural steel. If load requires more capacity, a stiffener, the RCKWS can be added. The RCKWS is a heavy 171 mil (7 ga.) stiffener that nests onto the RCKW clip. The screw holes and anchor holes in the stiffener line up with those in the RCKW clip, making fastener and anchor installation a snap. The RCKW clip and RCKWS stiffener are sold separately.
  • Heavy 171 mil (7 ga.) rigid connector
  • Resists overturning moment at base of kneewalls, parapets, partial-height walls, and ribbon window conditions
  • Unique small and large anchor-hole pattern for concrete and structural steel anchorage
  • Optional RCKWS stiffener available for increased capacity

Features

  • RCKW3S has a large single bolt hole in the center for 3-5/8 in. framing
  • Anchorage legs incorporate stiffened flanges, improving overturning moment resistance
  • Large-diameter anchor hole accommodates 1/2-in. diameter concrete screw anchors and wedge anchors, such as the Simpson Strong-Tie Titen HD heavy-duty screw anchor and the Strong-Bolt 2 wedge anchor
  • Additional smaller-diameter anchor holes enable attachment to structural steel through use of #12 self-drilling screws
  • Attachment to CMU can be achieved with Titen HD or Titen Turbo concrete and masonry screw
  • Width: 3 in.

Specifications


Width3 inchMaterial Thickness171 mil (7 ga.)
Products specifications
width 3 inch
*
*
*
