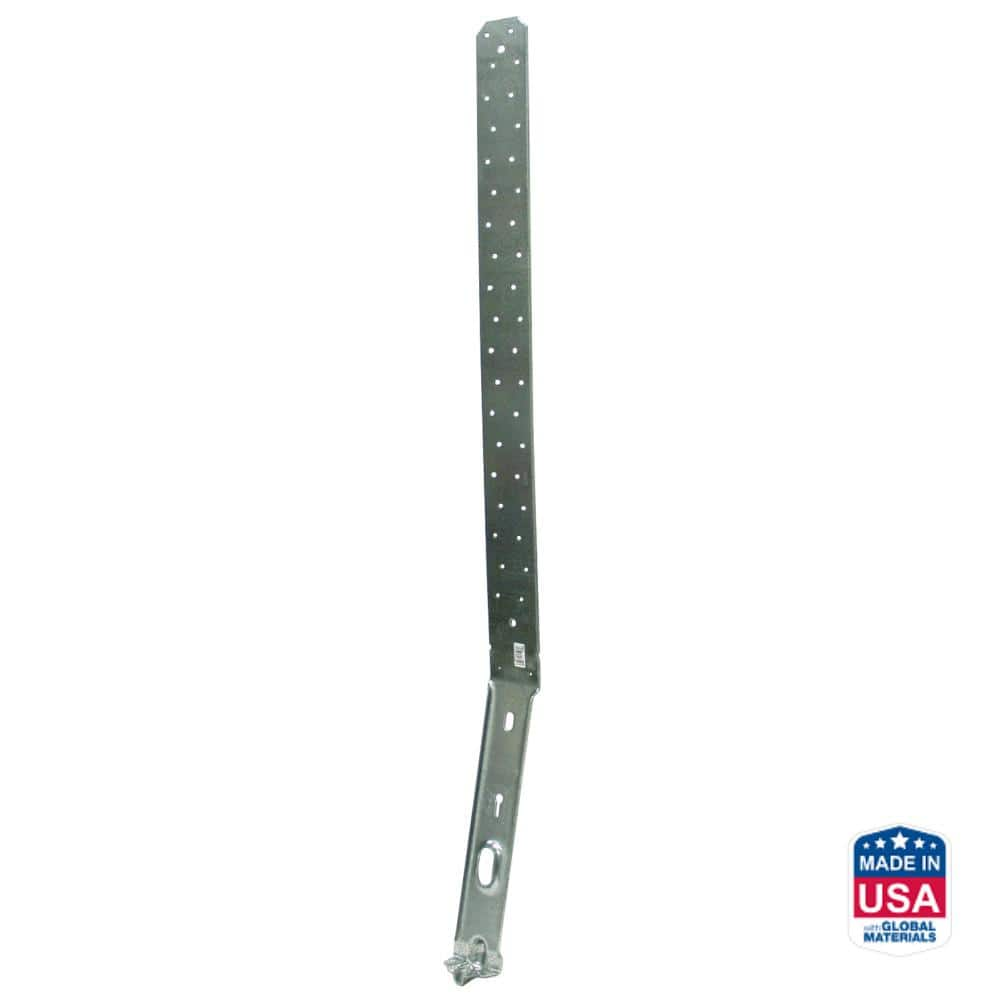

Simpson Strong-Tie Rim-Joist Strap-Tie Holdown STHD14RJ

Mfr.: Simpson Strong-Tie
Item #: I090878
Mfr. #: STHD14RJ
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $34.55
i h h

Description

The Simpson Strong-Tie STHD14RJ is a high-load, cast-in-place strap-tie holdown designed specifically for wood-framed construction with rim joists. Its unique design offers enhanced stability during the concrete pour to prevent parallel and perpendicular movement, ensuring accurate positioning. This embedded connector features a staggered nail pattern to help minimize wood splitting while providing a high-capacity structural connection.
  • Galvanized G90 Coating
  • High-Load Capacity

Features

  • Staggered nail pattern allows for fastening to the edges of double 2x members while reducing wood splitting.

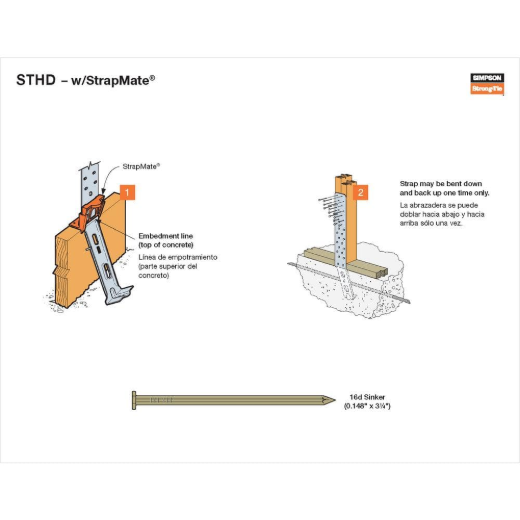

  • Slots below the embedment line increase front-to-back concrete bond and help reduce the possibility of spalling.

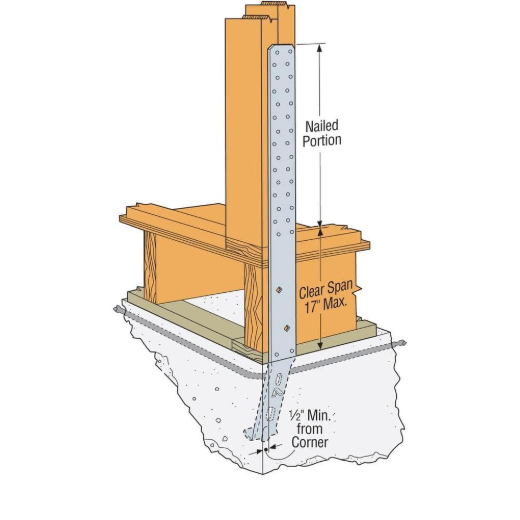

  • Rim joist model accommodates up to a 17-inch clear span without any loss of strap nailing.
  • Countersunk nail slots provide a lower nail head profile for a cleaner installation.

Includes

  • (1) STHD14RJ Strap-Tie Holdown
Products specifications
Model No. STHD14RJ
Material Carbon Steel
Finish Galvanized (G90)
Gauge 12 ga.
Strap Length 39-5/8 inch
Total Length 45-1/2 inch
Width 3 inch
Clear Span Up to 17 inch
Fasteners 30-16d Sinkers
*
*
*
