  • Simpson Strong-Bolt 2 - 1/2" x 5-1/2" Type 304 Stainless-Steel Wedge Anchor - 25/box

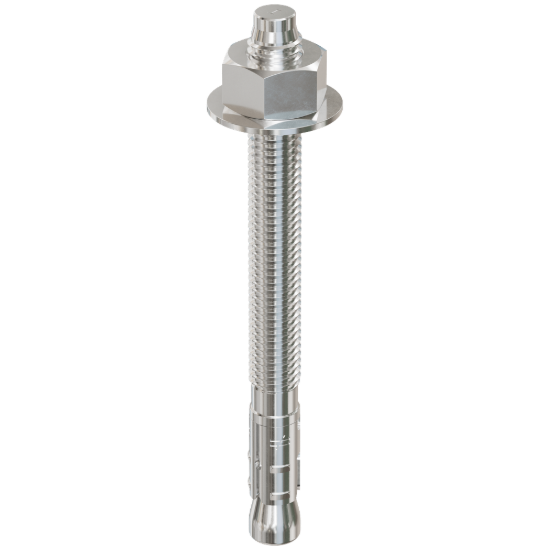

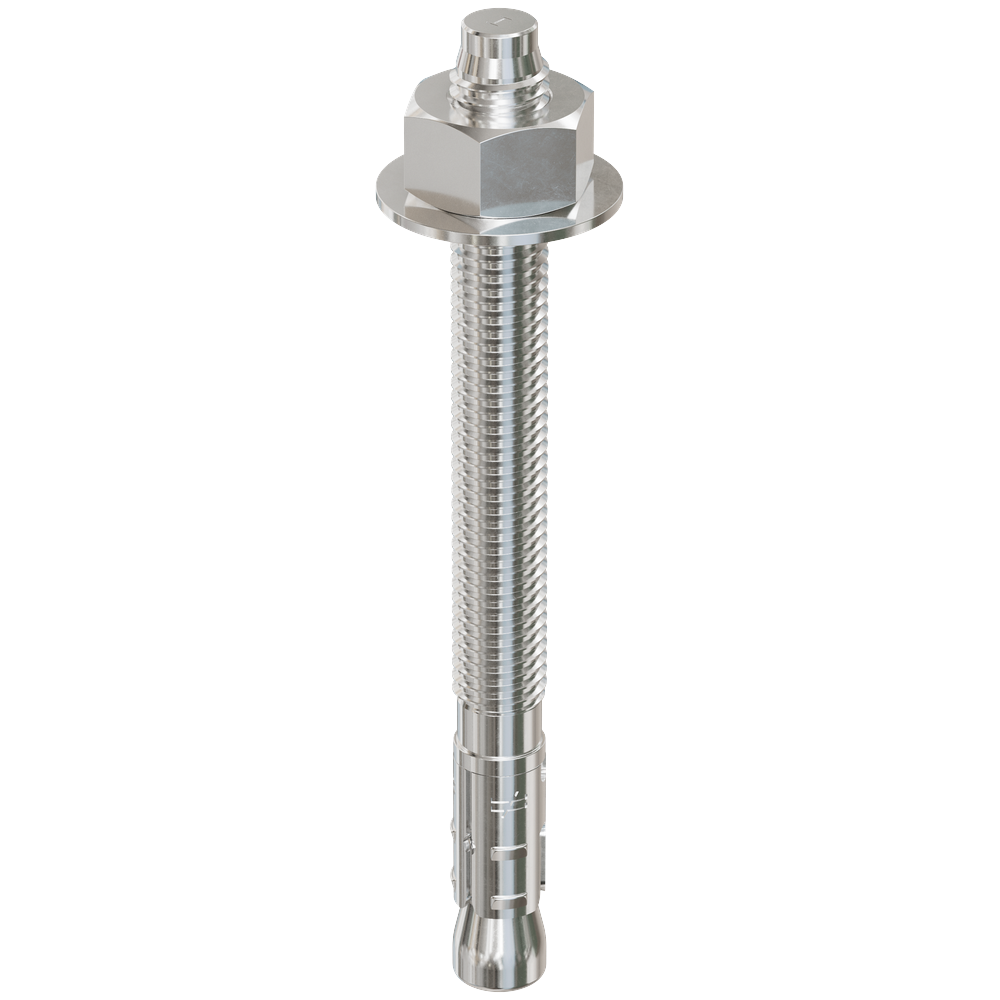

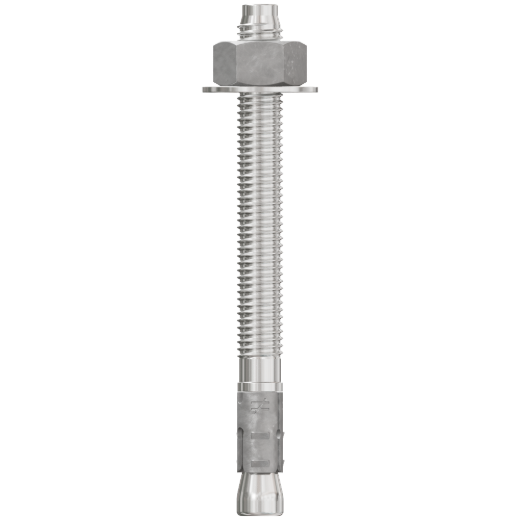

Simpson Strong-Bolt 2 - 1/2" x 5-1/2" Type 304 Stainless-Steel Wedge Anchor - 25/box

Mfr.: Simpson Strong-Tie
Item #: I093870
Mfr. #: STB2-50512S4F25
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $193.40
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The Strong-Bolt 2 wedge anchor is a high-performance expansion anchor for cracked and uncracked concrete, with dual undercutting embossments for secondary expansion in seismic conditions. It offers long-lasting corrosion resistance for various service environments.
  • Chamfered top prevents mushrooming during installation
  • Qualified for static and seismic loading (seismic design categories A through F)
  • Suitable for horizontal, vertical and overhead applications
  • Qualified for minimum concrete thickness of 3 1/4 inch and lightweight concrete-over-steel deck

Features

  • Type 304 stainless steel construction
  • Fully assembled design
  • Dual undercutting embossments for crack resistance
  • Corrosion resistant for wide service environments

Specifications


Model NumberSTB2-50512S4F25Diameter1/2 inch
Length5-1/2 inchMaterialType 304 Stainless Steel
Anchor TypeWedge AnchorPackage Quantity25 per box
*
*
*
