Simpson Strong-Bolt 2 - 3/8" x 3-3/4" Type 304 Stainless-Steel Wedge Anchor - 50/box

Mfr.: Simpson Strong-Tie
Item #: I093819
Mfr. #: STB2-37334S4F50
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $192.74
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

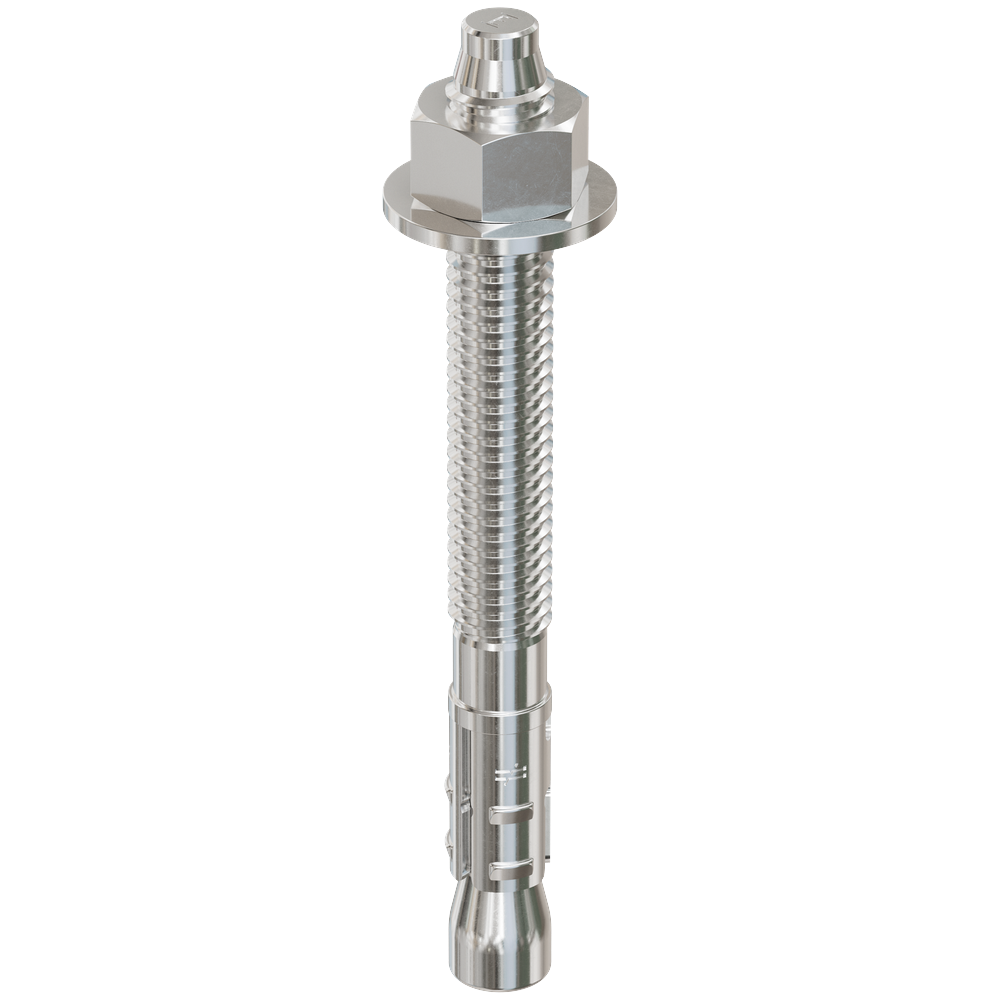

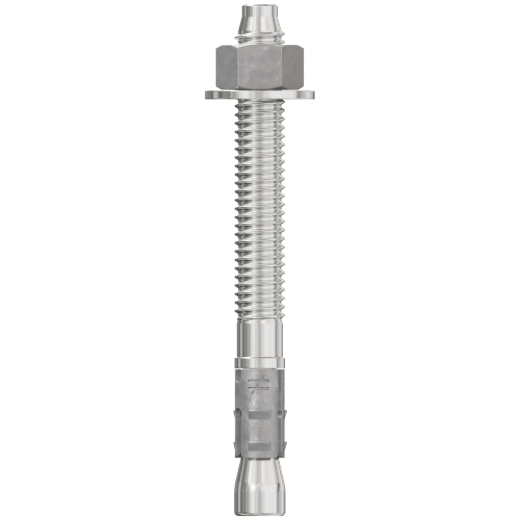

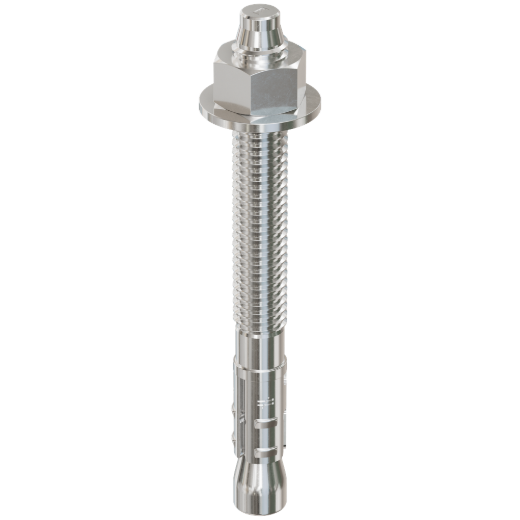

Fully assembled wedge anchor made of Type 304 stainless steel. Designed for concrete anchoring with a 3/8 inch diameter and 3-3/4 inch length.
  • Type 304 Stainless Steel construction
  • 3/8 inch diameter, 3-3/4 inch length
  • Drill bit diameter: 3/8 inch
  • Thread length: 2-5/16 inch
  • Packaged in boxes of 50

Features

  • Fully assembled with nut, washer, and clip
  • Corrosion-resistant Type 304 stainless steel
  • Suitable for indoor and outdoor applications
  • Wedge anchor design for secure hold in concrete

Includes

  • Anchor body (Type 304 SS)
  • Nut (Type 304 SS)
  • Washer (Type 304 SS)
  • Clip (Type 304 or 316 SS)

Specifications


Model No.STB2-37334S4F50DescriptionFully Assembled
CoatingMaterialType 304 Stainless SteelSize (in.)3/8 x 3 3/4
Drill Bit Dia. (in.)3/8Thread Length (in.)2 5/16
Component Material Anchor BodyType 304 Stainless SteelComponent Material NutType 304 Stainless Steel
Component Material WasherType 304 Stainless SteelComponent Material ClipType 304 or Type 316 Stainless Steel
Packaging Qty.50
Products specifications
Anchor Diameter 3/8 in
Anchor Type Wedge Anchor
Code Listing ICC-ES ESR-3037; Body per ASTM A276 Type 304
Country of Origin Varies (subject to change)
Finish / Coating Type 304 Stainless Steel
Material Type 304 Stainless Steel
Overall Length 3-3/4 in
Pack Quantity 50 per box
*
*
*
