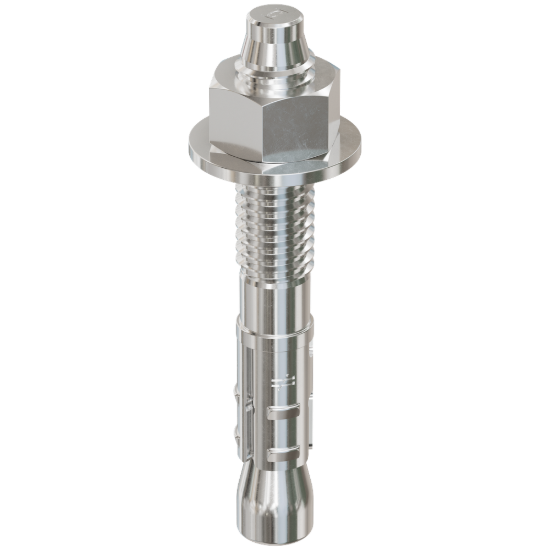

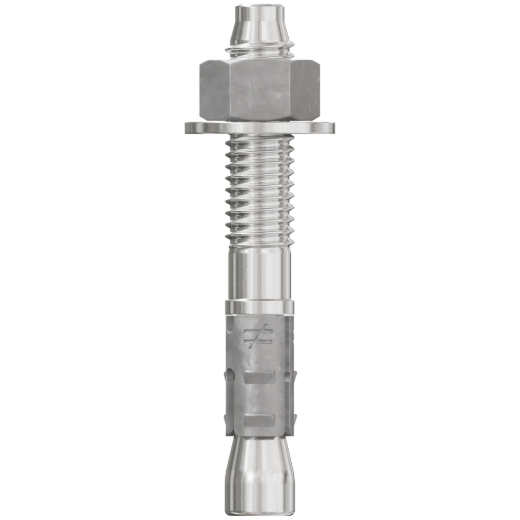

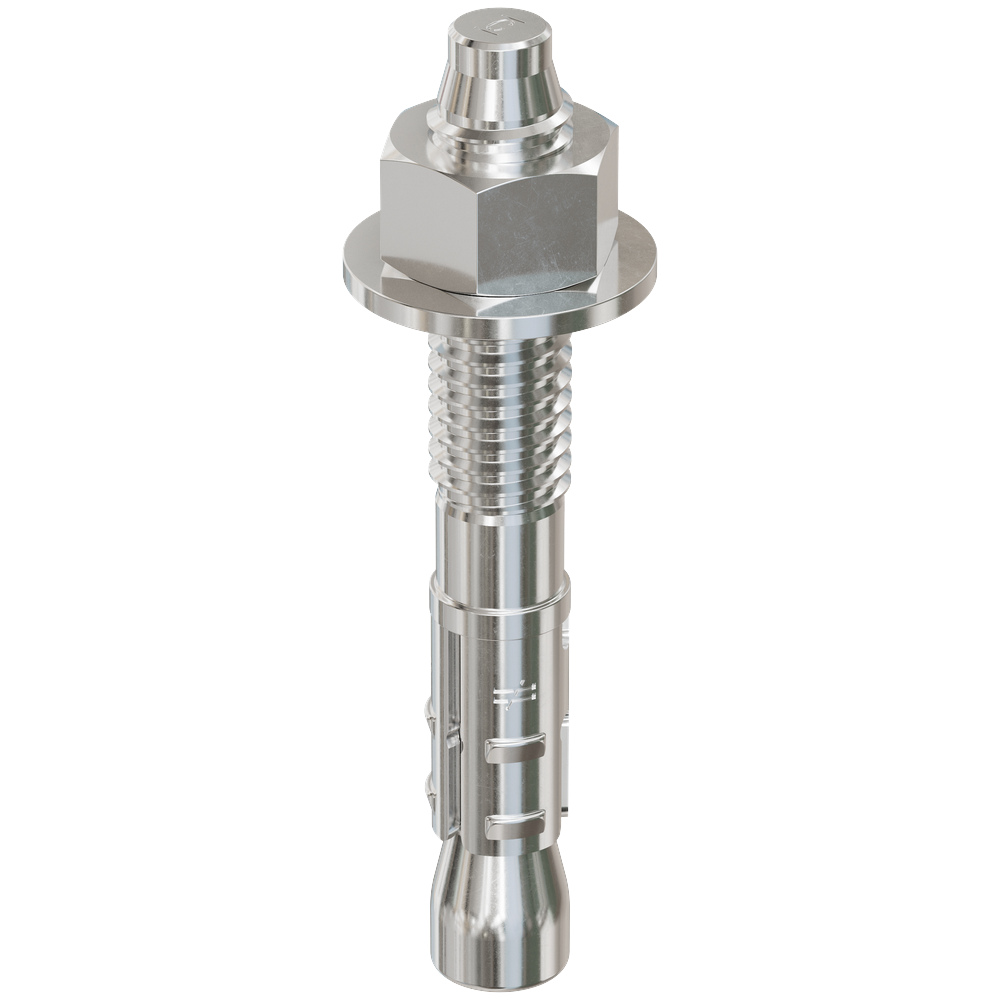

Simpson Strong-Bolt 2 - 3/8" x 2-3/4" Type 304 Stainless-Steel Wedge Anchor - 50/box

Mfr.: Simpson Strong-Tie
Item #: I093800
Mfr. #: STB2-37234S4F50
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $170.86
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The Simpson Strong-Bolt 2 wedge anchor is a high-performance, stainless-steel mechanical anchor designed for cracked and uncracked concrete. It features a 3/8 inch diameter and 2-3/4 inch length, with Type 304 stainless steel for corrosion resistance. Ideal for outdoor or corrosive environments, it comes in a box of 50.
  • Type 304 stainless steel for corrosion resistance
  • For cracked and uncracked concrete
  • 3/8 inch diameter, 2-3/4 inch length
  • 50 anchors per box

Features

  • Approved for cracked concrete (ICC-ES ESR-3031)
  • Expansion wedge design for high holding values
  • Drill bit size: 3/8 inch
  • Minimum embedment depth: 1-1/2 inch
  • Maximum fixture thickness: 1-1/4 inch

Includes

  • 50 wedge anchors
  • Installation instructions

Specifications


Diameter3/8 inchLength2-3/4 inch
MaterialType 304 Stainless SteelFinishPlain (stainless)
Box Quantity50Drill Bit Size3/8 inch
Min Embedment1-1/2 inchMax Fixture Thickness1-1/4 inch
Thread Length1-1/4 inchHead TypeHex nut
StandardsICC-ES ESR-3031Concrete TypesCracked & uncracked
*
*
*
