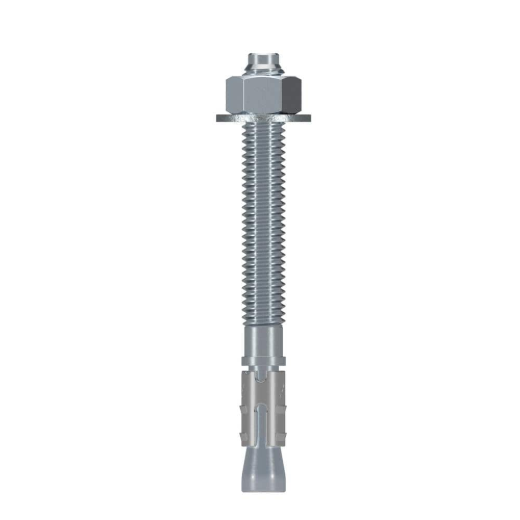

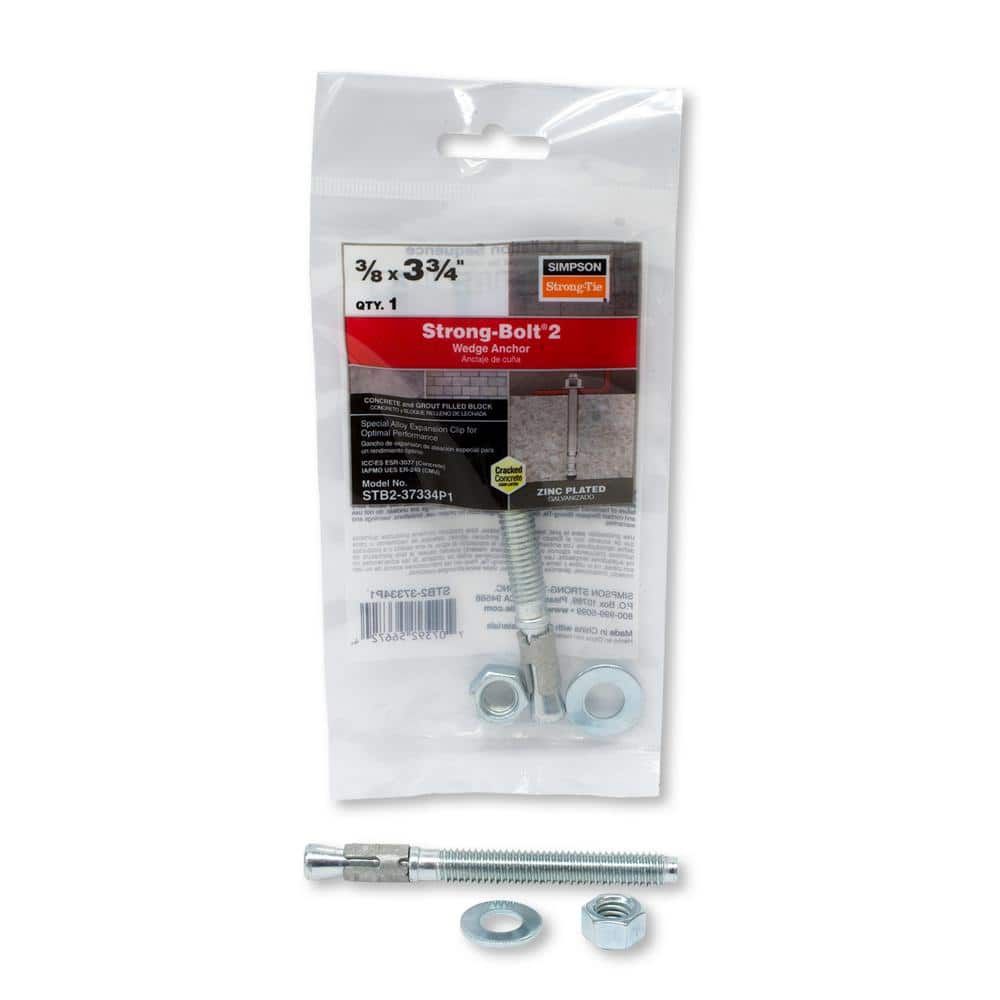

Simpson Strong-Tie Strong-Bolt 2 Wedge Anchor 3/8 inch x 3-3/4

Mfr.: Simpson Strong-Tie
Item #: I093818
Mfr. #: STB2-37334P1
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $2.16
i h h

Description

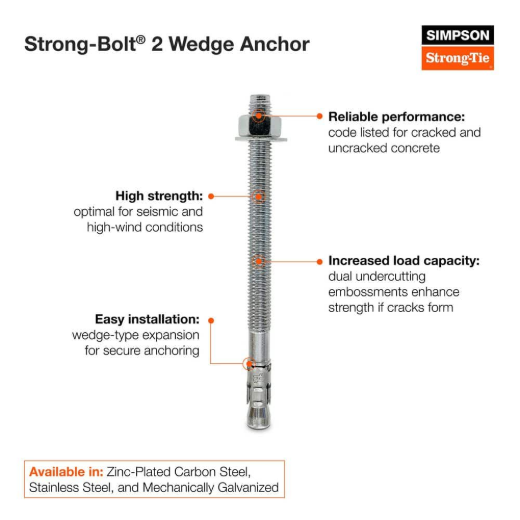

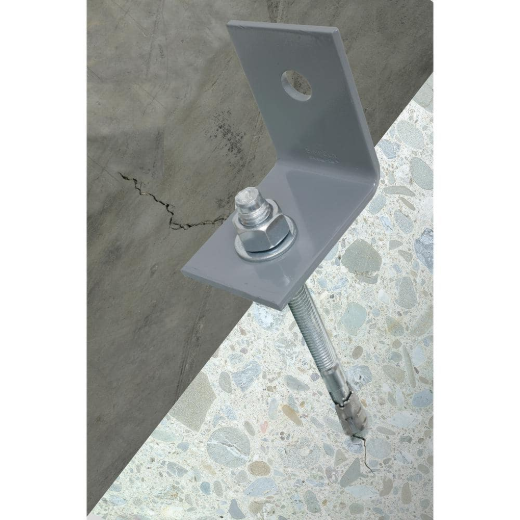

The Simpson Strong-Tie STB2-37334P1 Strong-Bolt 2 is a high-performance wedge anchor engineered for superior strength and reliability in both cracked and uncracked concrete and masonry applications. It is designed to excel in adverse conditions such as seismic or high-wind environments, ensuring robust anchorage and safety under pressure. This anchor is an optimal choice for demanding construction projects requiring dependable performance. Elevate your construction standards with the Strong-Bolt 2engineered for performance, built for safety.

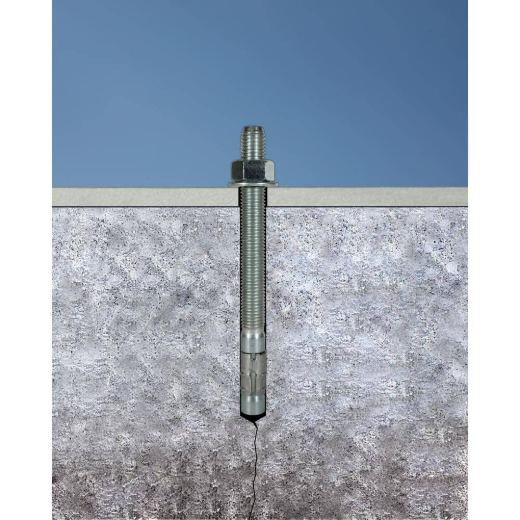

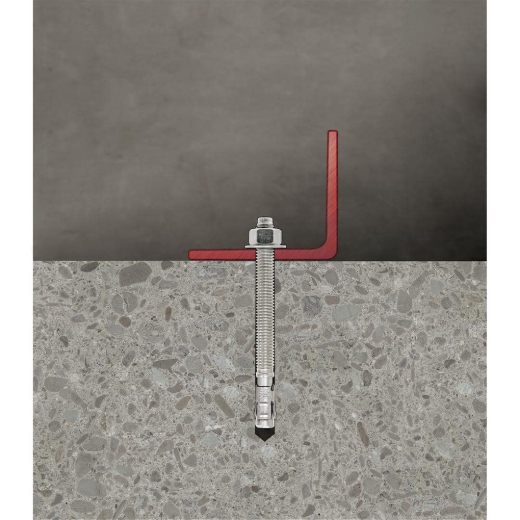

  • Engineered for cracked and uncracked concrete and masonry
  • Suitable for seismic and high-wind conditions

Features

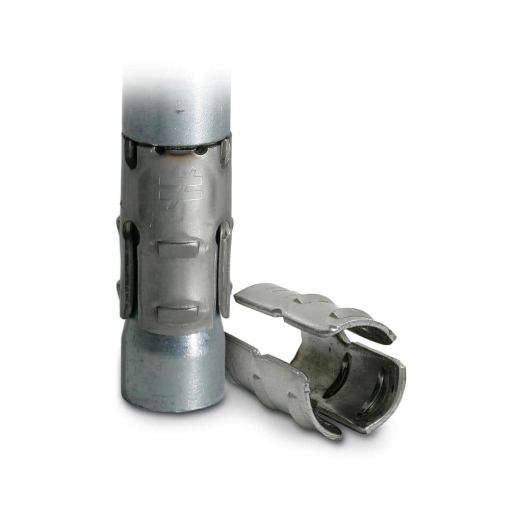

  • Dual undercutting embossments on each clip segment enable secondary expansion, increasing load capacity if the hole expands.

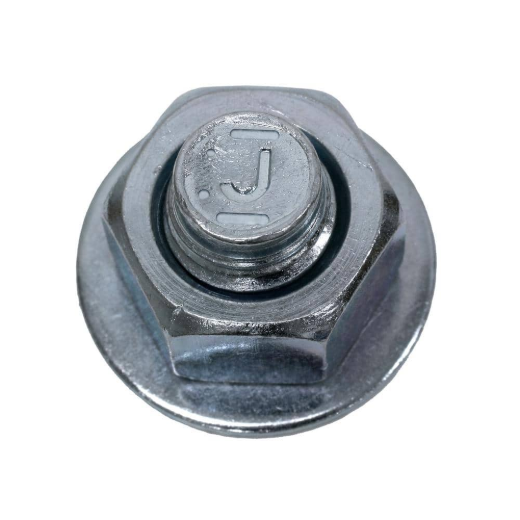

  • Chamfered top designed to prevent mushrooming during installation.
  • Qualified for static and seismic loading conditions (seismic design categories A through F).

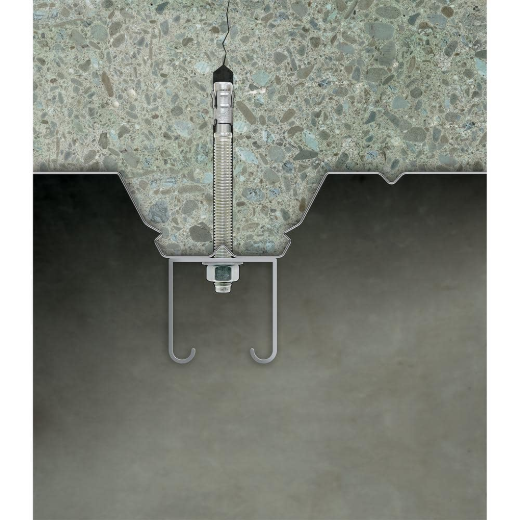

  • Suitable for horizontal, vertical, and overhead applications.
  • Tested per ACI355.2 and AC193.

Includes

  • 1x Strong-Bolt 2 Wedge Anchor
Products specifications
Diameter 3/8 inch
Length 3-3/4 inch
Finish Zinc Plated
Material Carbon Steel
Drill bit size 3/8 inch

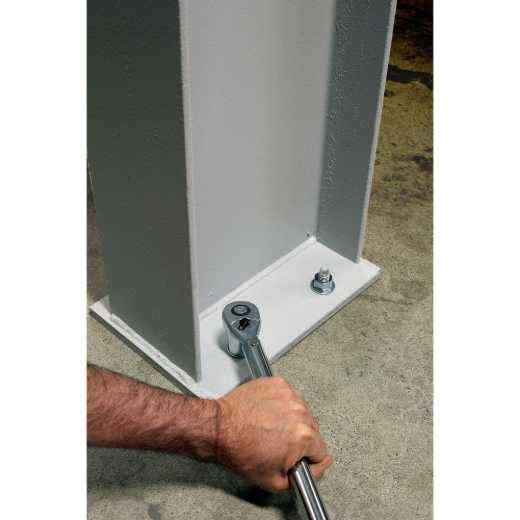

Installation torque 30 ft. lbs
Max Work Thickness 3-1/4 inch
Min Embedment Depth 1-7/8 inch
Tensile Strength 115000 psi
Shear Strength 1800 lb
*
*
*
