Simpson Strong-Bolt 2 - 3/8" x 7" Type 316 Stainless-Steel Wedge Anchor - 50/box

Item #: I093831
Mfr. #: STB2-37700S6F50
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $579.52
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

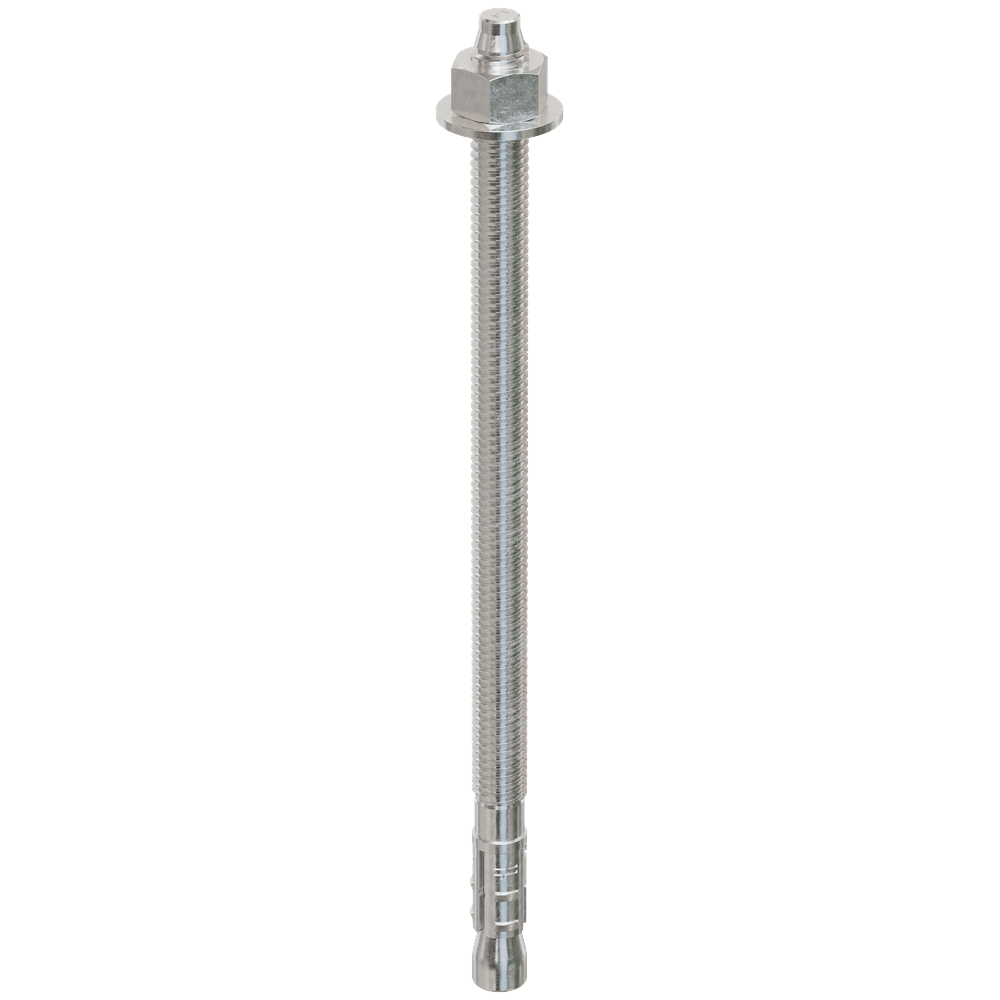

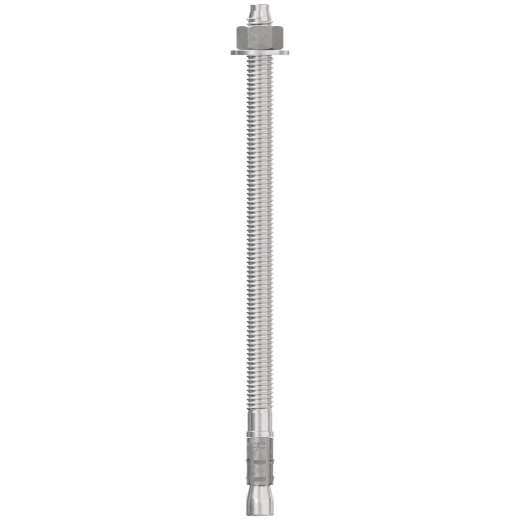

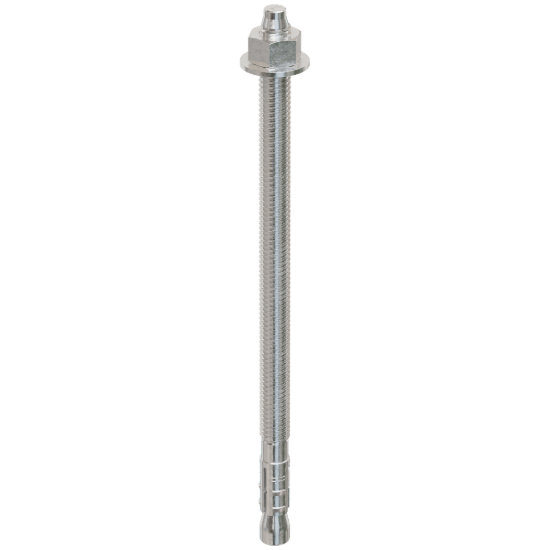

The Simpson Strong-Bolt 2 wedge anchor is a high-performance mechanical anchor designed for cracked and uncracked concrete. Made from Type 316 stainless steel, it offers superior corrosion resistance for outdoor or harsh environments. This 3/8 inch diameter by 7 inch length anchor comes in a box of 50.
  • Type 316 stainless steel for corrosion resistance
  • For cracked and uncracked concrete
  • 3/8 inch diameter, 7 inch length
  • 50 anchors per box

Features

  • ICC-ES ESR-3037 listed for cracked and uncracked concrete
  • Seismic and wind loading compliant
  • Drill bit size: 3/8 inch
  • Minimum embedment: 2-1/4 inch
  • Maximum fixture thickness: 4-3/4 inch

Includes

  • 50 wedge anchors

Specifications


Diameter3/8 inchLength7 inch
MaterialType 316 Stainless SteelFinishSmooth
Box Quantity50Drill Bit Size3/8 inch
Min Embedment2-1/4 inchMax Fixture Thickness4-3/4 inch
Thread Length1-1/2 inchHead TypeHex nut
StandardsICC-ES ESR-3037
*
*
*
