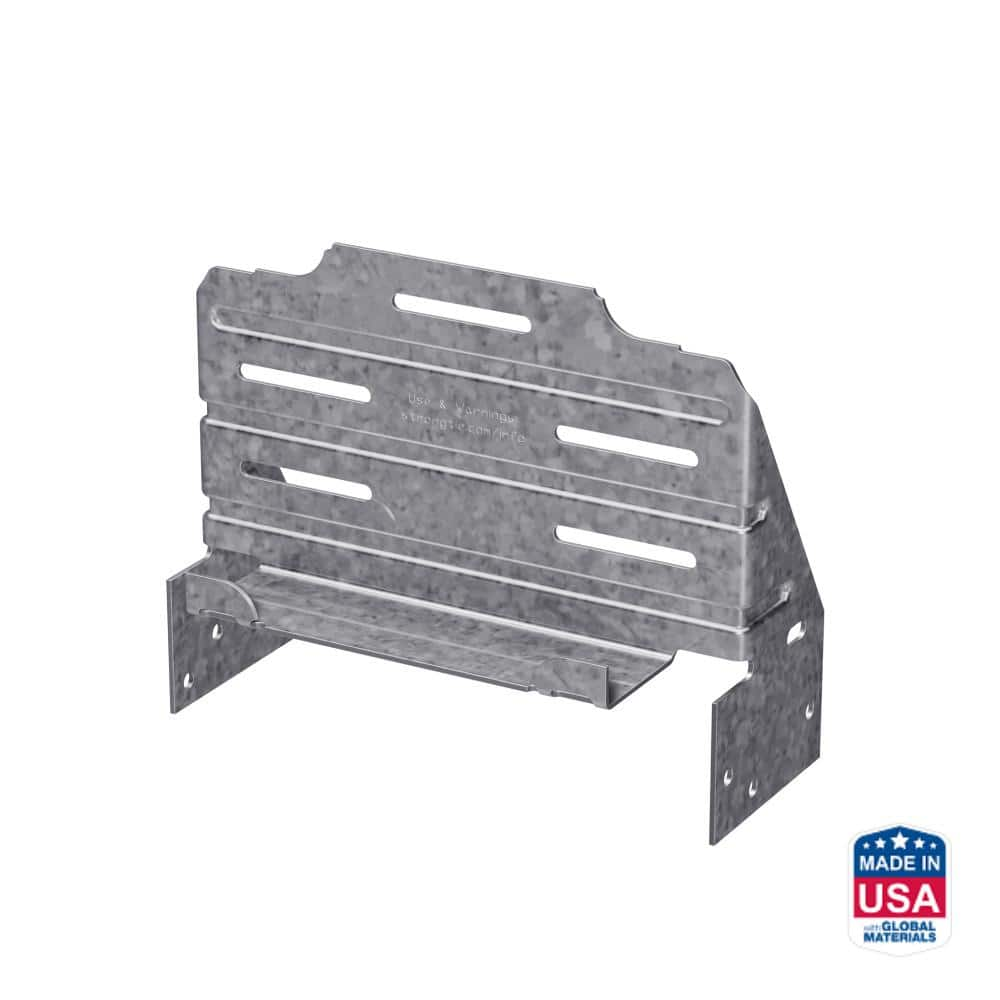

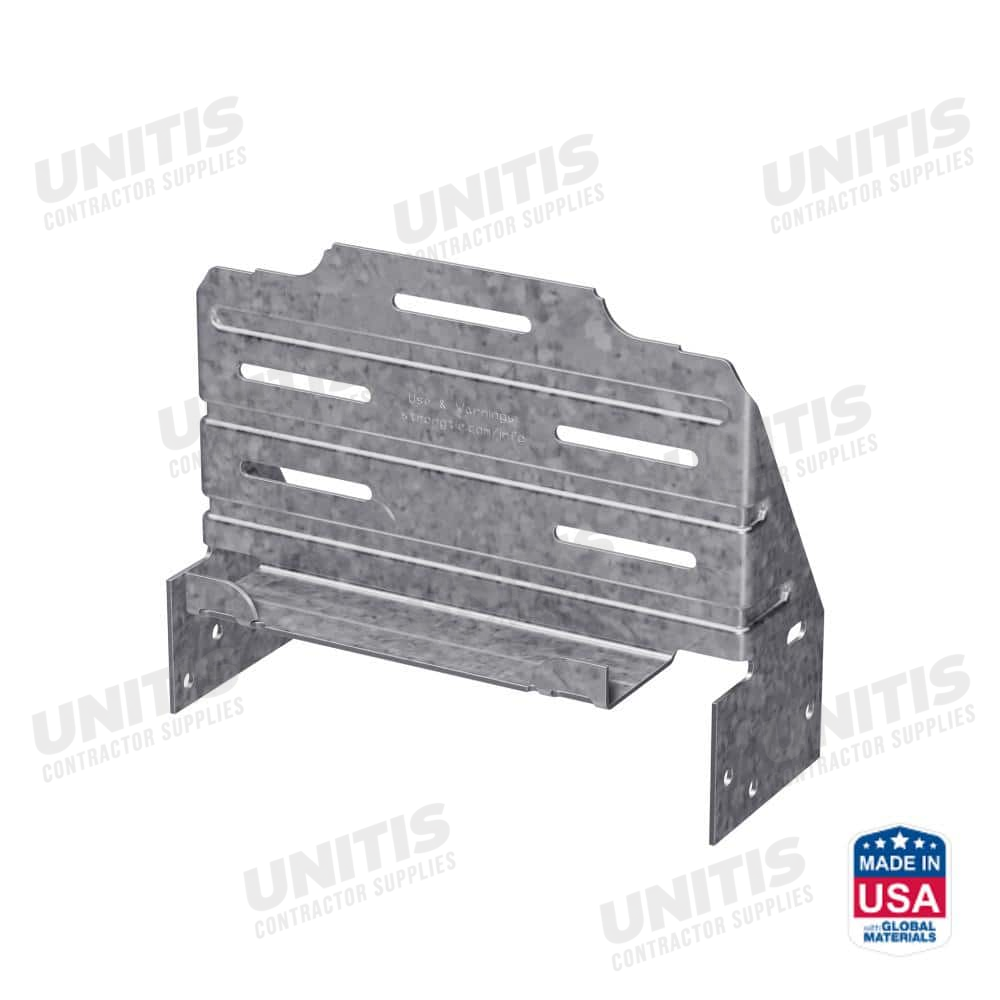

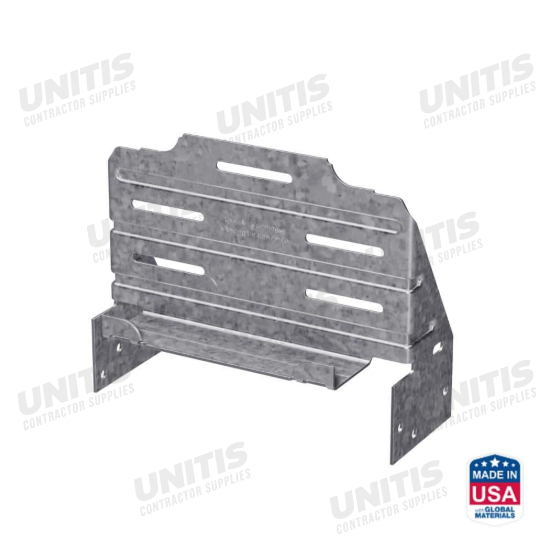

Simpson Strong-Tie TC26 Galvanized Truss Connector

Mfr.: Simpson Strong-Tie
Item #: I093985
Mfr. #: TC26
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $17.50
i h h

Description

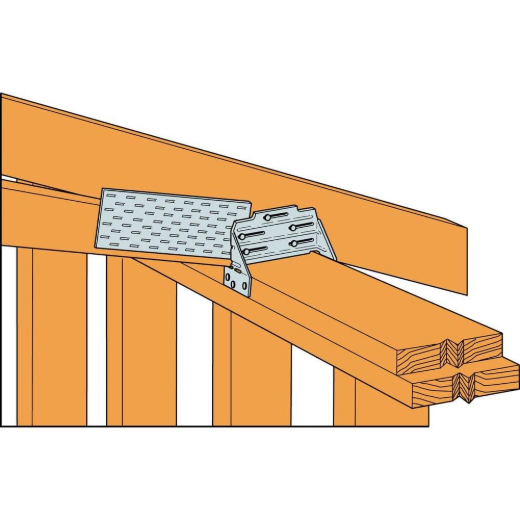

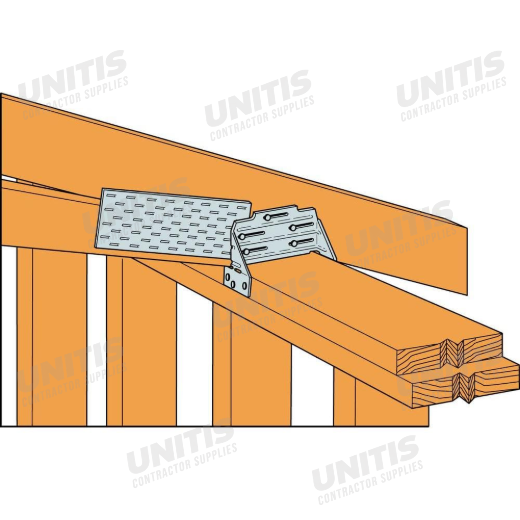

The Simpson Strong-Tie TC26 Galvanized Truss Connector is specifically engineered for securing scissor trusses to top plates or sill plates. It effectively resists uplift forces while uniquely allowing for horizontal movement up to 1 1/4 inches. This connector is ideal for ensuring structural integrity in complex roof designs, offering both stability and flexibility.
  • Galvanized finish
  • Designed for scissor trusses

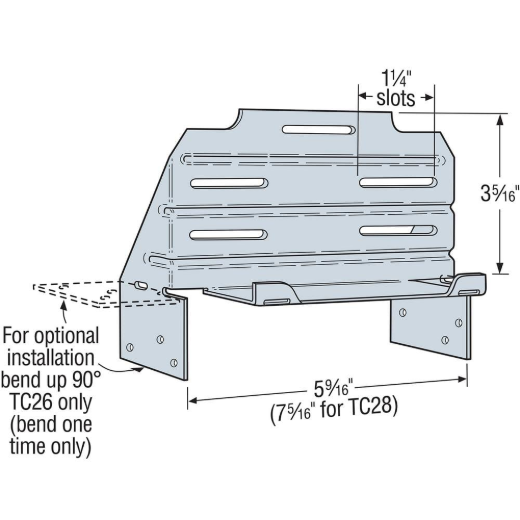

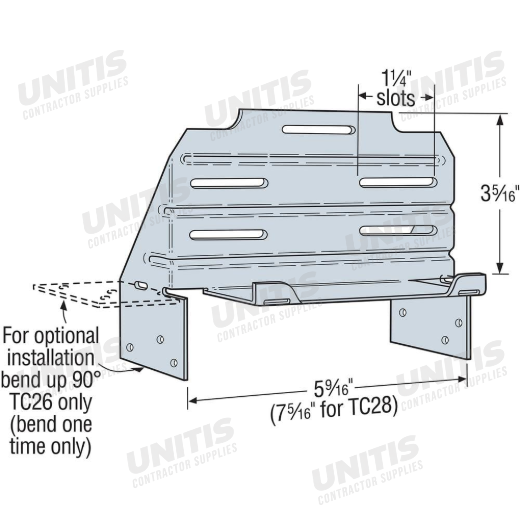

  • Allows horizontal movement up to 1 1/4 inch

Features

  • Provides resistance against uplift forces.
  • Can be used on one or both ends of a truss as determined by the designer.
  • Made from 16-gauge steel with G90 galvanization for corrosion resistance.

Includes

  • 1x TC26 Galvanized Truss Connector
Products specifications
Gauge 16 Gauge
Finish G90 Galvanized
Member Size 2x truss on 2x6 wall
Weight 0.6 lb
*
*
*
