Simpson THASR - 1-5/8" x 9-7/8" Skew Right Adjustable Truss Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091960
Mfr. #: THASR29
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $92.38
i h h

Description

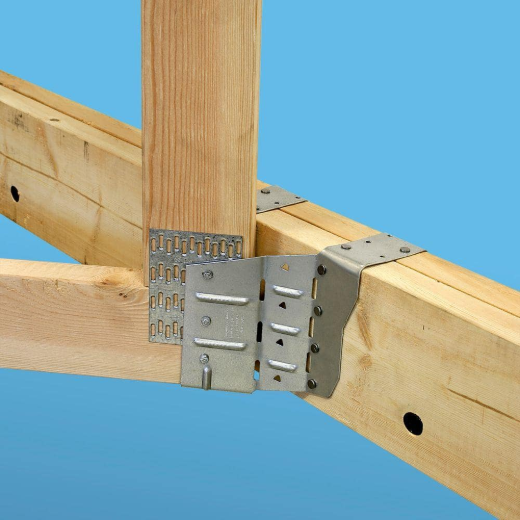

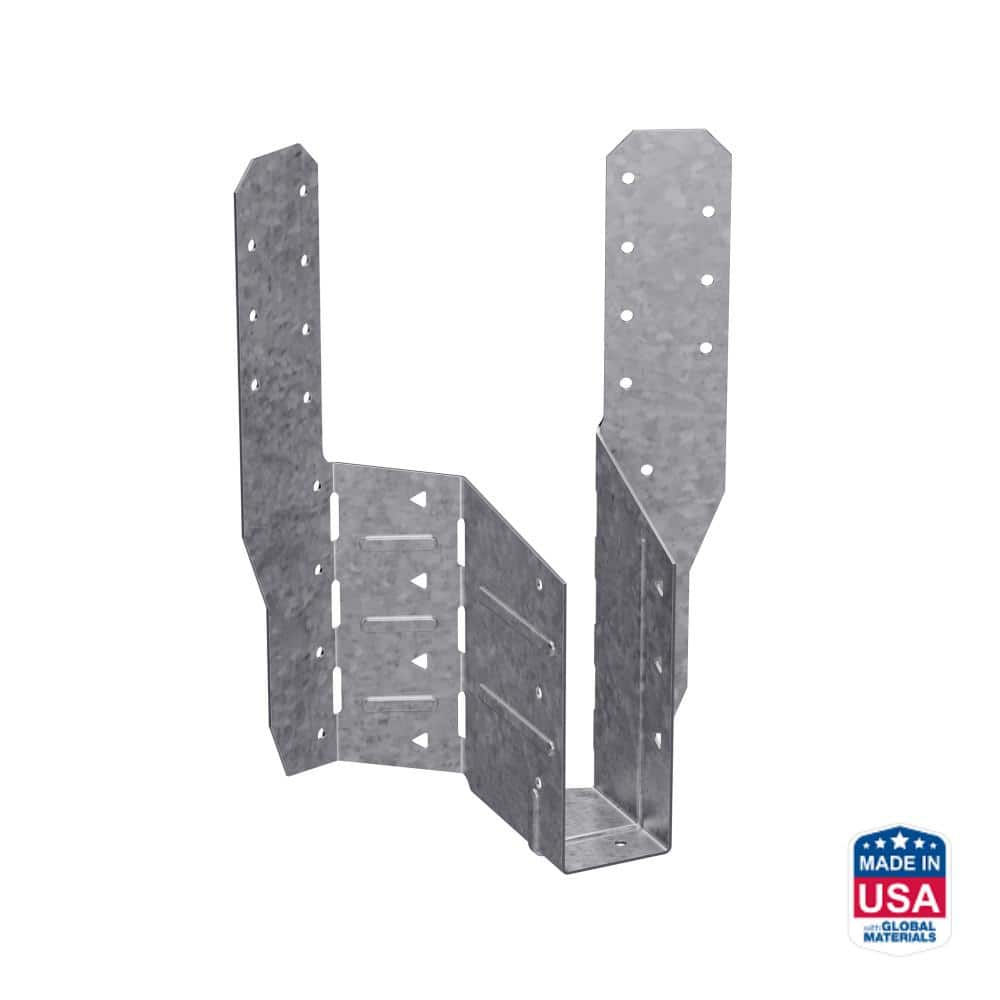

The Simpson Strong-Tie THASR29 is a versatile, U-shaped adjustable truss hanger designed to support trusses and beams with maximum flexibility. Combining the height adjustability of the THA series with field-skewability, this hanger eliminates the need for special orders by allowing for on-site adjustments from 22 1/2 up to 75. Its design simplifies installation with only one acute side bend line, making it a reliable solution for complex wood-framed construction projects.
  • Field-adjustable skew from 22 1/2 to 75
  • G90 Galvanized coating for corrosion resistance

Features

  • Factory-shipped at 22 1/2 skew
  • Compatible with nails or Strong-Drive SD Connector screws
  • Simplifies design with single acute side bend line
Products specifications
Connector Type Top-Flange Joist Hanger
Country of Origin USA (subject to change)
Finish / Coating Galvanized (G90)
Joist / Lumber Size 2 in x 9 in
Manufacturer's Warranty Limited Lifetime
Material Galvanized Steel
Mount Style Top-Flange Skewed Right
Series THASR
Steel Gauge Refer to Manufacturer
*
*
*
