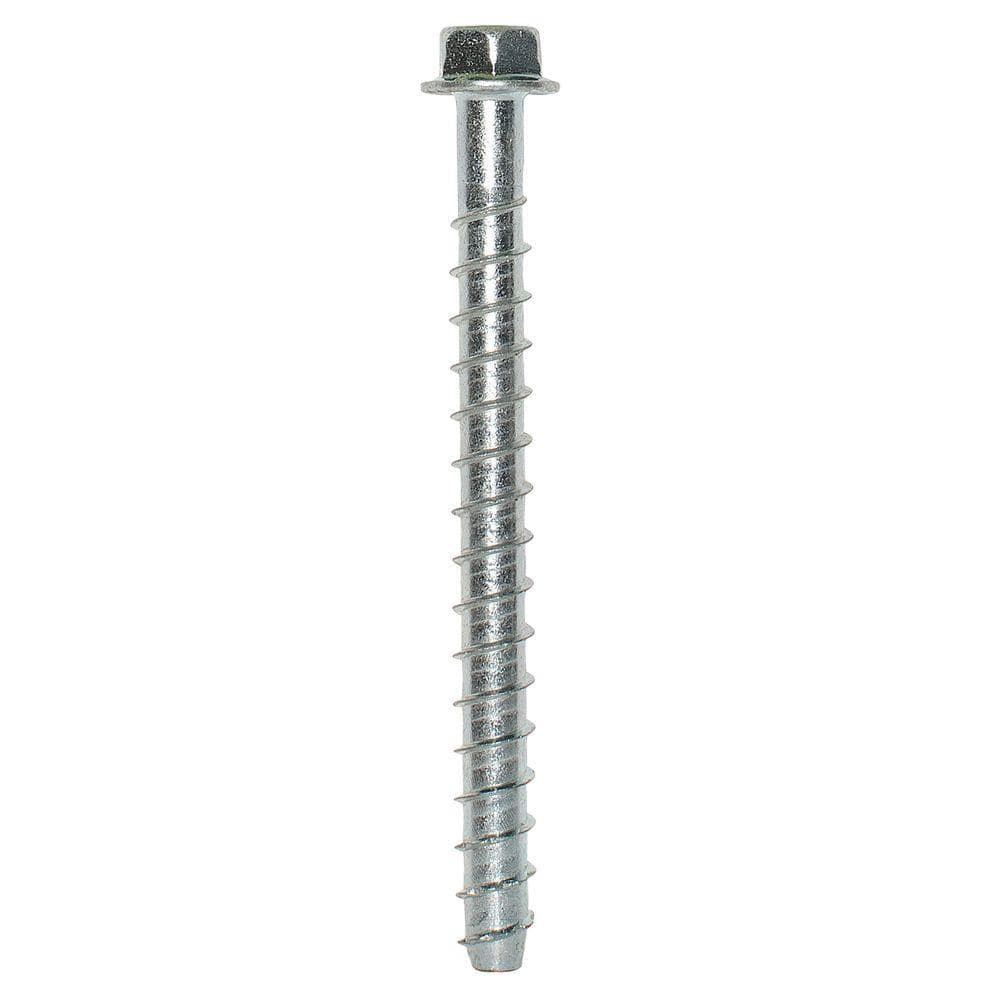

Simpson Strong-Tie Titen HD MG 3/8 X 5 Screw Anchor

Mfr.: Simpson Strong-Tie
Item #: I094005
Mfr. #: THD37500HMG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $221.80
i h h

Description

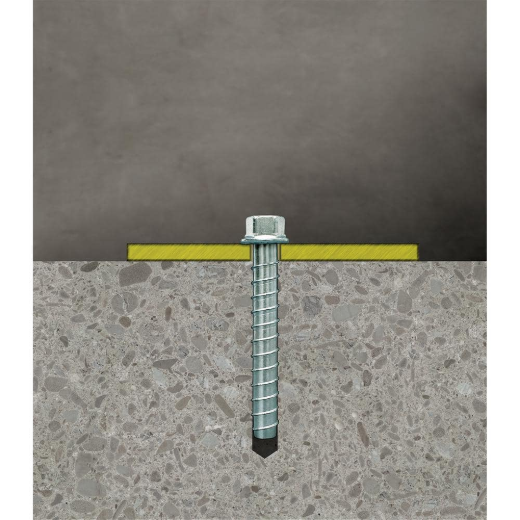

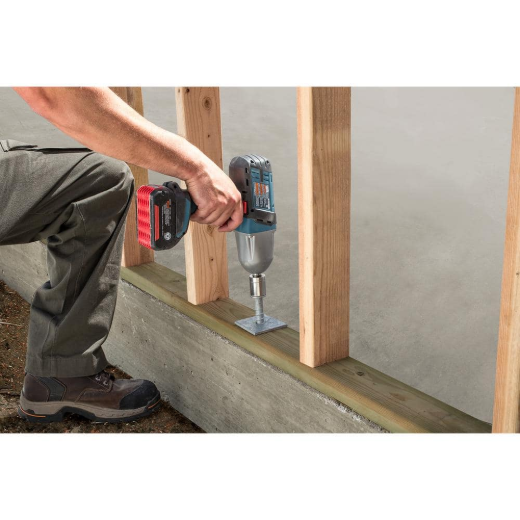

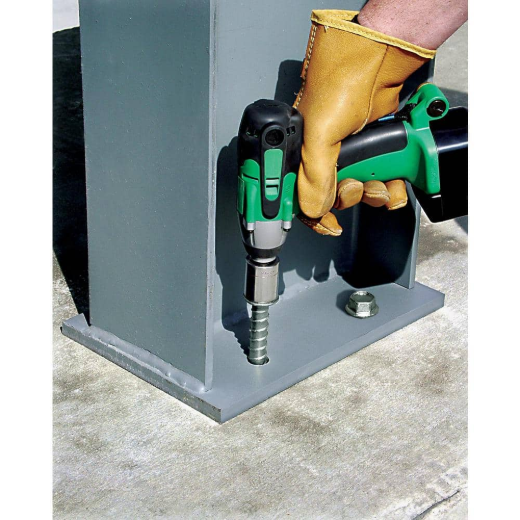

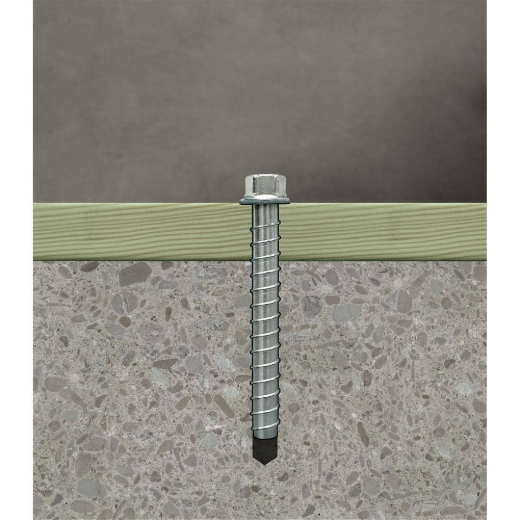

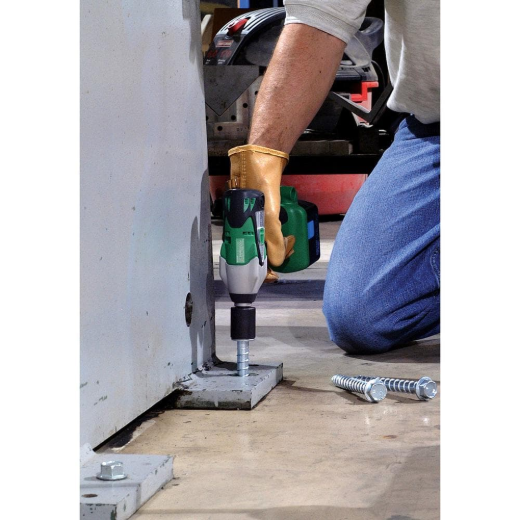

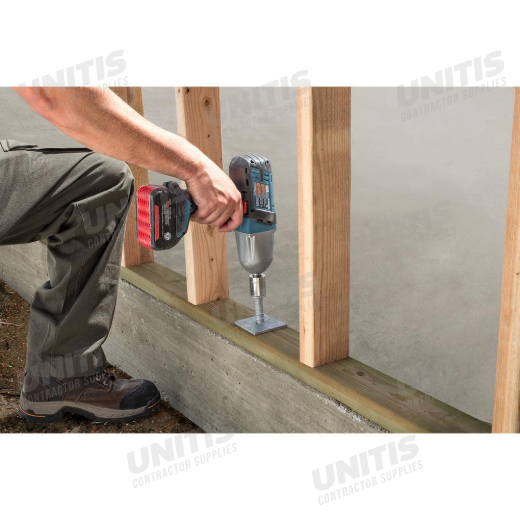

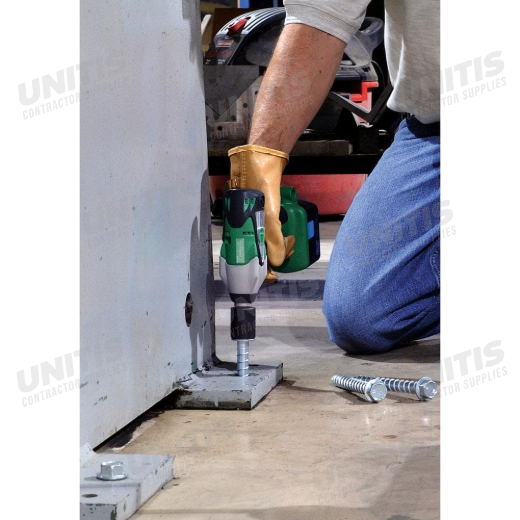

The Simpson Strong-Tie Titen HD MG 3/8 X 5 is a high-strength screw anchor designed for demanding applications in both cracked and uncracked concrete, as well as uncracked masonry. Its mechanically galvanized finish offers excellent corrosion resistance, making it suitable for interior, exterior, and semi-exposed environments. Featuring a proprietary heat treatment and specialized thread design, this anchor provides low installation torque and efficient load transfer, ensuring reliable performance even in seismic conditions. It's an ideal choice for securing ledgers, post bases, sill plates, and various other hold-down applications.
  • Mechanically Galvanized Finish
  • High-Strength Screw Anchor
  • For Cracked and Uncracked Concrete/Masonry

Features

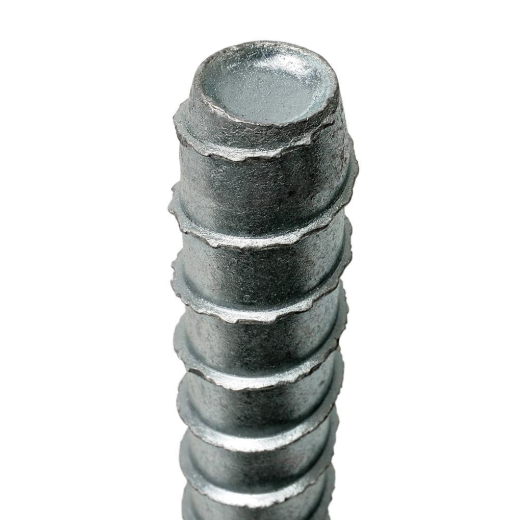

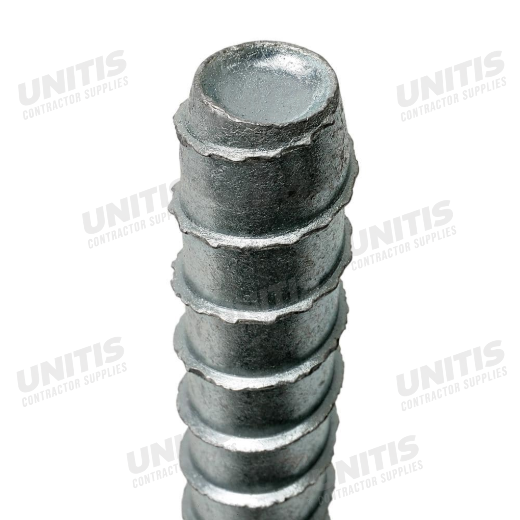

  • Serrated teeth on the tip facilitate cutting and reduce installation torque.
  • Thread design undercuts to efficiently transfer the load to the base material.
  • Specialized heat-treating process creates tip hardness for better cutting without compromising ductility.

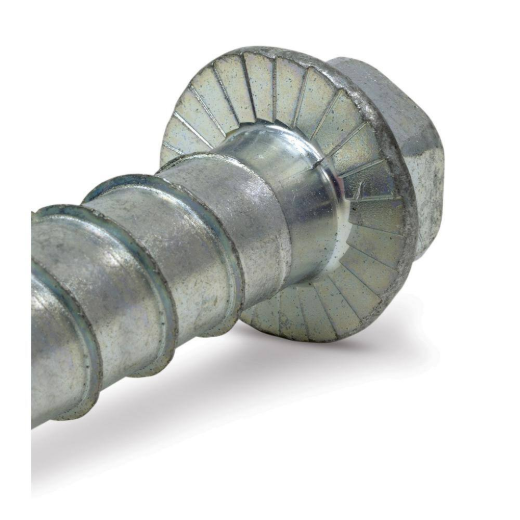

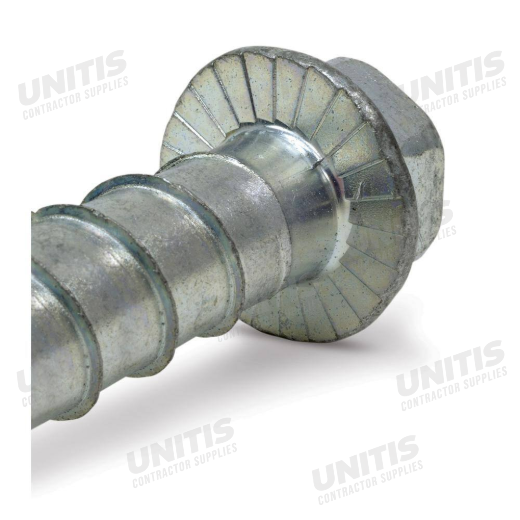

  • Hex washer head requires no separate washer unless required by code.
  • Code listed for exterior applications and qualified for static, wind, and seismic loading conditions.
  • Removable for temporary applications or fixture relocation.

Includes

  • 50 anchors per box
Products specifications
Diameter 3/8 inch
Length 5 inch
Finish Mechanically Galvanized
Head Type Hex Washer
Quantity 50
Material Carbon Steel
Drive Type 9/16 inch Hex
Thread Length 4-1/2 inch
Drill Bit Size 3/8 inch
*
*
*
