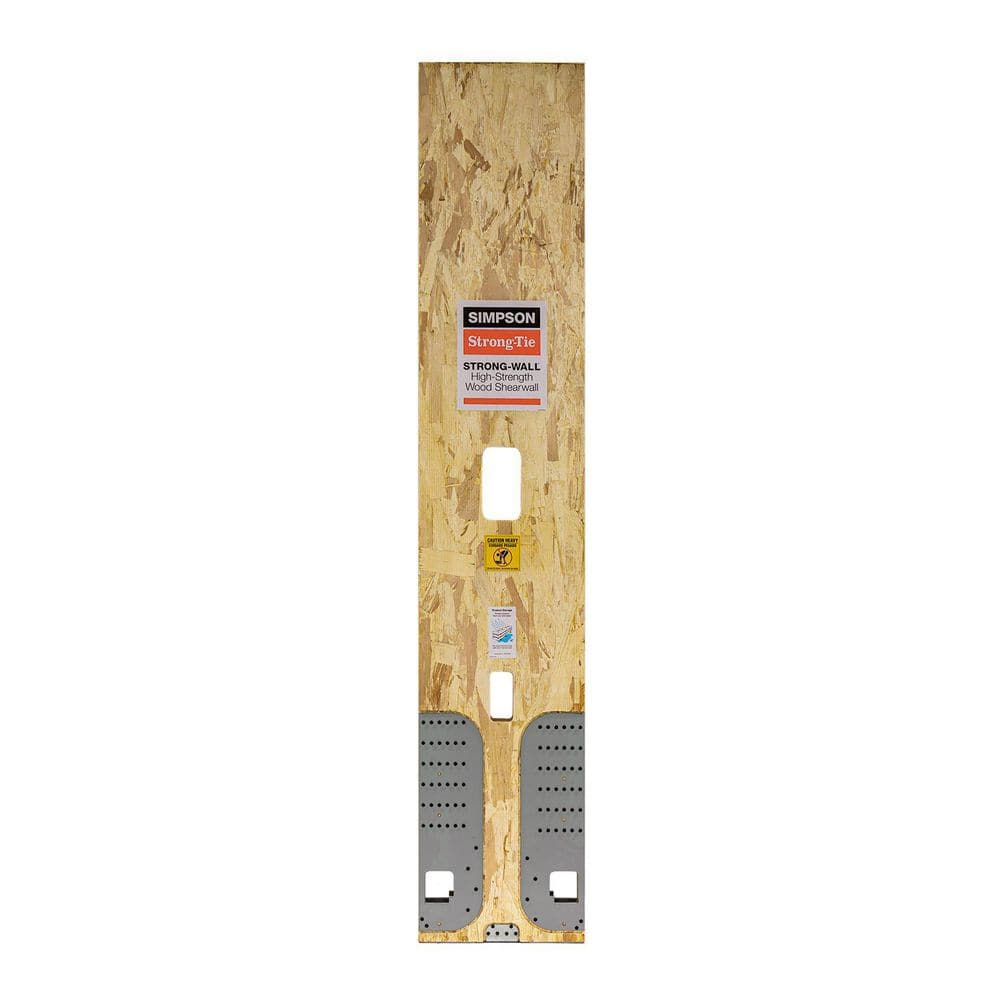

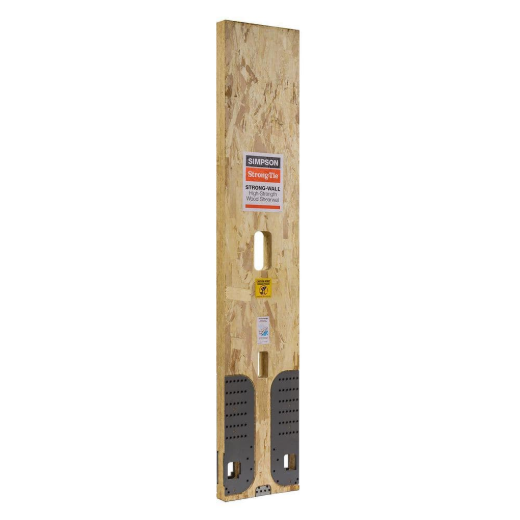

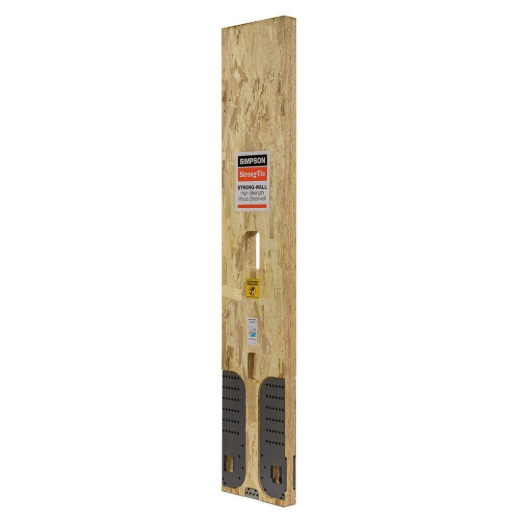

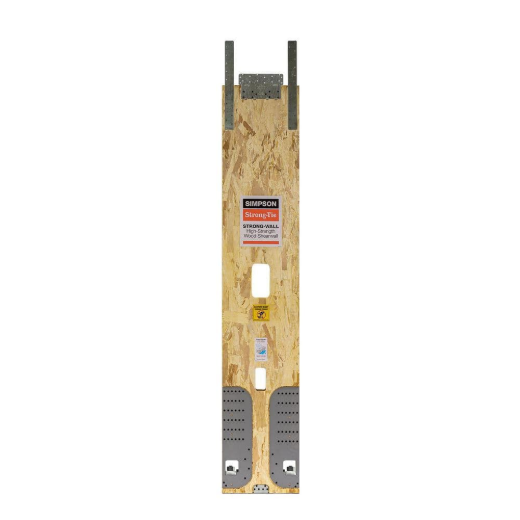

Simpson Strong-Tie WSWH Wood Shearwall (18 in x 108 in)

Mfr.: Simpson Strong-Tie
Item #: I094136
Mfr. #: WSWH18X9
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $823.98
i h h

Description

The Simpson Strong-Tie WSWH is a high-strength wood shearwall designed to provide superior resistance against high winds and earthquakes. This prefabricated engineered wood panel offers significant design flexibility, allowing it to be field-adjusted, trimmed, and drilled on-site to accommodate various wall heights and rake walls. Its innovative patented wood fuse technology ensures predictable performance, delivering exceptional strength, stiffness, ductility, and design values for robust structural integrity. This shearwall is an excellent solution for residential, multifamily, and light-frame commercial construction projects.
  • High-strength wood shearwall
  • Field adjustable and trimmable

Features

  • Patented wood fuse technology for predictable behavior and superior strength.
  • Code-listed and evaluated to the 2018 IRC/IBC, listed by ICC-ES.
  • Top-of-wall shear transfer with a single plate system.
  • Reusable templates available for accurate holdown anchor bolt placement.

Includes

  • Preattached holdowns
  • Two heavy hex nuts
  • Two heavy bearing plates
  • One WSWH-TP top connection plate
  • SWS16150 Strong-Wall Screws
  • Strong-Drive SDS25600 Heavy-Duty Connector screws
  • T25 six-lobe driver bit
  • Installation instructions in English and Spanish
  • Four WSWH-PS portal straps (for shearwalls 100 inch or less in height)
Products specifications
Model WSWH18X9
Width 18 inch
Height 108 inch
Thickness 3 1/2 inch
*
*
*
