Simpson Wedge Tie for 2x Formboard, 12-" Thick Walls - 250/box

Mfr.: Simpson Strong-Tie
Item #: I094180
Mfr. #: WT12
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $449.58
i h h

Description

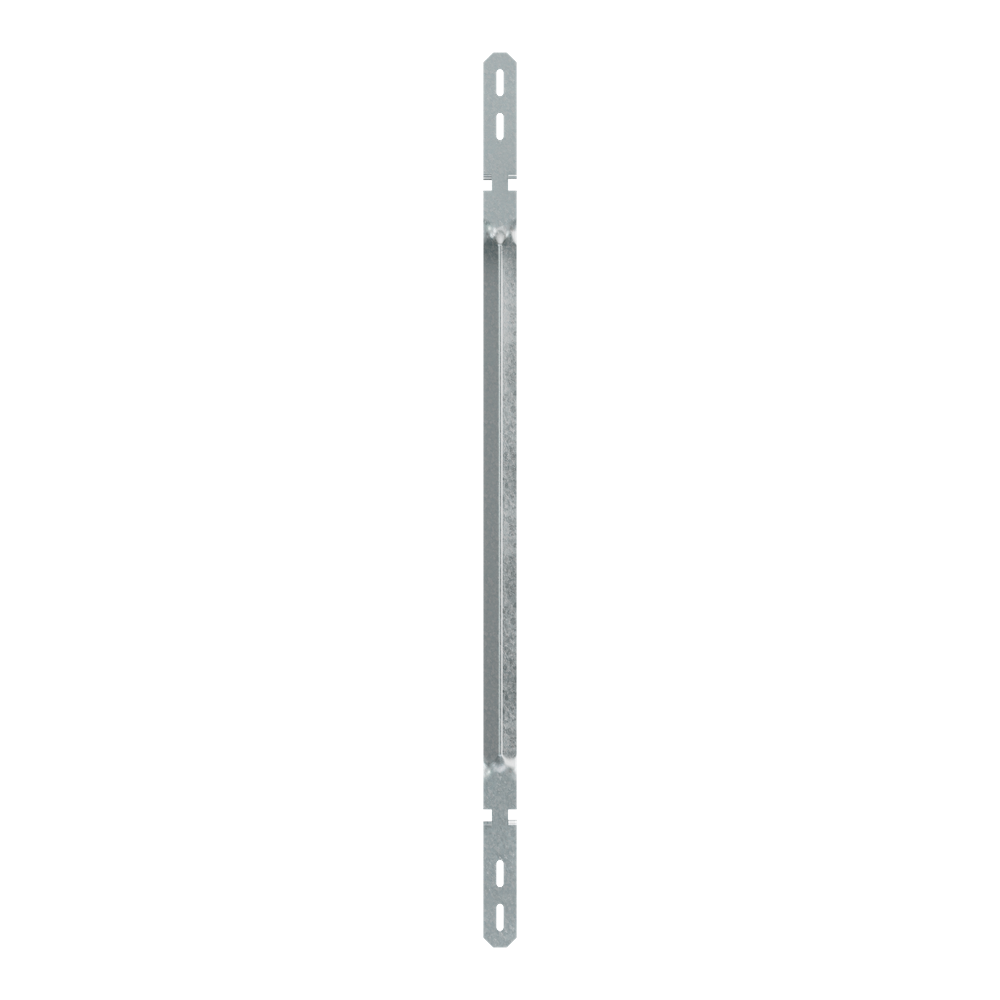

The WT12 wedge tie secures concrete forms in place during pouring, designed for 12-inch thick walls. It installs between form boards and accurately spaces forms for low foundation wall applications.
  • 5/8-inch wide formed V design for rigidity
  • Galvanized finish
  • Designed for wall thickness from 6 to 12 inches
  • Not recommended for wall pours greater than 4 feet high

Features

  • Secures concrete forms in place while concrete is poured
  • Easily installs between form boards
  • Accurately spaces forms
  • Available for varying wall thickness and form board types

Specifications


Model No.WT12Material18 gauge
FinishGalvanizedWall Thickness12 inches
Max Wall Height4 feet
*
*
*
