Simpson Tha Adjustable Truss Hanger

Mfr.: Simpson Strong-Tie
Item #: I091939
Mfr. #: THA426-2
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $88.38
i h h

Description

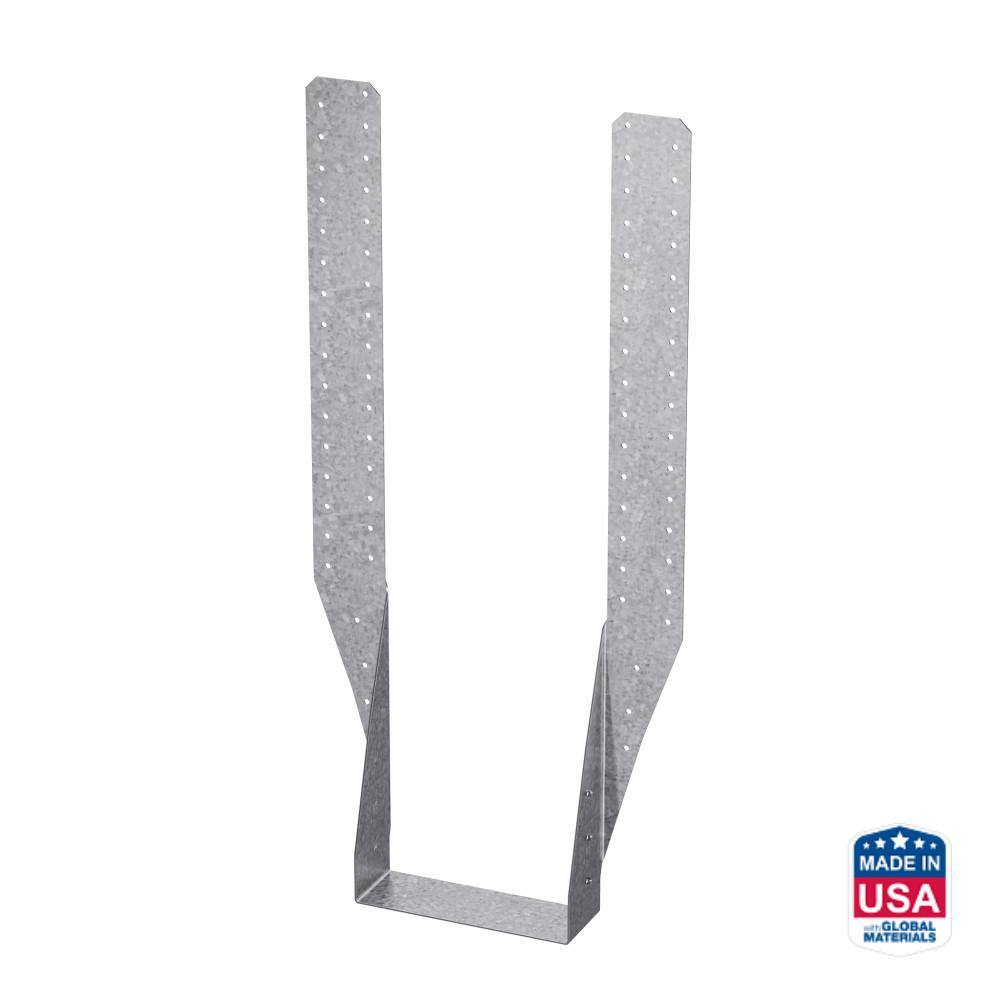

The Simpson THA426-2 is a versatile U-shaped truss hanger designed to support trusses and beams with height adjustability. Featuring extra-long, straight straps, this hanger can be field-formed to allow for either top-flange or face-mount installation, providing convenience on the job site. The THA4x model includes a dense nail pattern in the straps, offering increased installation flexibility and improved support for double 4x structural members.
  • Extra-long straps for field-adjustable height

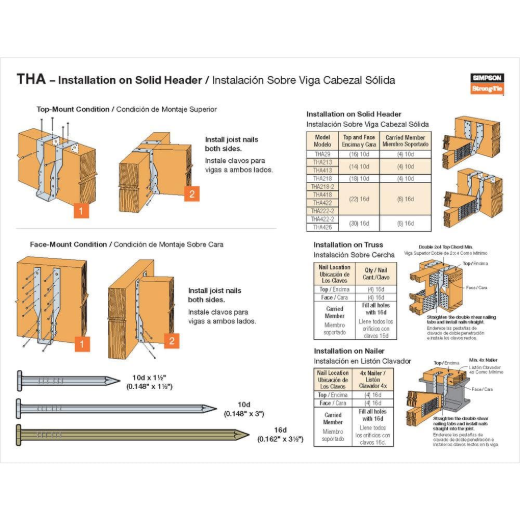

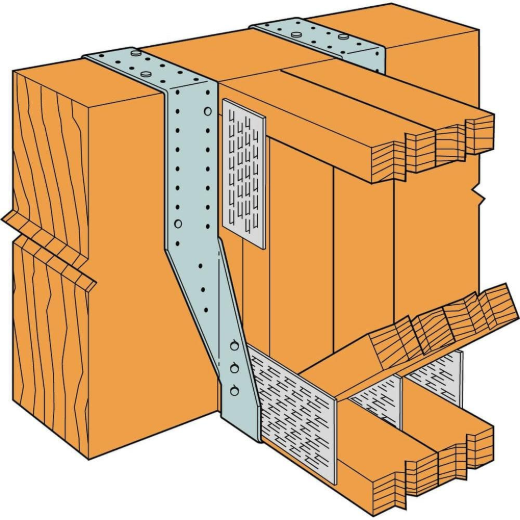

  • Dual installation: Top-flange or face-mount

Features

  • Dense nail pattern for versatile installation options
  • G90 galvanized coating for enhanced corrosion resistance
Products specifications
Model THA426-2
Material 14-gauge steel
Finish G90 Galvanized
Height 26-1/16 in
Seat Width 7-1/4 in
Nominal Joist Size Double 4x truss
*
*
*
