  • Simpson Titen HD 1/2" x 4" Mechanically Galvanized Heavy-Duty Screw Anchor - 20/box

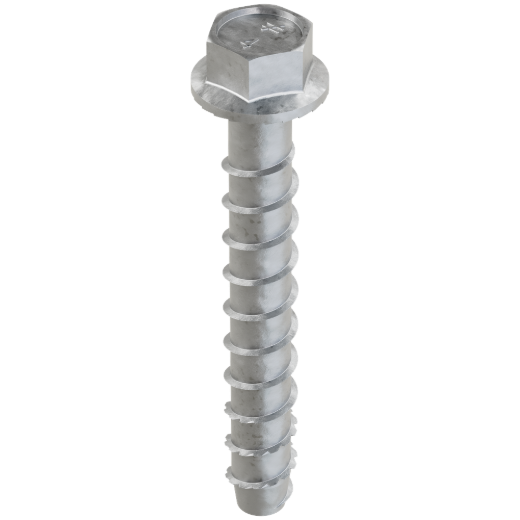

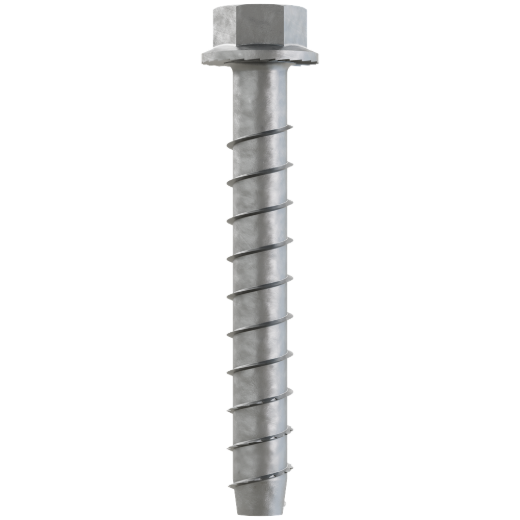

Simpson Titen HD 1/2" x 4" Mechanically Galvanized Heavy-Duty Screw Anchor - 20/box

Mfr.: Simpson Strong-Tie
Item #: I052248
Mfr. #: THD50400HMG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $145.85
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The Titen HD heavy-duty screw anchor is a mechanically galvanized high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. Its proprietary heat treatment and ASTM B695 Class 65 mechanically galvanized coating make it ideal for both interior and exterior anchoring applications.

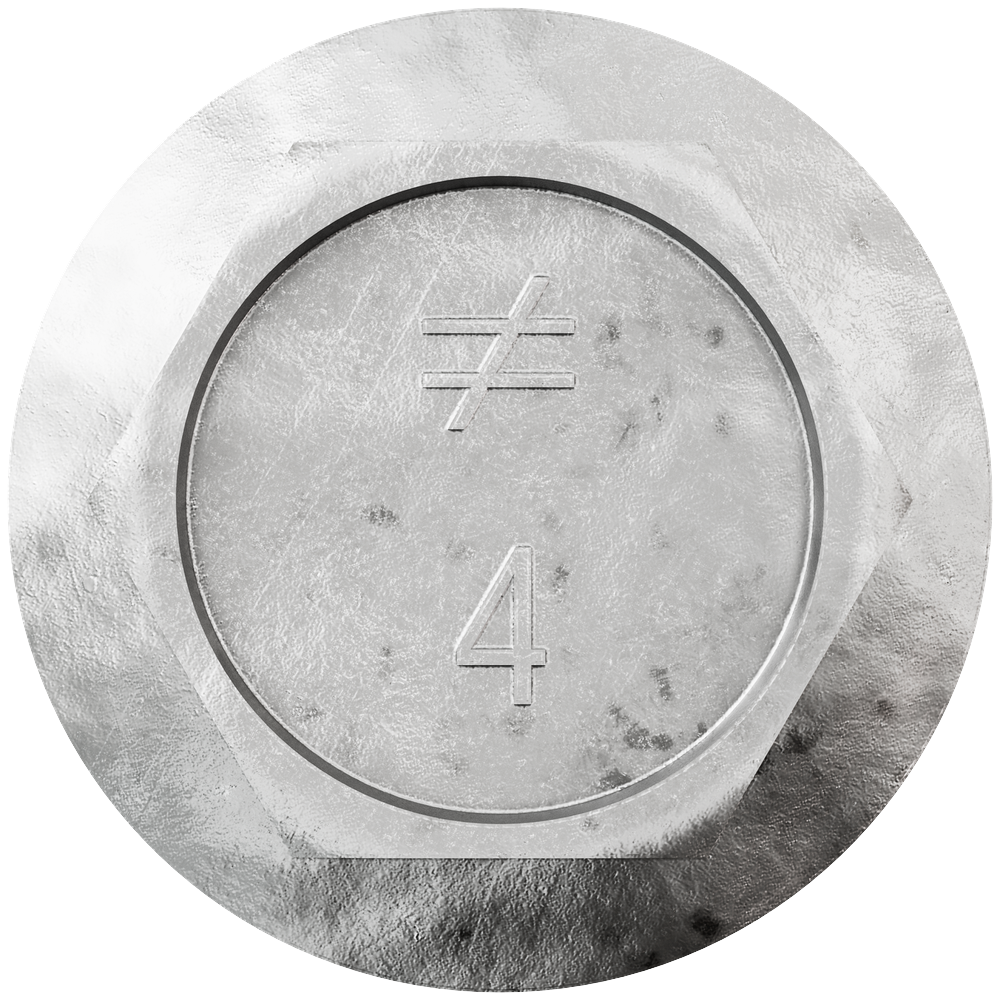

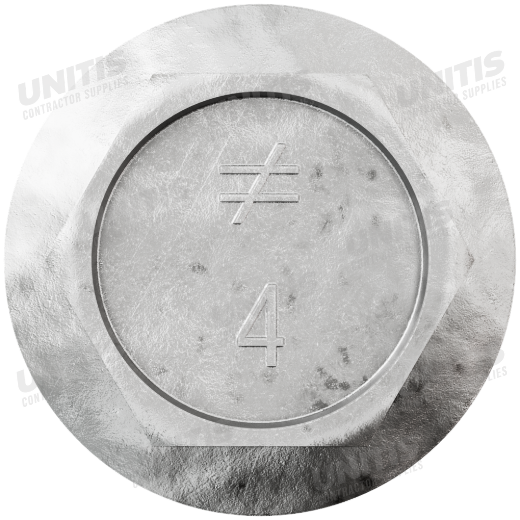

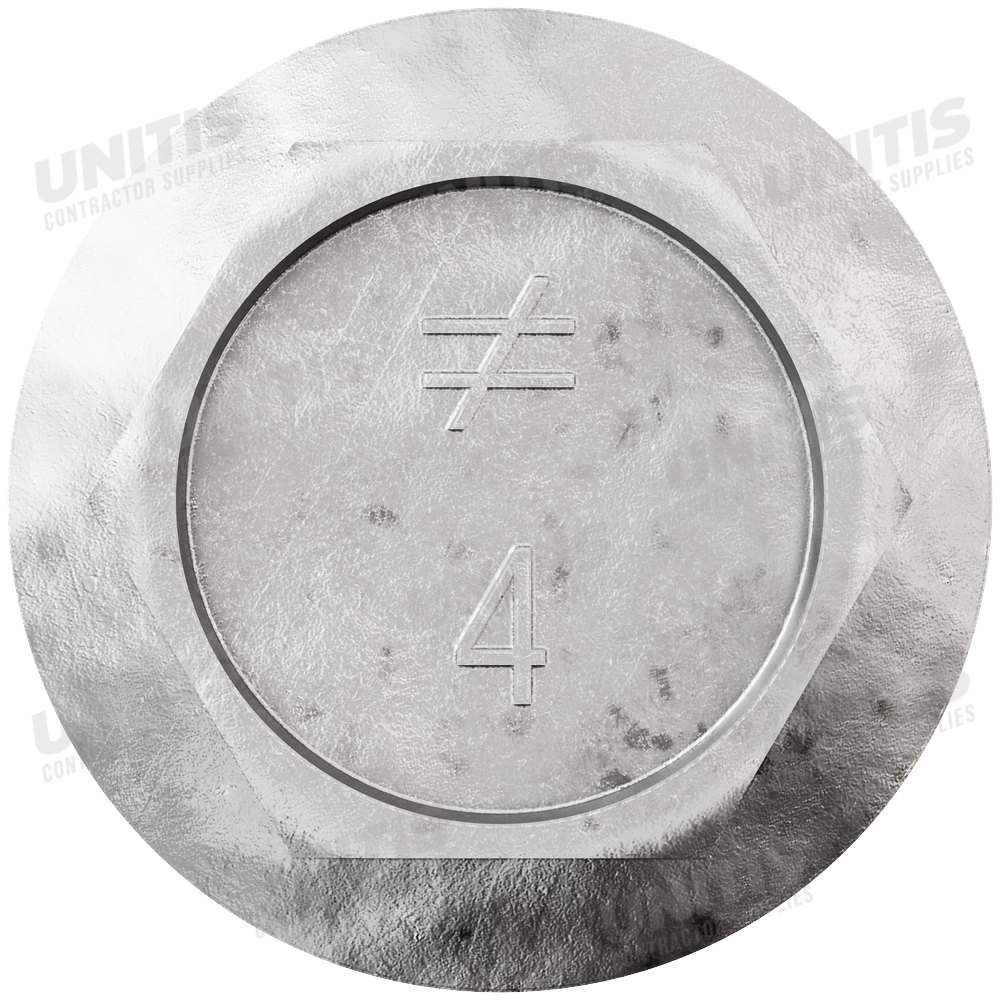

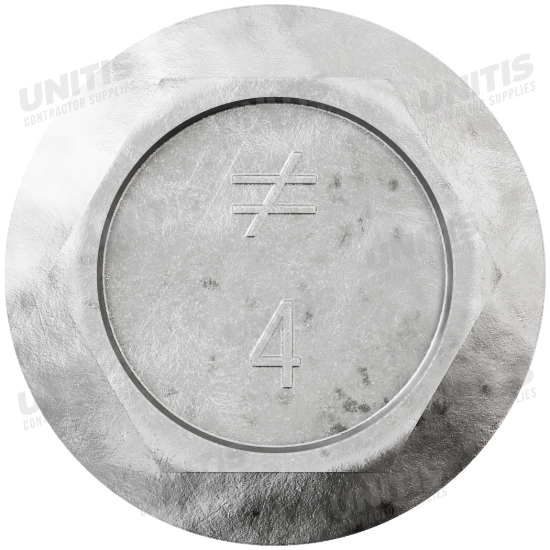

  • Head-stamped for easy identification
  • Serrated teeth on tip for reduced installation torque
  • Thread design undercuts to efficiently transfer load
  • Standard fractional sizes, hole size equals anchor size
  • Fully and easily removable

Features

  • Material: Carbon steel
  • Finish: Mechanically galvanized
  • Hex washer head requires no separate washer
  • Code listed for exterior applications
  • Specialized heat-treating process for tip hardness

Specifications


Diameter1/2 inchLength4 inch
Wrench Size3/4 inchRecommended Fixture Hole Size5/8 to 11/16 inch
Min. Hole Depth Overdrill1/2 inchFinishMechanically Galvanized
MaterialCarbon SteelQuantity per Box20
*
*
*
