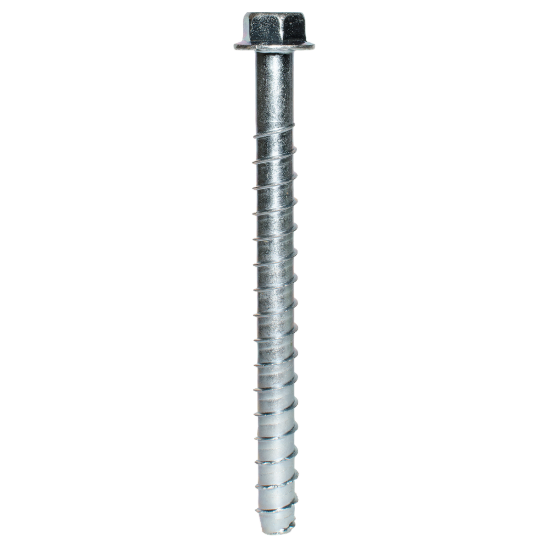

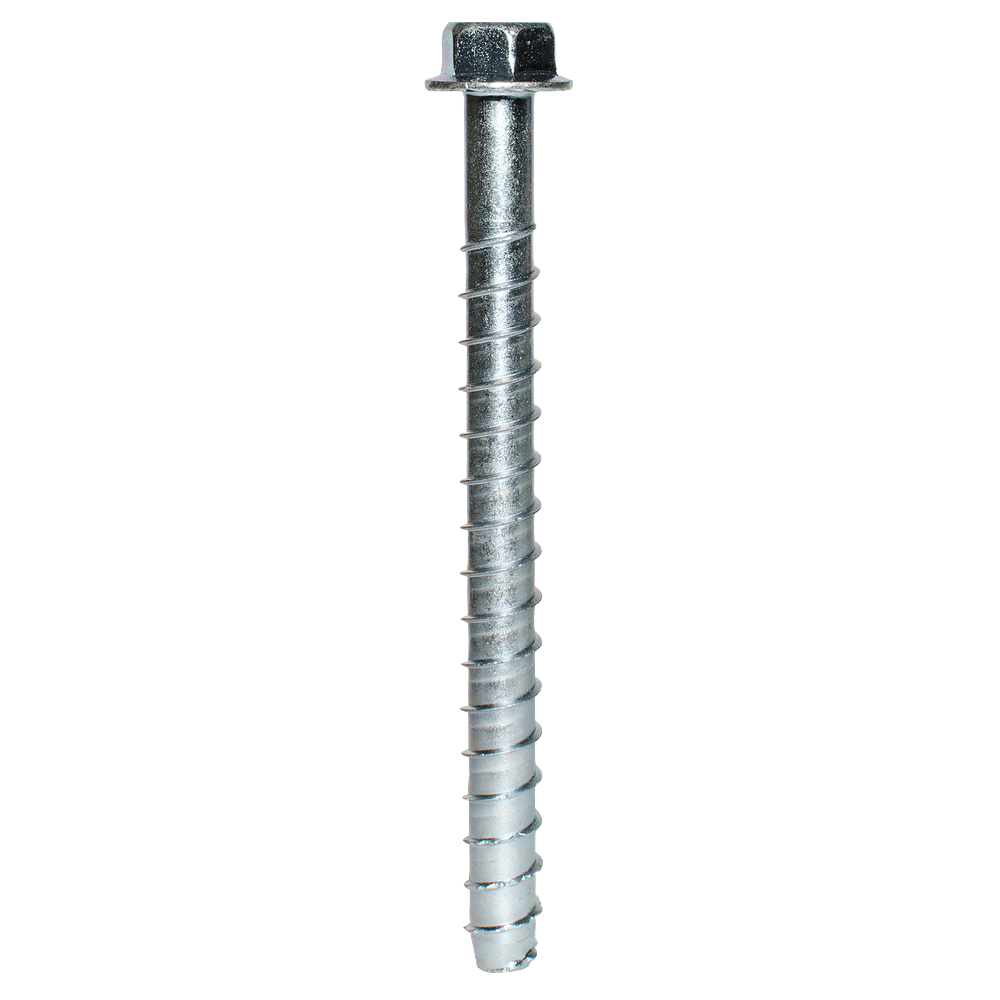

Simpson Titen HD 1/2" x 6-1/2" Heavy-Duty Screw Anchor - 20/box

Mfr.: Simpson Strong-Tie
Item #: I049491
Mfr. #: THD50612H
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $110.45
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

A high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. Designed for applications such as sill plates, ledgers, post bases, and holdowns.
  • Tested in accordance with ACI 355.2, AC193 and AC106
  • Qualified for static, wind and seismic loading conditions
  • Thread design undercuts to efficiently transfer load
  • Hex-washer head requires no separate washer
  • Removable for temporary anchoring

Features

  • 1/2 inch diameter, 6-1/2 inch length
  • Carbon steel, zinc plated
  • For dry interior environments only
  • No special drill bit required
  • Serrated teeth on tip for easier installation

Includes

  • 20 anchors per box

Specifications


Diameter1/2 inchLength6-1/2 inch
MaterialCarbon steelFinishZinc plated
Wrench Size1/2 inchRecommended Fixture Hole Size9/16 inch
Min. Hole Depth Overdrill1/2 inch
*
*
*
