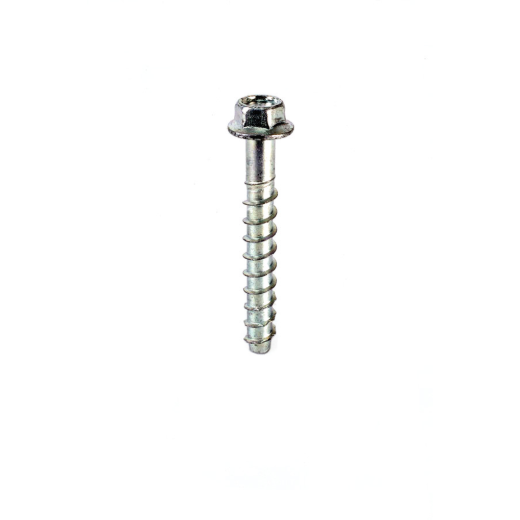

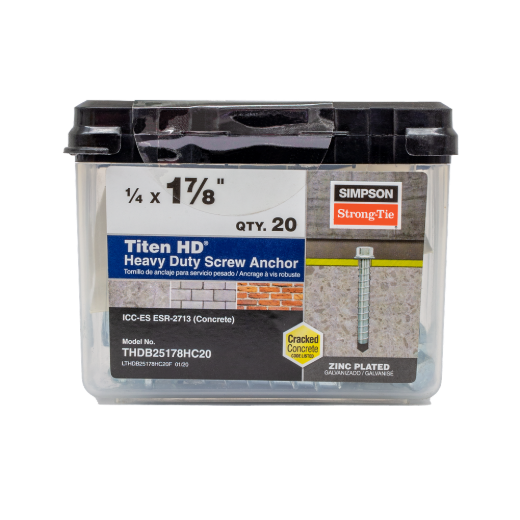

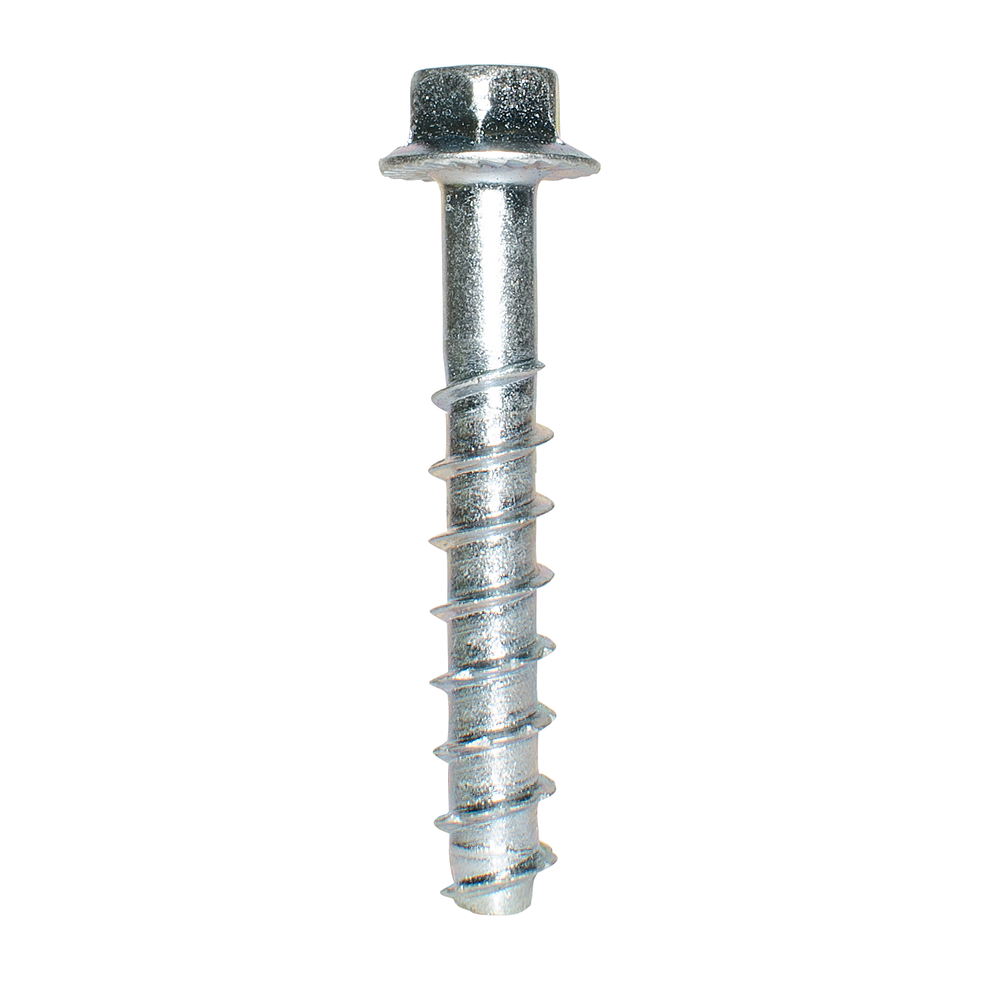

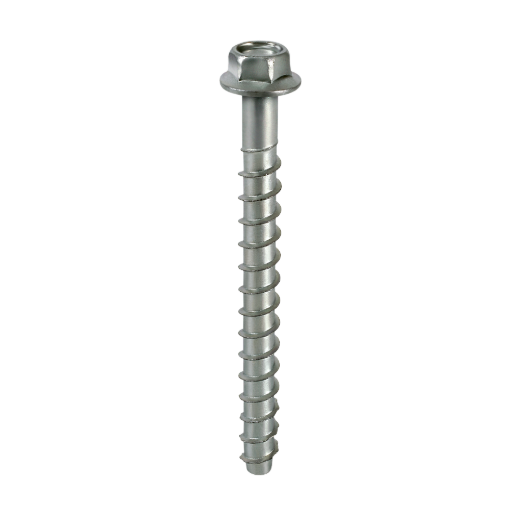

Simpson Titen HD 1/4" x 1-7/8" Heavy-Duty Screw Anchor - 100/box

Mfr.: Simpson Strong-Tie
Item #: I051071
Mfr. #: THDB25178H
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $120.83
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

A high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. Designed for applications such as sill plates, ledgers, post bases, and holdowns.
  • Tested in accordance with ACI 355.2, AC193 and AC106
  • Qualified for static, wind and seismic loading conditions
  • Thread design undercuts to efficiently transfer load
  • Hex-washer head requires no separate washer
  • Removable for temporary anchoring

Features

  • Specialized heat-treating process for tip hardness
  • No special drill bit required
  • Use in dry interior environments only
  • Carbon steel with zinc plated finish

Includes

  • 100 anchors per box

Specifications


Diameter1/4 inchLength1-7/8 inch
MaterialCarbon steelFinishZinc plated
Head TypeHex-washer headStandardsACI 355.2, AC193, AC106
UsageInterior dry environments
*
*
*
