Simpson Titen HD 3/4" x 10" Heavy-Duty Screw Anchor - 5/box

Mfr.: Simpson Strong-Tie
Item #: I051704
Mfr. #: THD75100H
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $121.19
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

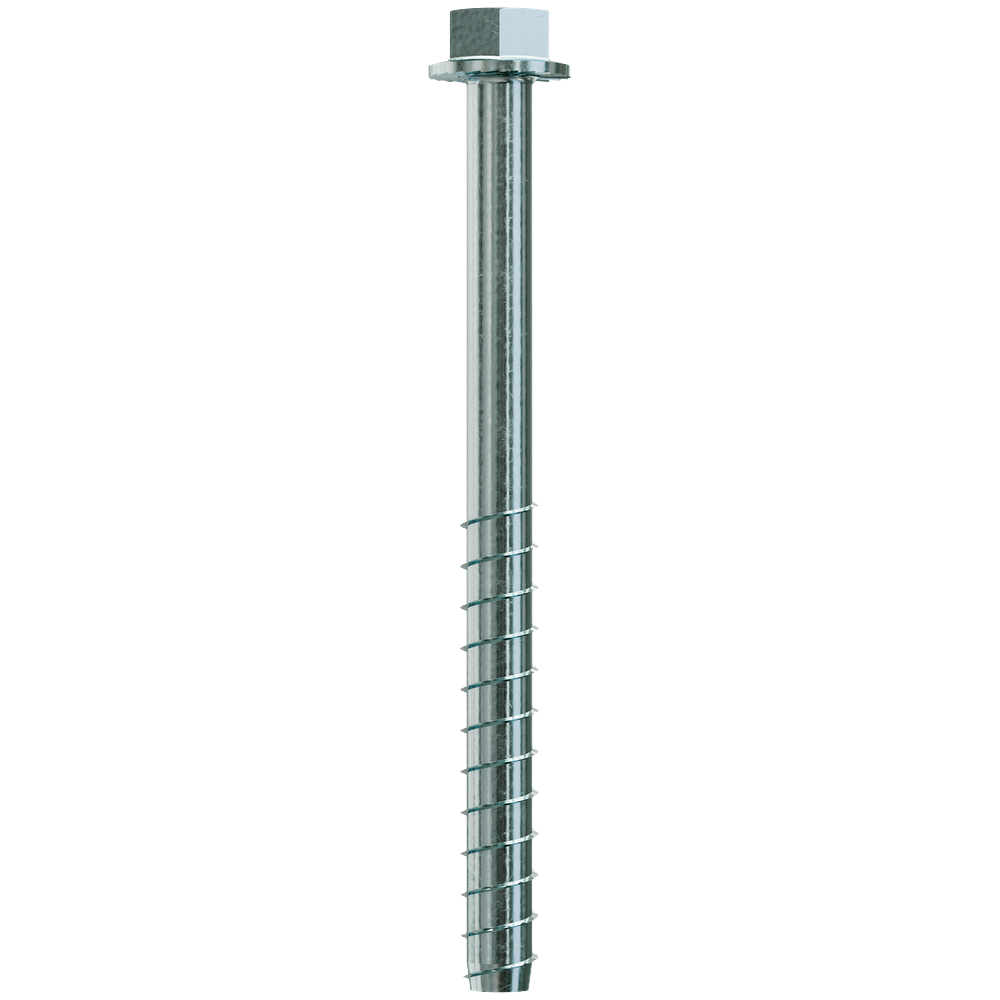

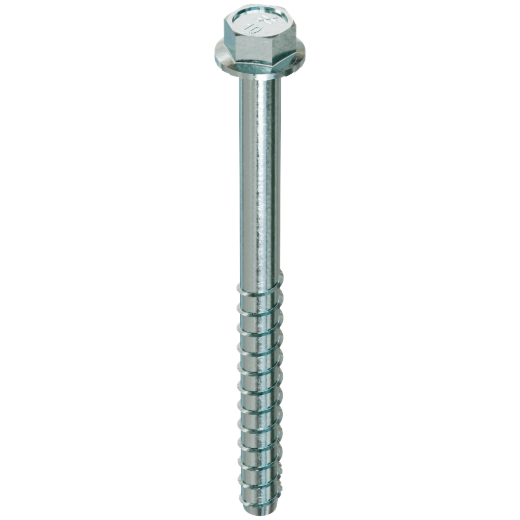

Zinc plated carbon steel heavy-duty screw anchor for concrete and masonry. Designed for structural applications requiring high load capacity.
  • 3/4 inch diameter, 10 inch length
  • Zinc plated carbon steel
  • Box quantity: 5
  • Drill bit diameter: 3/4 inch
  • Wrench size: 1 1/8 inch

Features

  • One-time use only to prevent thread wear
  • Not for use with impact wrenches in hollow CMU
  • Requires proper hole size for optimal load capacity
  • Installation influenced by concrete strength and aggregate
  • Compliant with IBC, IRC, and Florida Building Code

Includes

  • 5 screw anchors per box

Specifications


Model No.THD75100HCoatingMaterialZinc Plated / Carbon Steel
Size (in.)3/4 x 10Drill Bit Dia. (in.)3/4
Wrench Size (in.)1 1/8Recommended Fixture Hole Size (in.)7/8 to 15/16
Box Qty.5Carton Qty.10
*
*
*
