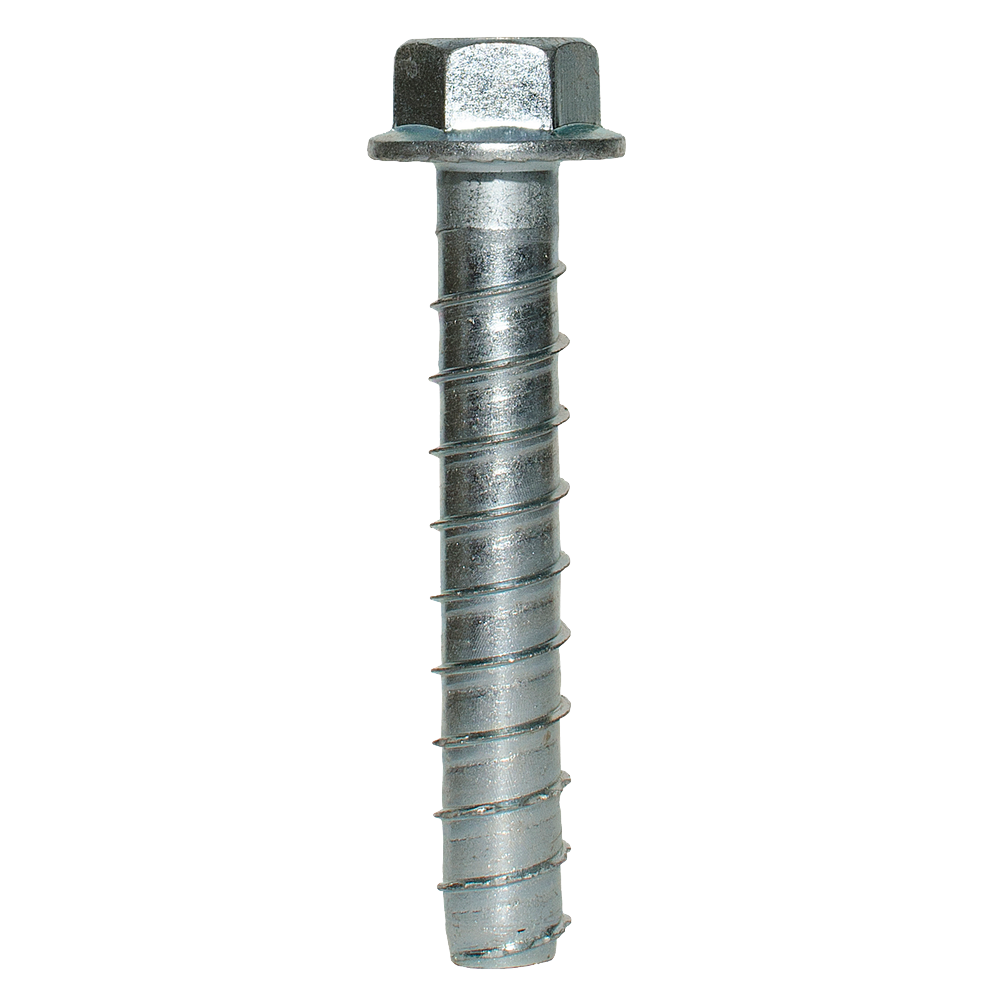

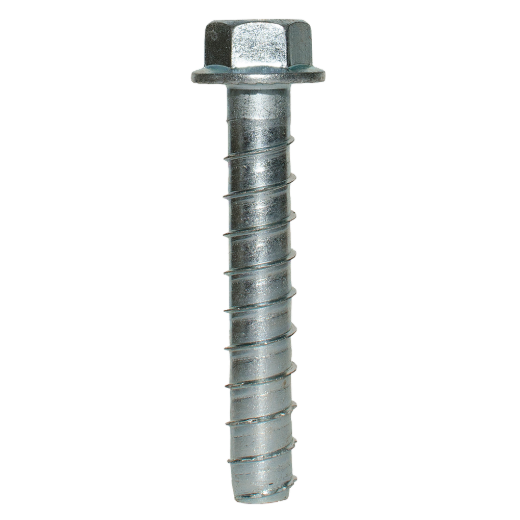

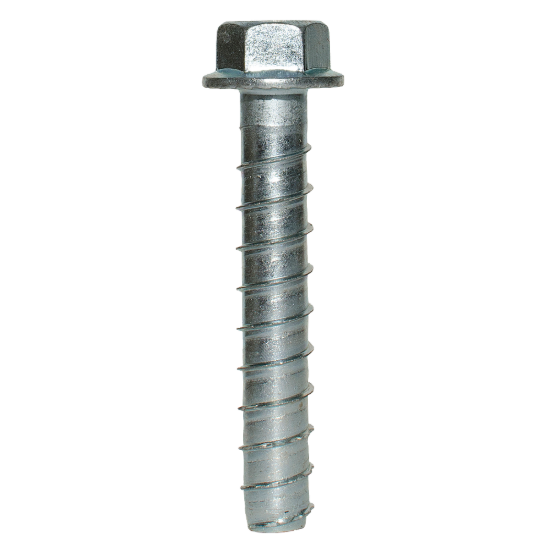

  • Simpson Titen HD 3/4" x 5" Heavy-Duty Screw Anchor - 5/box

Simpson Titen HD 3/4" x 5" Heavy-Duty Screw Anchor - 5/box

Mfr.: Simpson Strong-Tie
Item #: I047380
Mfr. #: THD75500H
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $57.94
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

A high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. Designed for applications such as sill plates, ledgers, post bases, and holdowns.
  • Tested in accordance with ACI 355.2, AC193 and AC106
  • Qualified for static, wind and seismic loading conditions
  • Thread design undercuts to efficiently transfer load
  • Hex-washer head requires no separate washer
  • Removable for temporary anchoring

Features

  • Tested in accordance with ACI 355.2, AC193 and AC106
  • Qualified for static, wind and seismic loading conditions
  • Thread design undercuts to efficiently transfer the load to the base material
  • Standard fractional sizes
  • Specialized heat-treating process creates tip hardness for better cutting without compromising ductility

Includes

  • 5 anchors per box

Specifications


ModelTHD75500HDiameter3/4 inch
Length5 inchMaterialCarbon steel
FinishZinc platedHead TypeHex-washer head
Wrench Size1-1/8 inchRecommended Fixture Hole Size13/16 to 7/8 inch
Min. Hole Depth Overdrill1/4 inchUsageDry interior environments only
*
*
*
