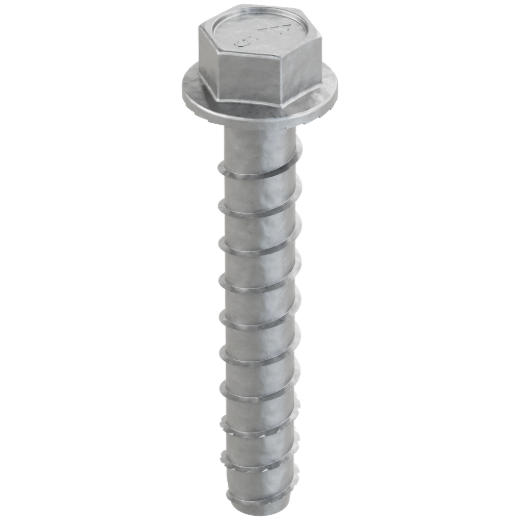

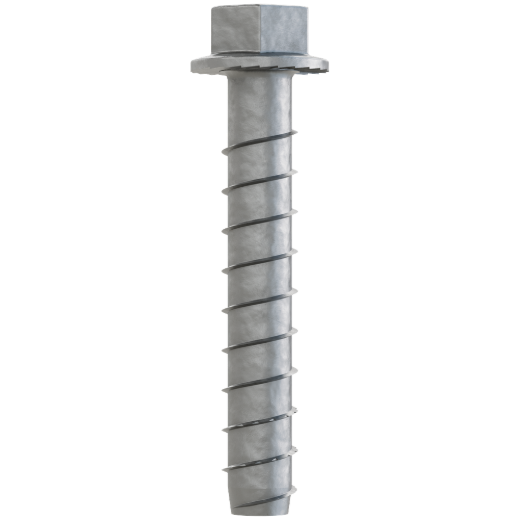

Simpson Titen HD 3/4" x 5" Mechanically Galvanized Heavy-Duty Screw Anchor - 5/box

Mfr.: Simpson Strong-Tie
Item #: I094045
Mfr. #: THD75500HMG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $85.20
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The Titen HD heavy-duty screw anchor is designed for use in cracked and uncracked concrete. It features a mechanically galvanized coating for corrosion resistance and is intended for exterior applications and some interior pressure-treated wood sill plate applications.
  • Mechanically galvanized per ASTM B695, Class 65, Type 1
  • For use in cracked and uncracked concrete
  • One-time use only to maintain load capacity
  • Do not use impact wrenches for installation into hollow CMU

Features

  • Mechanically galvanized carbon steel construction
  • 3/4 inch diameter, 5 inch length
  • Drill bit diameter: 3/4 inch
  • Wrench size: 1 1/8 inch
  • Thread length: 4 1/2 inch

Includes

  • 5 anchors per box

Specifications


Model No.THD75500HMGCoatingMaterialMechanically Galvanized / Carbon Steel
Size (in.)3/4 x 5Drill Bit Dia. (in.)3/4
Wrench Size (in.)1 1/8Thread Length (in.)4 1/2
Recommended Fixture Hole Size (in.)7/8 to 15/16Box Qty.5
Carton Qty.20
Products specifications
Anchor Diameter 3/4 in
Anchor Type Screw Anchor
Code Listing ICC-ES ESR-2713; Coating per ASTM B695 Class 55
Country of Origin Varies (subject to change)
Finish / Coating Mechanically Galvanized

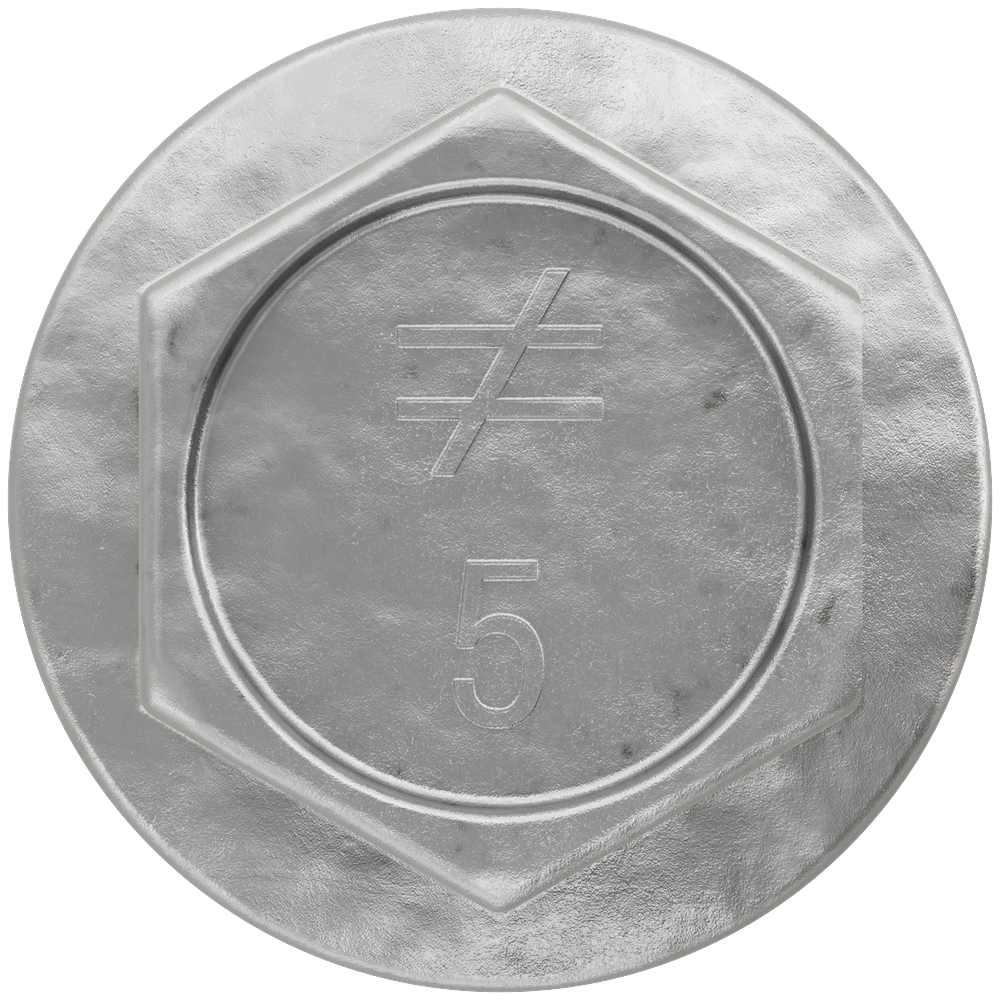

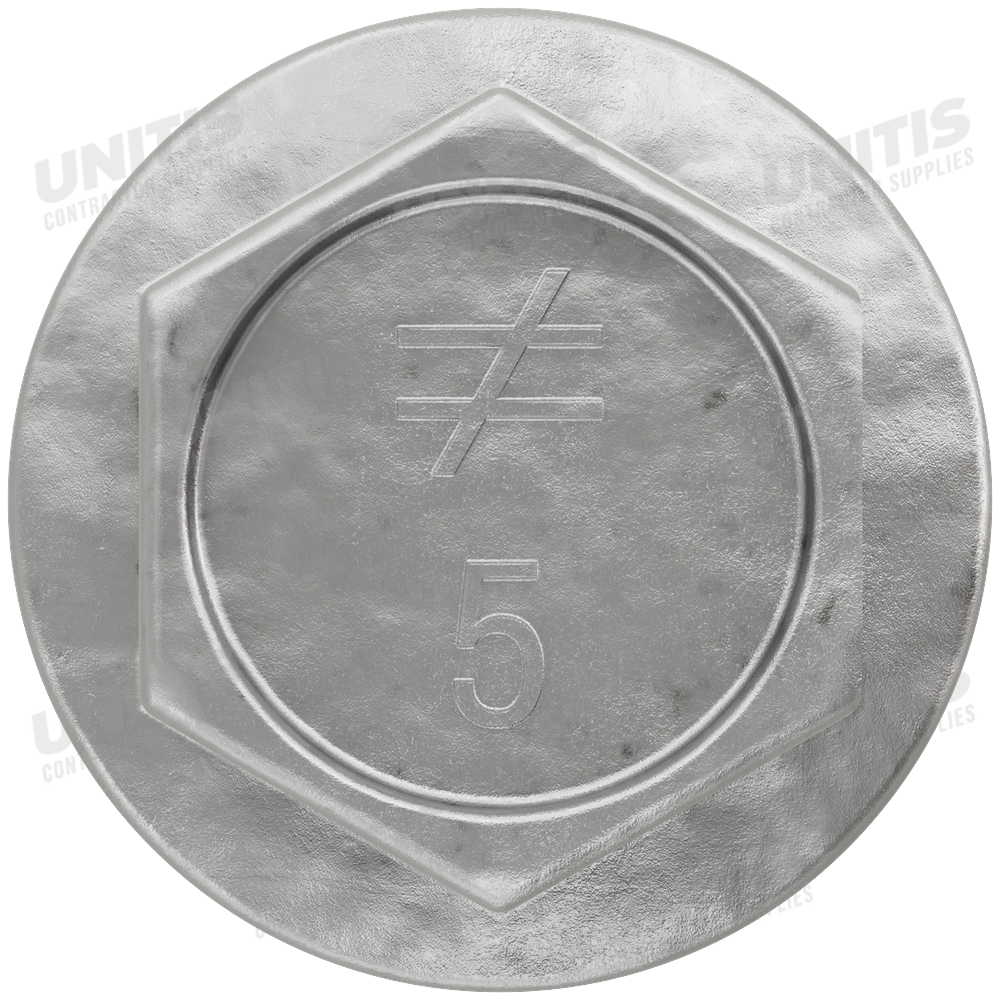

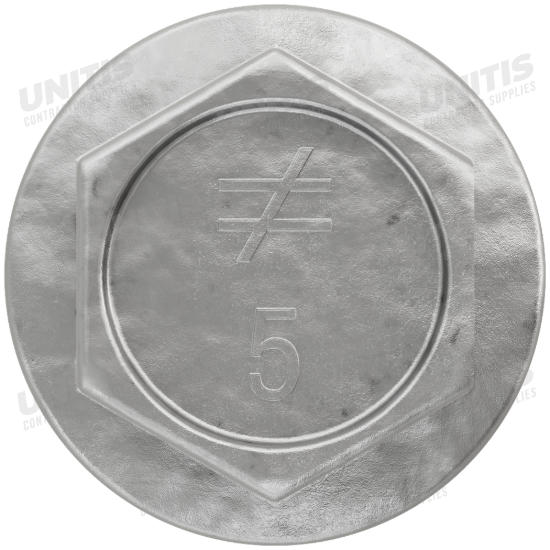

Head Style Hex Head
Material Carbon Steel
Overall Length 5 in
Pack Quantity 5 per box
*
*
*
