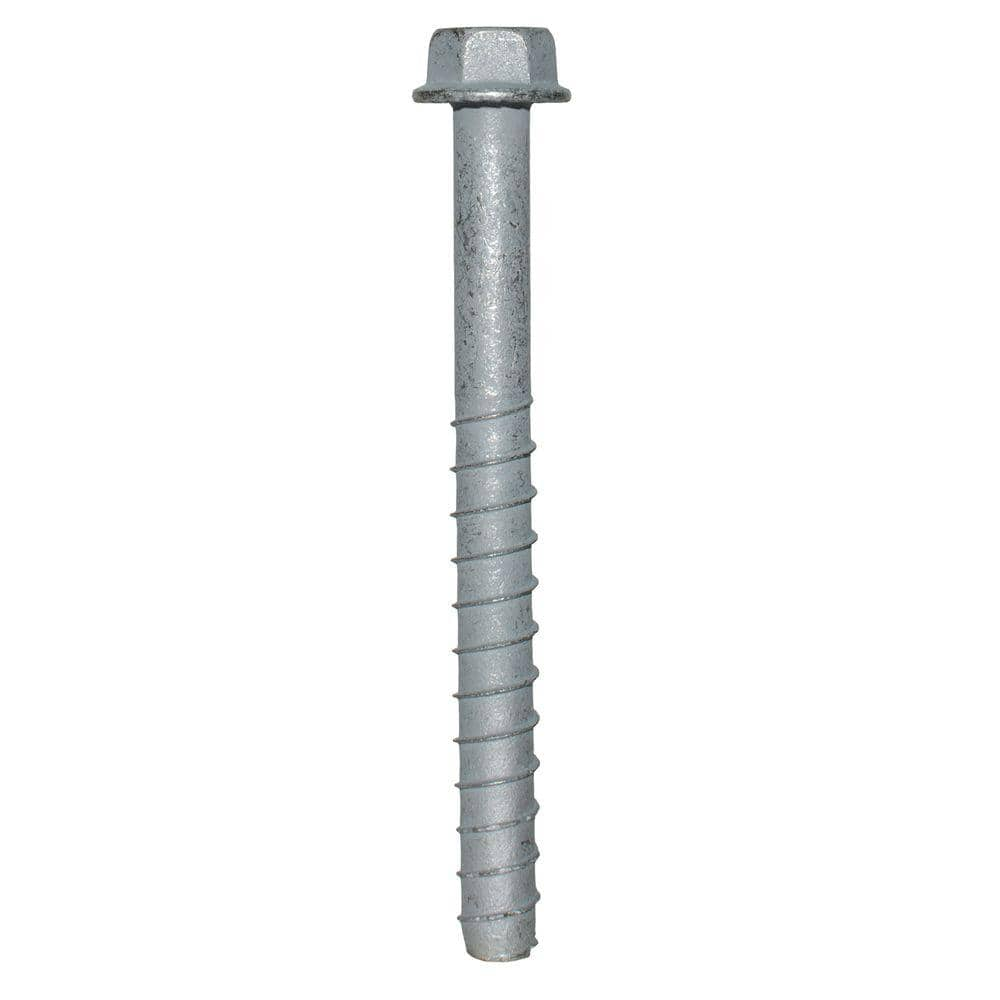

Simpson Titen HD 3/4 X 8 1/2 Screw Anchor

Mfr.: Simpson Strong-Tie
Item #: I094051
Mfr. #: THD75812HMG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $98.31
i h h

Description

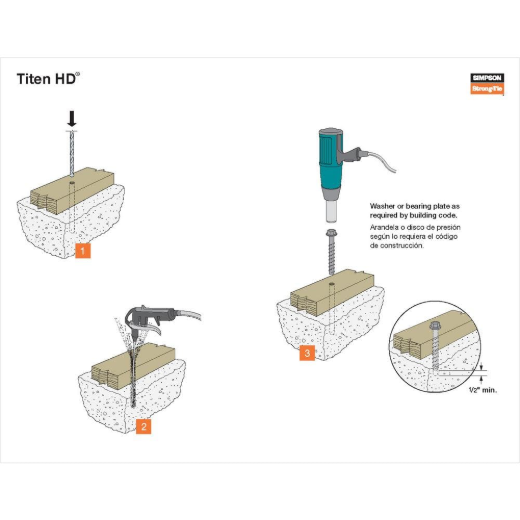

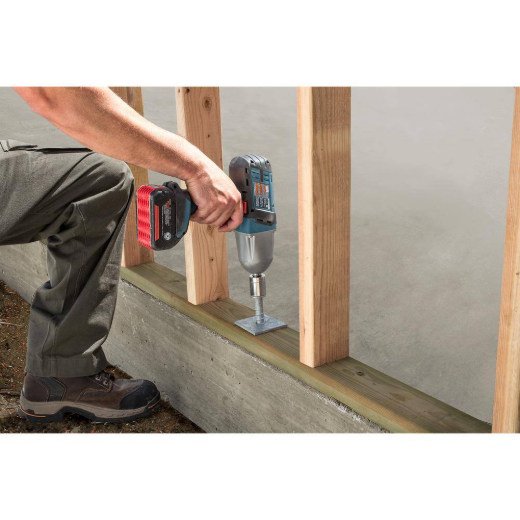

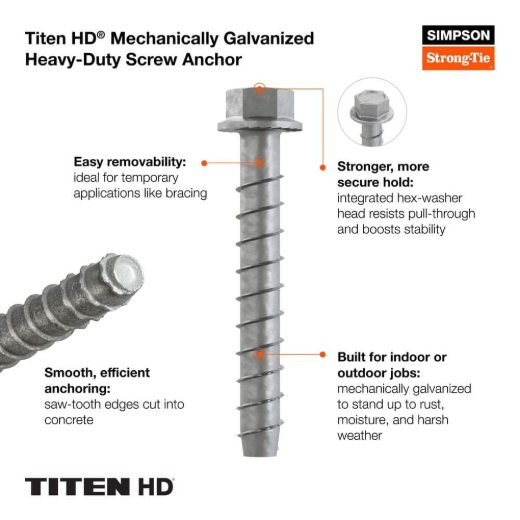

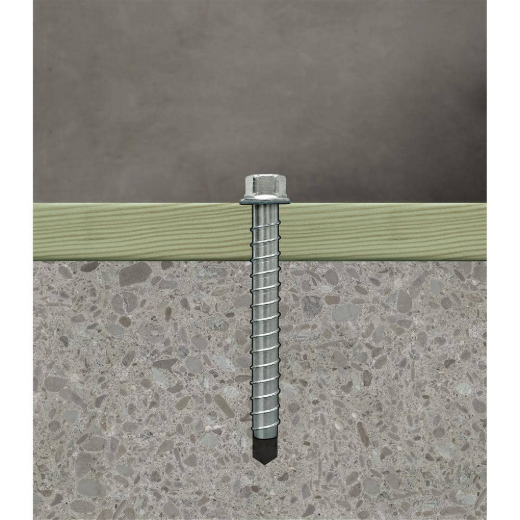

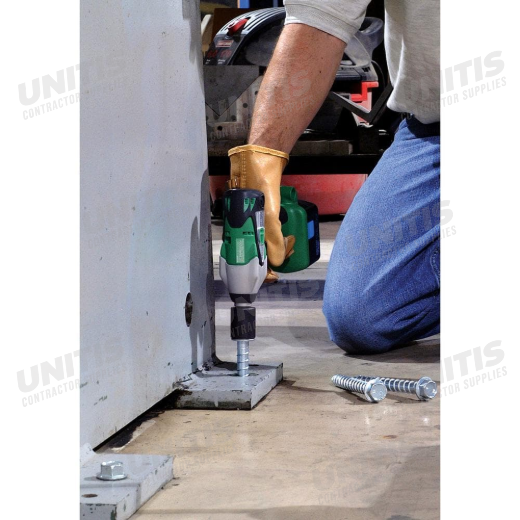

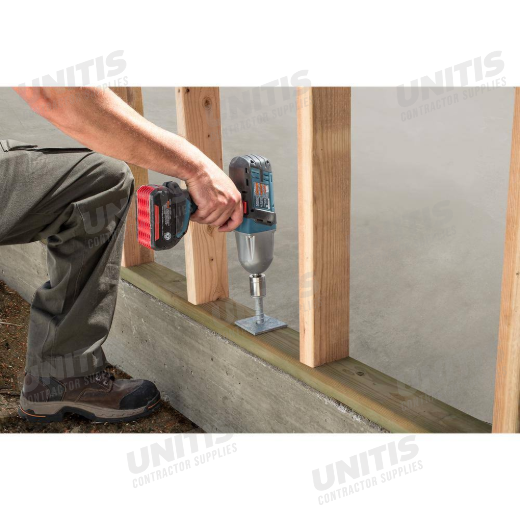

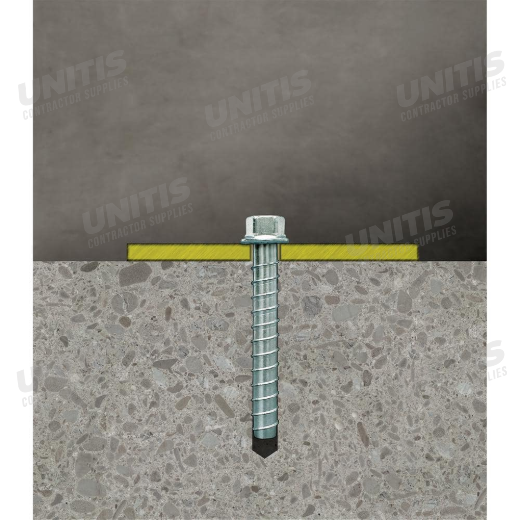

The Simpson Strong-Tie Titen HD is a high-strength screw anchor designed for use in cracked and uncracked concrete, as well as uncracked masonry. Its proprietary heat treatment and mechanically galvanized coating make it suitable for a variety of applications, including sill plates, ledgers, and post bases. The anchor features a thread design that undercuts the base material for efficient load transfer and serrated teeth on the tip to reduce installation torque. It is also easily removable, making it ideal for temporary applications like bracing or formwork.
  • Mechanically Galvanized Finish
  • Code Listed for Exterior Applications

Features

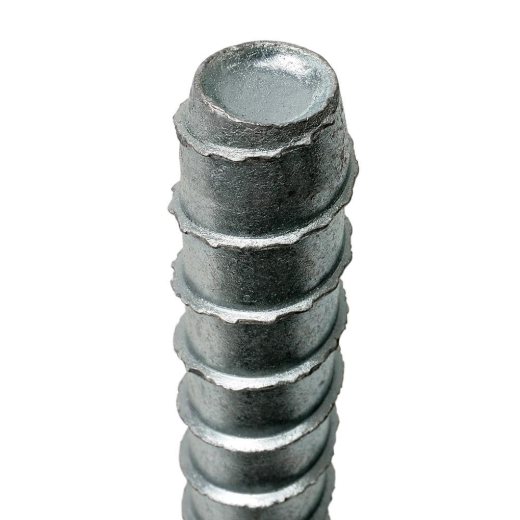

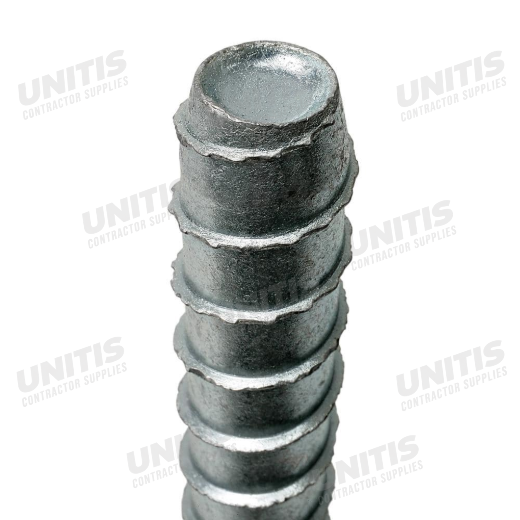

  • Serrated teeth on the tip facilitate cutting and reduce installation torque.

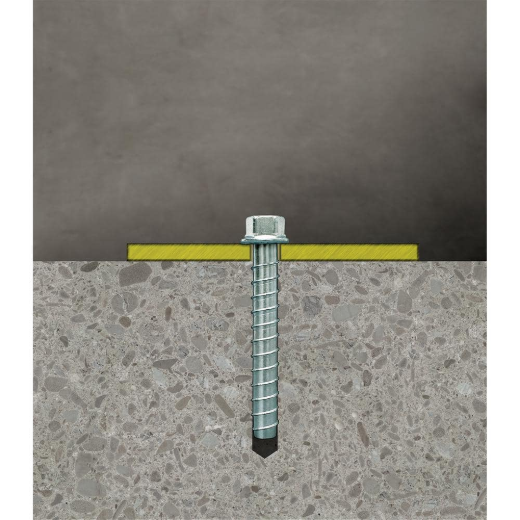

  • Thread design undercuts to efficiently transfer the load to the base material.
  • Specialized heat-treating process creates tip hardness for better cutting without compromising ductility.

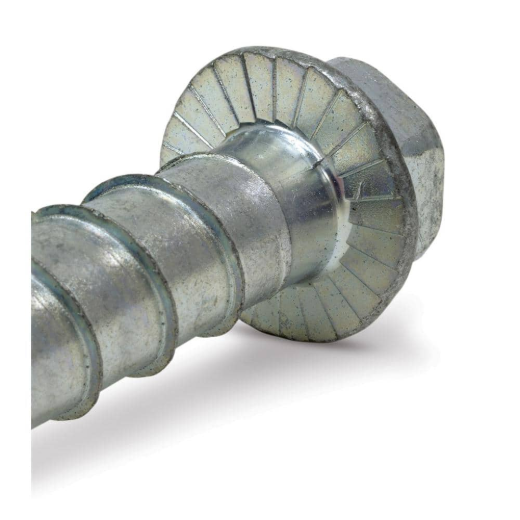

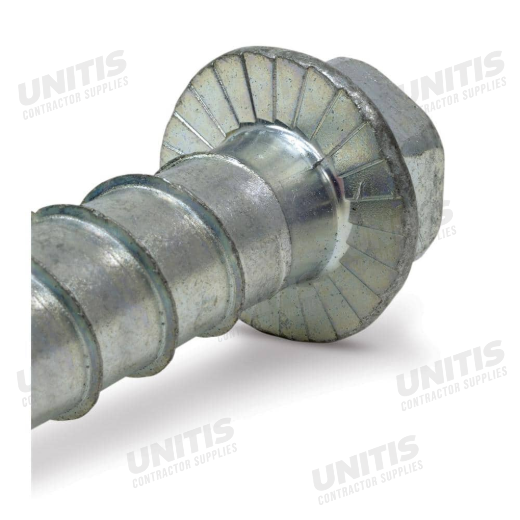

  • Hex washer head requires no separate washer, unless required by code.
  • Qualified for static, wind, and seismic loading conditions.

Includes

  • 5 per box
Products specifications
Diameter 3/4 inch
Length 8-1/2 inch
Finish Mechanically Galvanized
Material Carbon Steel
Drill bit size 3/4 inch
Drive type 1-1/8 inch Hex
Fixture hole size 7/8 inch-15/16 inch
Head type Hex Head
Quantity 5
Thread length 5-1/2 inch
*
*
*
