Simpson Titen HD 3/8" x 3" Type 316 SS Countersunk Head Heavy-Duty Screw Anchor - 25/box

Mfr.: Simpson Strong-Tie
Item #: I050933
Mfr. #: THD37300CS6SS
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $256.74
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

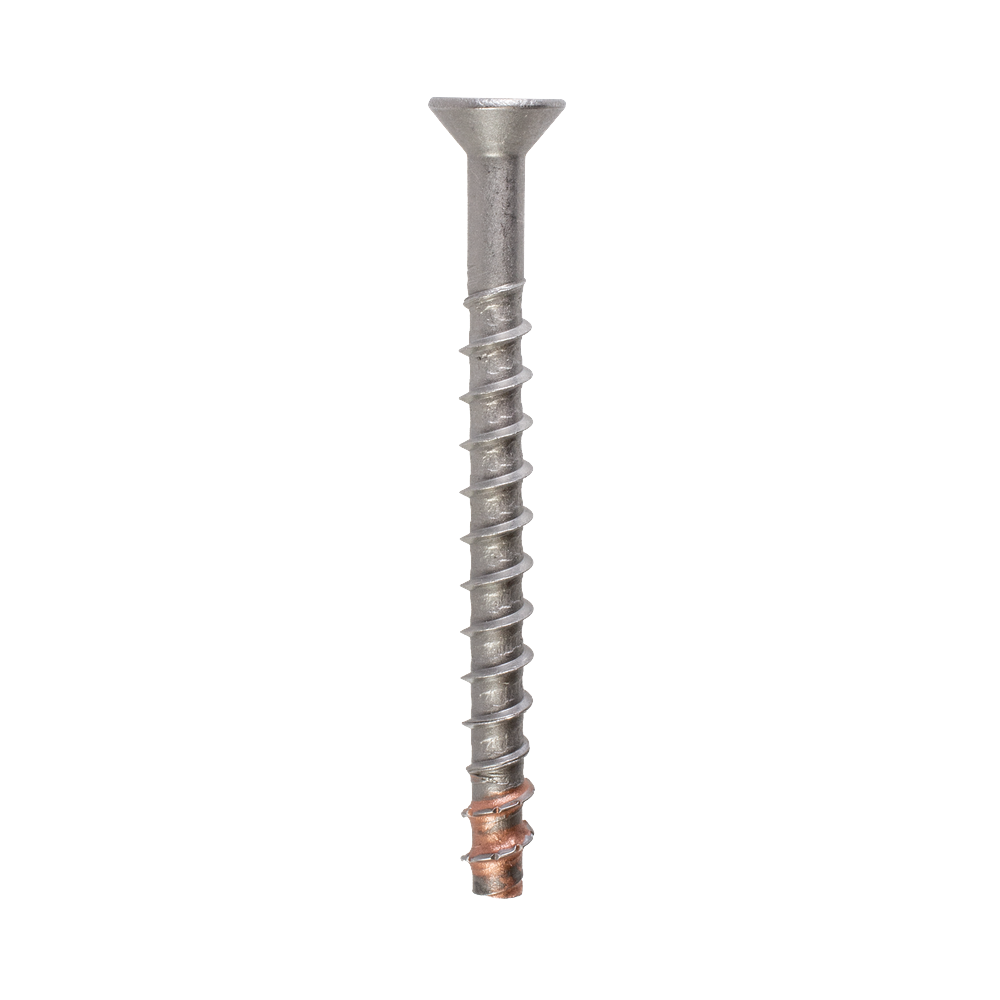

The Titen HD is a high-strength screw anchor for use in cracked and uncracked concrete, as well as masonry. The Type 316 stainless-steel option offers long-lasting corrosion resistance.
  • Tested in accordance with ACI 355.2, AC193 and AC106
  • Qualified for static, wind and seismic loading conditions
  • Standard fractional sizes, hole size same as anchor size
  • No special drill bit required
  • Countersunk head allows flush-mount profile

Features

  • 6-lobe drive reduces driver-bit cam-outs
  • Removable for temporary anchoring
  • Available in 1/4 inch and 3/8 inch diameters
  • Material: Type 316 stainless steel
  • Driver bit included in each box

Includes

  • Driver bit

Specifications


Diameter3/8 inchLength3 inch
Head StyleCountersunkMaterialType 316 Stainless Steel
Drive Type6-lobeRecommended Fixture Hole Size1/2 to 9/16 inch
Min. Hole Depth Overdrill1/4 inchPackage Quantity25 per box
*
*
*
