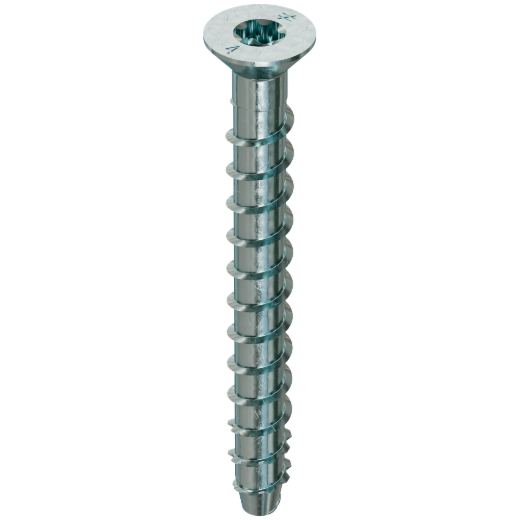

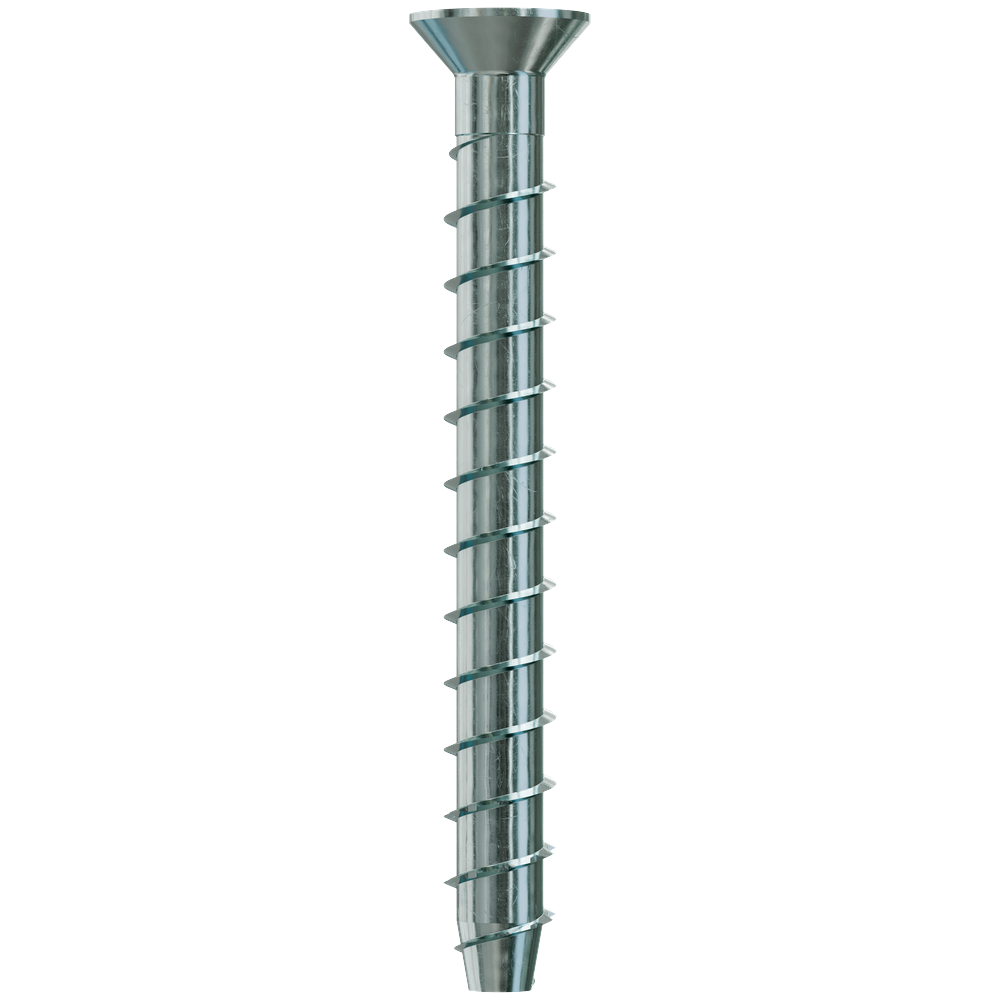

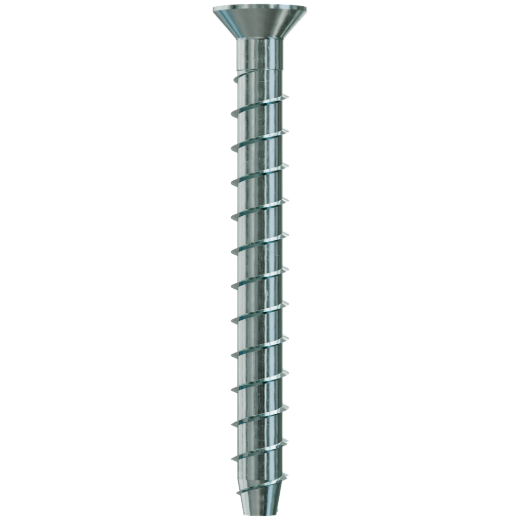

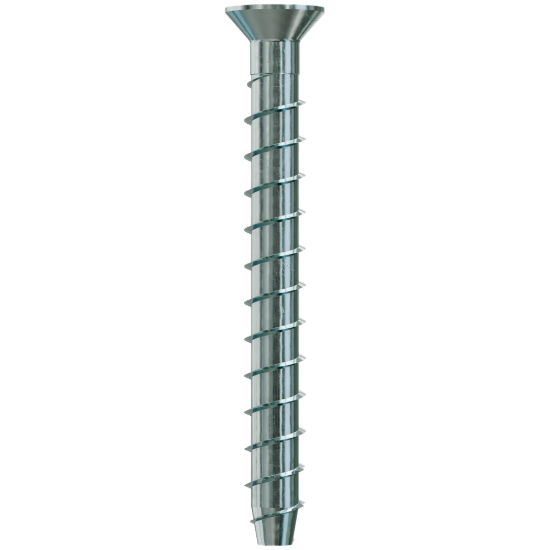

Simpson Titen HD 3/8" x 4" Zinc-Plated Countersunk Head Heavy-Duty Screw Anchor - 50/box

Mfr.: Simpson Strong-Tie
Item #: I093996
Mfr. #: THD37400CS
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $135.11
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The Titen HD is a high-strength screw anchor for use in cracked and uncracked concrete, as well as masonry. It offers low installation torque and outstanding performance, with a countersunk head for flush-mount applications.
  • Tested in accordance with ACI 355.2, AC193 and AC106
  • Qualified for static, wind and seismic loading conditions
  • Standard fractional sizes, hole size same as anchor size
  • No special drill bit required
  • Removable for temporary anchoring

Features

  • Countersunk head style for flush-mount profile
  • 6-lobe drive reduces driver-bit cam-outs
  • Available in 1/4 inch and 3/8 inch diameters
  • Carbon steel with zinc plating
  • Driver bit included in each box

Includes

  • Driver bit

Specifications


Diameter3/8 inchLength4 inch
MaterialCarbon steel, zinc platedHead StyleCountersunk
Drive TypeT50Recommended Fixture Hole Size1/2 to 9/16 inch
Min. Hole Depth Overdrill1/4 inch
*
*
*
