Simpson Titen HD 3/8" x 6" Mechanically Galvanized Heavy-Duty Screw Anchor - 50/box

Mfr.: Simpson Strong-Tie
Item #: I053390
Mfr. #: THD37600HMG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $335.12
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

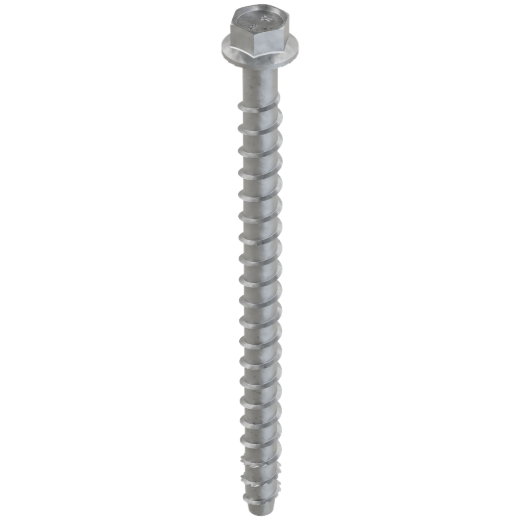

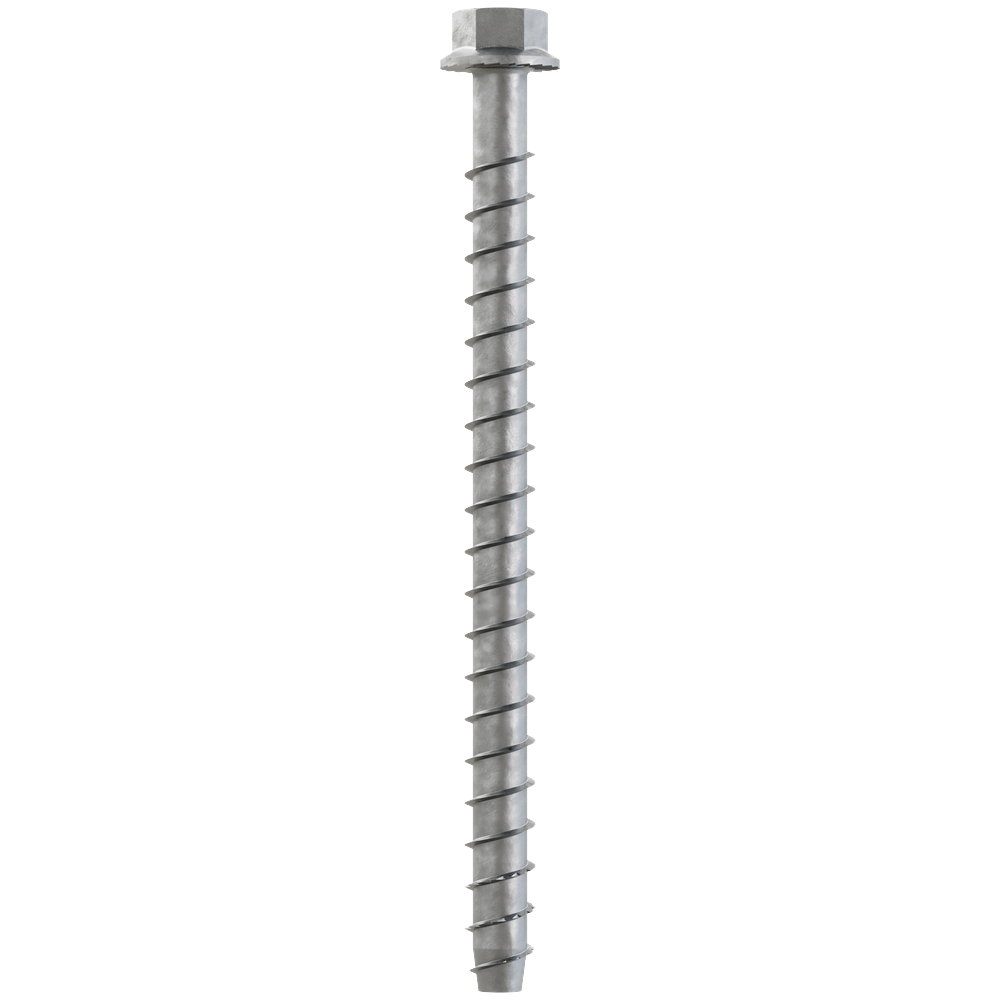

The THD37600HMG is a 3/8 inch x 6 inch heavy-duty screw anchor with mechanically galvanized coating for exterior applications. It is designed for use in concrete and masonry, providing reliable anchorage with a hex-washer head.
  • Mechanically galvanized per ASTM B695, Class 65, Type 1
  • For exterior and interior pressure-treated wood sill plate applications
  • Drill bit diameter: 3/8 inch, wrench size: 9/16 inch
  • Thread length: 5 1/2 inch, recommended fixture hole size: 1/2 inch to 9/16 inch
  • Box quantity: 50, carton quantity: 100

Features

  • Heavy-duty screw anchor for cracked and uncracked concrete

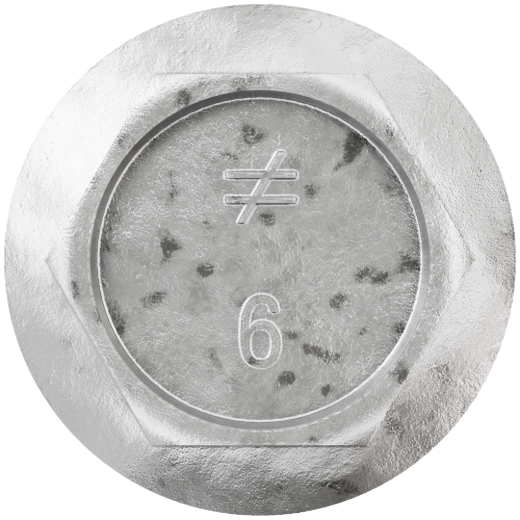

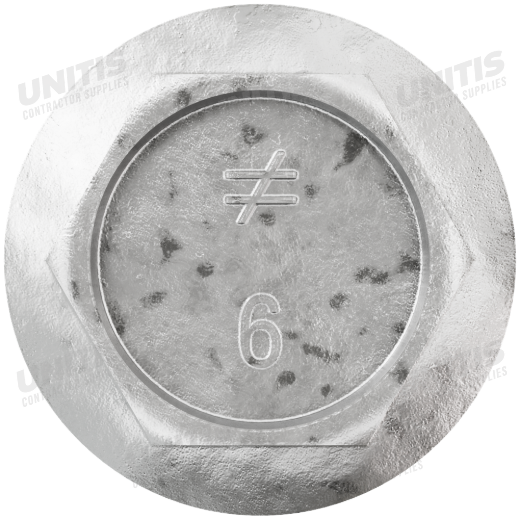

  • Hex-washer head for easy installation
  • Meets ICC-ES ESR-2713 and ESR-1056 for concrete and masonry
  • One-time use only to maintain load capacity
  • Not for use with impact wrenches in hollow CMU

Includes

  • 50 anchors per box

Specifications


Model No.THD37600HMGCoatingMaterialMechanically Galvanized / Carbon Steel
Size (in.)3/8 x 6Drill Bit Dia. (in.)3/8
Wrench Size (in.)9/16Thread Length (in.)5 1/2
Recommended Fixture Hole Size (in.)1/2 to 9/16Box Qty.50
Carton Qty.100
*
*
*
