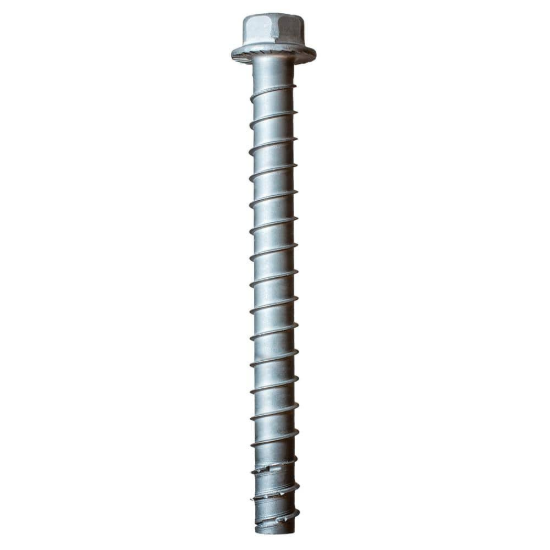

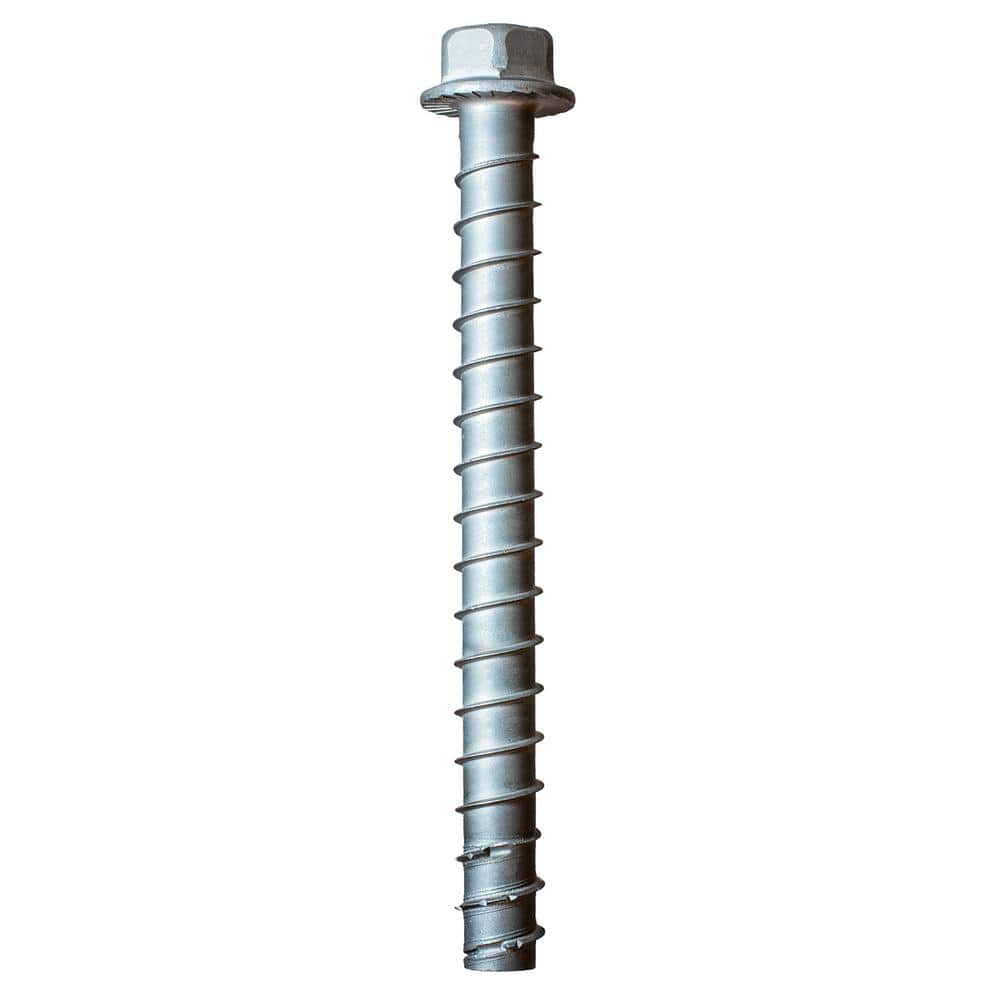

Simpson THD - 5/8" x 5" Titen HD Screw Anchor 304SS

Mfr.: Simpson Strong-Tie
Item #: I094064
Mfr. #: THDB62500H4SS
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $142.49
i h h

Description

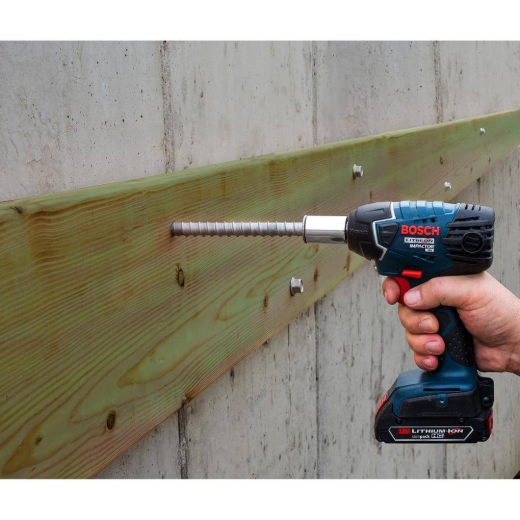

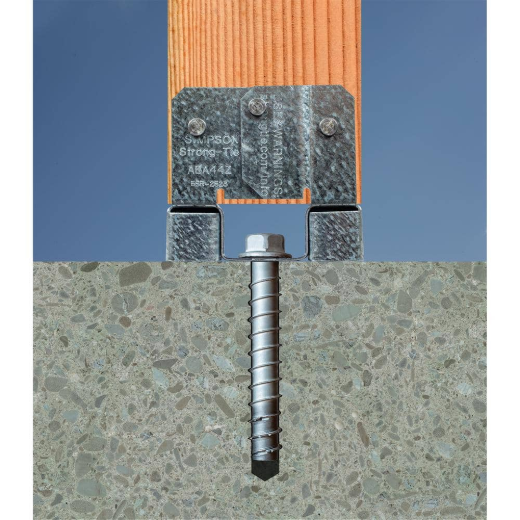

The Simpson Strong-Tie Titen HD 5/8 X 5 304SS is a high-performance, self-undercutting screw anchor designed for use in cracked and uncracked concrete, as well as uncracked masonry. Made from 304 stainless steel, it offers excellent corrosion resistance for environments that may be wet, moist, or damp, and is suitable for various applications including seating, post bases, and ledgers. This anchor provides outstanding performance with low installation torque and is qualified for static, wind, and seismic loading conditions. Its patented thread design facilitates efficient load transfer, while a specialized heat-treatment process ensures durability without compromising ductility.
  • 304 Stainless Steel construction
  • Qualified for static, wind, and seismic loading

Features

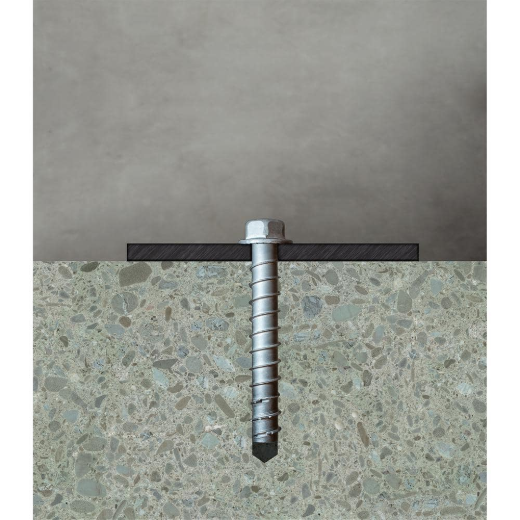

  • Self-undercutting design for secure installation
  • Non-expansion mechanism prevents damage to base material

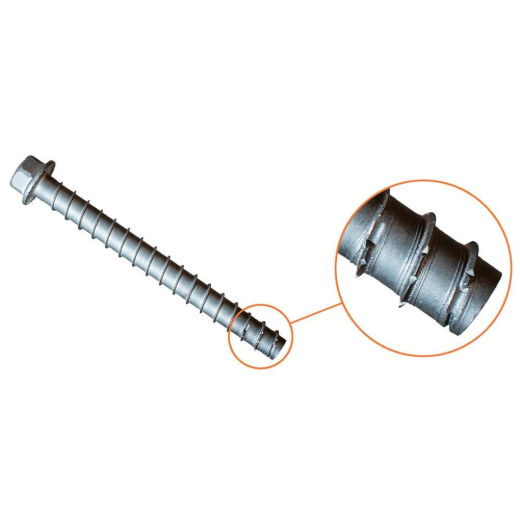

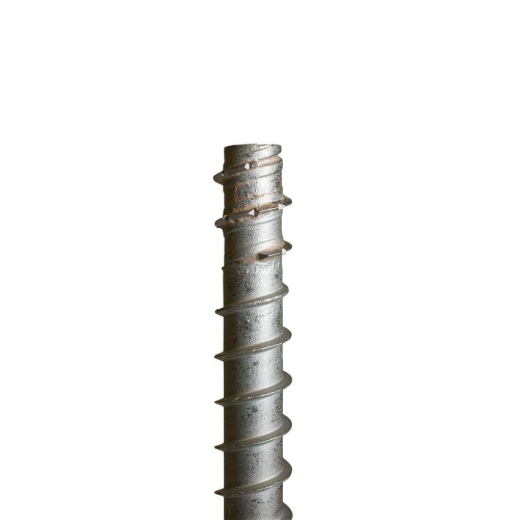

  • Thread design undercuts for efficient load transfer
  • Special heat treatment provides cutting tip hardness without compromising ductility
  • Installs with standard ANSI tolerance drill bits
  • Hex-washer head does not require a separate washer (unless code requires)

Includes

  • 10 x 5/8 inch x 5 inch Titen HD Screw Anchors
Products specifications
Anchor Diameter 5/8 in
Anchor Type Screw Anchor
Code Listing ICC-ES ESR-2713; Body per ASTM A276 Type 304
Country of Origin Varies (subject to change)
Finish / Coating Type 304 Stainless Steel
Head Style Hex Head
Material Type 304 Stainless Steel
Overall Length 5 in
Pack Quantity 1 per pack
*
*
*
