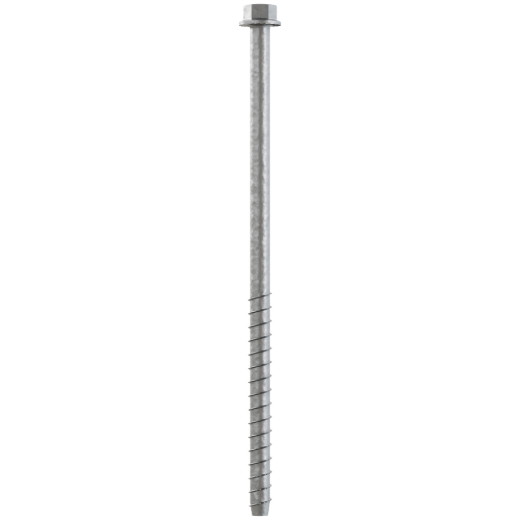

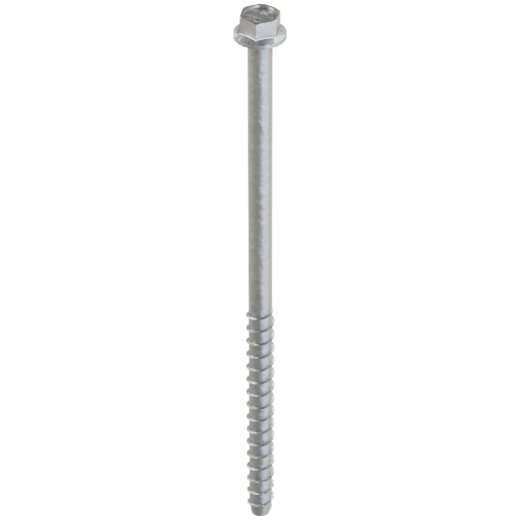

Simpson Titen HD 1/2" x 12" Mechanically Galvanized Heavy-Duty Screw Anchor - 5/box

Mfr.: Simpson Strong-Tie
Item #: I094011
Mfr. #: THD501200HMG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $119.30
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The Titen HD heavy-duty screw anchor is designed for use in cracked and uncracked concrete. It features a mechanically galvanized coating for corrosion resistance.
  • Mechanically galvanized per ASTM B695, Class 65, Type 1
  • Size: 1/2 inch diameter x 12 inch length
  • Drill bit diameter: 1/2 inch
  • Wrench size: 3/4 inch
  • Box quantity: 5

Features

  • Mechanically galvanized coating for exterior applications
  • Thread length: 5-1/2 inch
  • Recommended fixture hole size: 5/8 inch to 11/16 inch
  • Carbon steel material
  • Complies with ICC-ES ESR-2713 for concrete

Includes

  • 5 anchors per box

Specifications


Model No.THD501200HMGCoatingMaterialMechanically Galvanized / Carbon Steel
Size (in.)1/2 x 12Drill Bit Dia. (in.)1/2
Wrench Size (in.)3/4Thread Length (in.)5-1/2
Recommended Fixture Hole Size (in.)5/8 to 11/16Box Qty.5
Carton Qty.20
*
*
*
