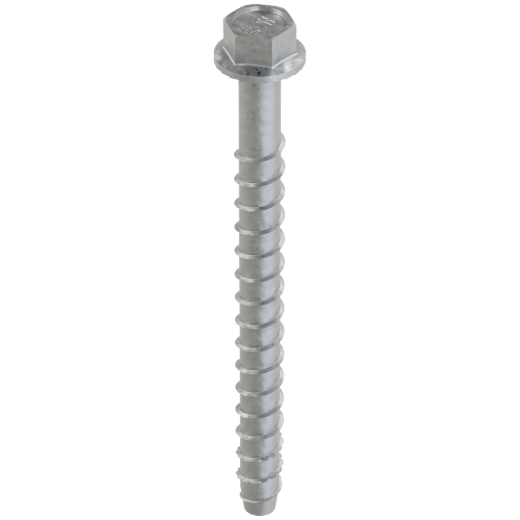

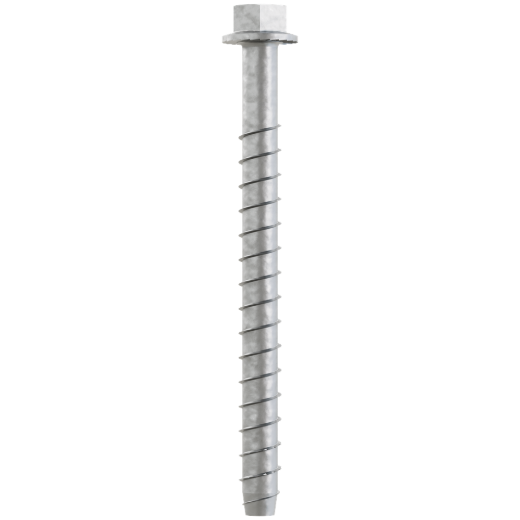

Simpson Titen HD 1/2" x 6-1/2" Mechanically Galvanized Heavy-Duty Screw Anchor - 20/box

Mfr.: Simpson Strong-Tie
Item #: I094033
Mfr. #: THD50612HMG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $203.90
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

Mechanically galvanized heavy-duty screw anchor for concrete and masonry. Designed for exterior applications and some interior pressure-treated wood sill plate applications.
  • Size: 1/2 inch x 6-1/2 inch
  • Drill bit diameter: 1/2 inch
  • Wrench size: 3/4 inch
  • Thread length: 5-1/2 inch
  • Box quantity: 20

Features

  • Mechanically galvanized coating meets ASTM B695, Class 65, Type 1
  • Intended for exterior and some interior pressure-treated wood sill plate applications
  • One-time use only to avoid thread wear
  • Do not use impact wrenches for installation into hollow CMU
  • Oversized holes reduce load capacity

Specifications


Model No.THD50612HMGCoatingMaterialMechanically Galvanized / Carbon Steel
Size (in.)1/2 x 6 1/2Drill Bit Dia. (in.)1/2
Wrench Size (in.)3/4Thread Length (in.)5 1/2
Recommended Fixture Hole Size (in.)5/8 to 11/16Box Qty.20
Carton Qty.40
*
*
*
