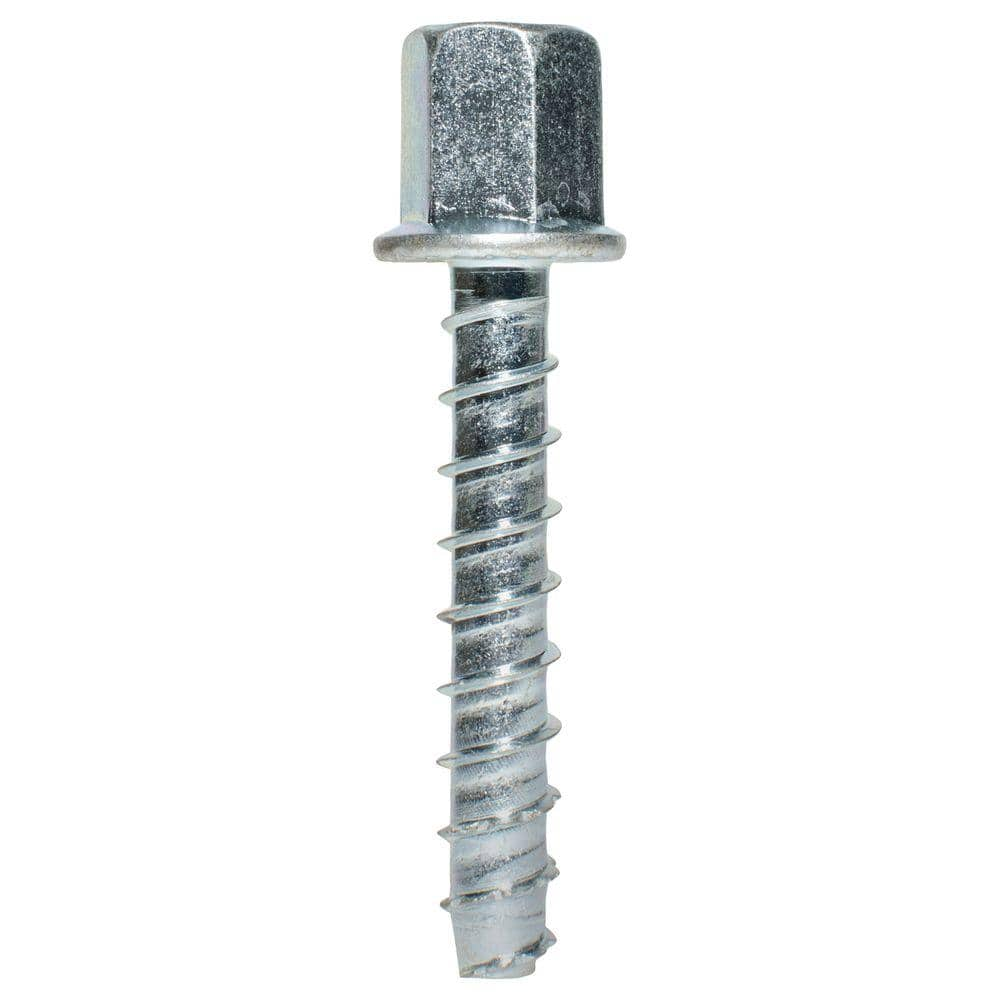

Simpson Titen HD Threaded Rod Hanger

Mfr.: Simpson Strong-Tie
Item #: I091964
Mfr. #: THD50234RH
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $124.21
i h h

Description

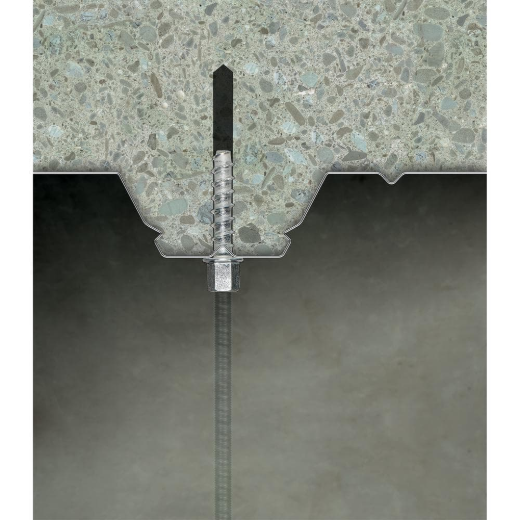

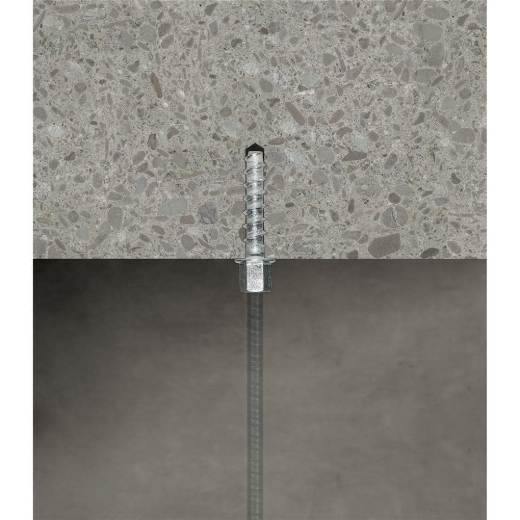

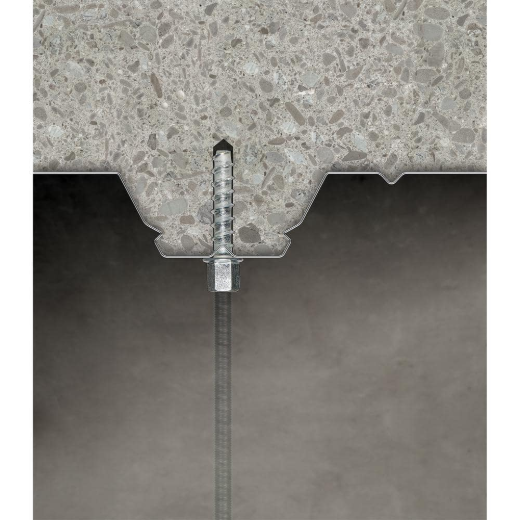

The Simpson Titen HD threaded rod hanger is a high-strength screw anchor designed to efficiently suspend threaded rod from concrete slabs, beams, or concrete over metal decks. This anchor facilitates the hanging of pipes, cable trays, and various HVAC or mechanical equipment with ease. It offers low installation torque and requires no secondary setting, ensuring reliable performance in both cracked and uncracked concrete, even under seismic loading conditions.
  • Thread design undercuts for efficient load transfer
  • Specialized heat-treating for tip hardness and body ductility

Features

  • Serrated cutting teeth enable quick and easy installation
  • Code listed for cracked and uncracked concrete applications (per ICC-ES ESR-2713)

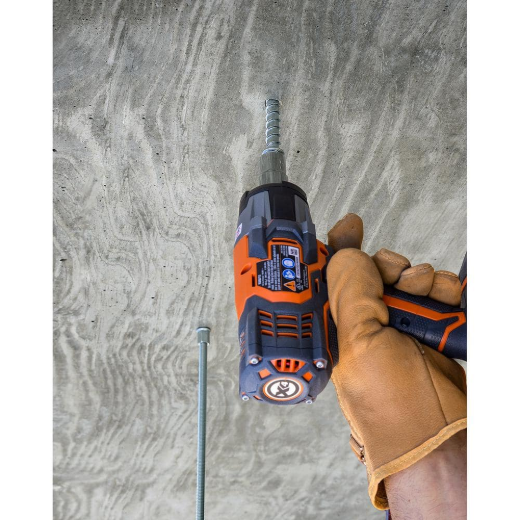

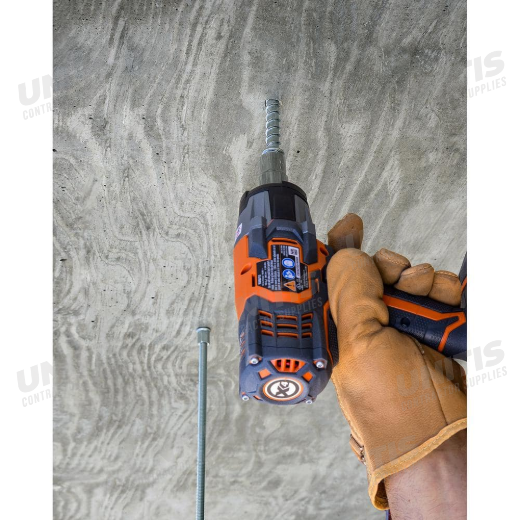

  • Installs using standard-sized sockets without special tools
Products specifications
Model THD50234RH
Anchor Diameter 3/8 inch
Anchor Length 2-3/4 inch
Rod Size Capacity 1/2 inch
Material Carbon Steel
Finish Zinc Plated
Drill Bit Diameter 3/8 inch
Drive Type 11/16 inch Hex
*
*
*
